North Vic Parts Engine Internals Engine Rebuild Kits
High Performance Engine Rebuild Kit | Toyota 1HZ
- Fits LandCruiser 100 Series
- Fits LandCruiser 80 Series
- Fits LandCruiser 70 Series
- Fits 1HZ
$2,434.00
Including GST
How would you like to pay?
These are machined to your engine, so we confirm your sizes with you before the kit ships. A deposit holds your kit and your place in the queue. If we can’t supply what you need, the deposit is refunded in full.
Zip and humm are available over the phone: (07) 5619 7869

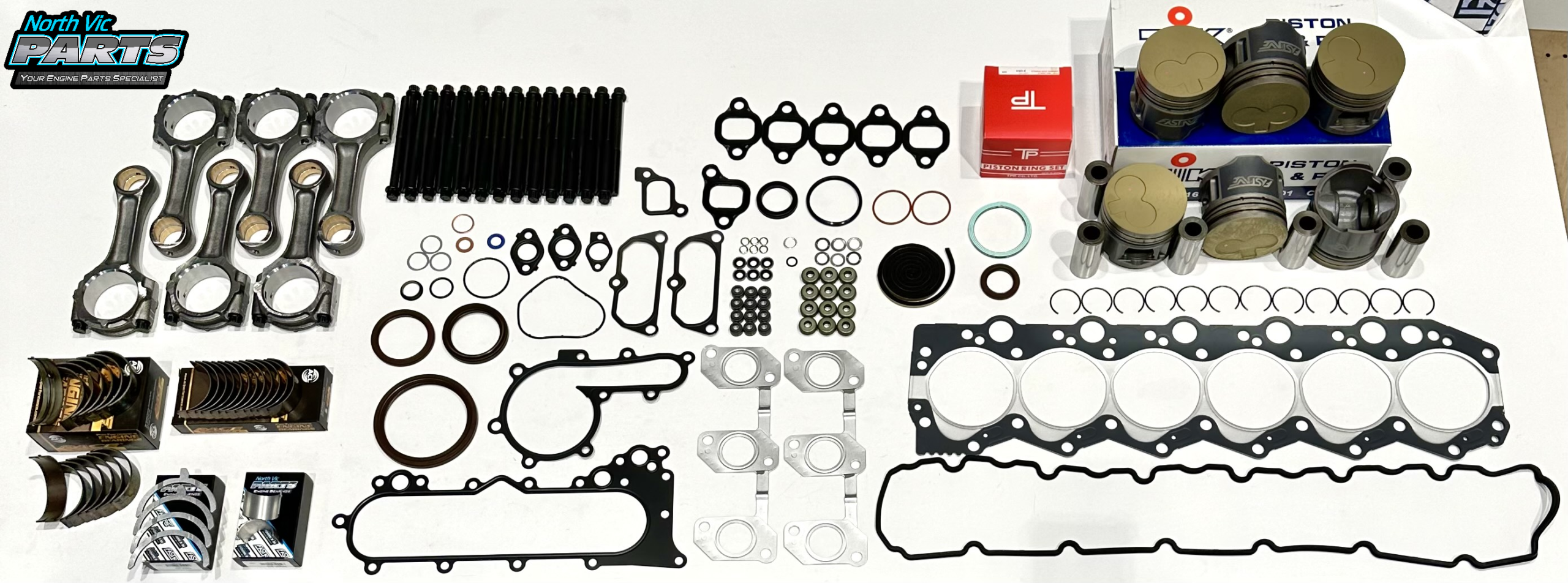

What's in this kit
- 1 x Ceramic coated FAST piston set with oil cooled piston crowns
- 1 x TP ring set
- 1 x KP VRS gasket set
- 1 x MLS head gasket
- 1 x KP lower gasket set
- 1 x ACL RACE main bearing set
- 1 x ACL RACE conrod bearing set
- 1 x Thrust washer set
- 1 x Camshaft bearing set
- 1 x Head bolt set
- 6 x 1HD-T Conrods
Suits
- Toyota 1HZ engines with a turbo: LandCruiser HZJ75, HZJ79, HZJ80, HZJ100 and HZJ105
- FAST turbo pistons with oil-cooled crowns, on the larger 1HD-T gudgeon pin, with 1HD-T conrods.
- Above 18 psi boost the supplier recommends ARP head studs (the figure varies with the set-up).
Sizes offered
Piston & Ring Size: STD, 0.50, 1.00 Main Bearing Size: STD, 0.025, 0.25 Conrod Bearing Size: STD, 0.025, 0.25
STD is standard size. On bearings the number is how far the crank was ground under standard; on pistons and rings it is how far the bores were bored over standard. Your machine shop gives you these numbers. What the sizes mean
Need help choosing a size? Text us your engine number and we will help you pick. Text 0485 885 957
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| Toyota | — | — | — | 1HZ |
| Toyota | LandCruiser | 100 Series | Mar 1998 – Nov 2007 | 1HZ |
| Toyota | LandCruiser | 80 Series | Mar 1990 – Feb 1998 | 1HZ |
| Toyota | LandCruiser | 70 Series | Mar 1990 – Mar 2007 | 1HZ |
A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Check my fitmentor call(07) 5619 7869or text0485 885 957oremail us
This high-performance engine rebuild kit bundles the major components needed to fully recondition the Toyota 1HZ for strengthened, higher-output service.
Description
The high performance rebuild kit for the Toyota 1HZ, the 4.2-litre inline-six diesel in the LandCruiser 70, 75, 78 and 79 Series, the 80 and 105 Series wagons, and the Coaster. Kits include pistons, rings, bearings and a full gasket set. The supplier specifies this kit for 1HZ engines with a turbo: FAST turbo pistons with oil-cooled crowns and 1HD-T conrods.
Piston and ring, main bearing and conrod bearing sizes are all selectable, so if the block has been machined, order to the measured size rather than guessing. See our guide to bearing and piston sizes, and the rest of our 1HZ parts.
Sizes offered: Piston and ring size: STD, 0.50, 1.00. Main bearing size: STD, 0.025, 0.25. Conrod bearing size: STD, 0.025, 0.25.
Fitted in-store at our Oxley (Brisbane) and Warana (Sunshine Coast) workshops, where we carry out full engine rebuilds, or shipped to you.
Not sure which one fits? Send us your rego or VIN and we’ll confirm the exact part. Use the part enquiry form or call (07) 5619 7869. Happy to check before or after you order.
Warranty: 12 months on parts from the date of purchase or installation, whichever is later (clause 7.1(b) of our terms and conditions).
Returns: 30 days to change your mind. Parts need to be unused and in their original packaging; a 15% restocking fee applies and return postage is at your cost. If a part covered by our Fitment Guarantee doesn’t fit, we pay the return freight both ways and there’s no restocking fee. Full returns policy.
Damaged or faulty: please check the goods before you sign the delivery note and tell us straight away if anything arrived damaged in transit. If a part is faulty, contact us and we’ll sort it out. Nothing here limits your rights under Australian Consumer Law.
Specifications
| Brand | North Vic Parts |
|---|---|
| Piston & Ring Size options | STD, 0.50, 1.00 |
| Main Bearing Size options | STD, 0.025, 0.25 |
| Conrod Bearing Size options | STD, 0.025, 0.25 |
| SKU | ERKTOY1HZTHP-1 |
| Shipping weight | 25 kg |
| Shipping dimensions | N/A |
