Wiseco Professional VW 1.8L 8V Piston Set of 4 – 83.00 mm Bore – 33.50 mm CH, 0.00 CC
$1,269.07
or 4 interest-free payments of $317.27 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
Bore 83.00 mm · Compression height 33.50 mm · Volume 0.00 cc · Set of 4 · rings included · wrist pins included
Available to order – usually ships in 2-3 weeks
Check fitment by rego or VINFast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| Volkswagen | — | — | — | — |
A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description

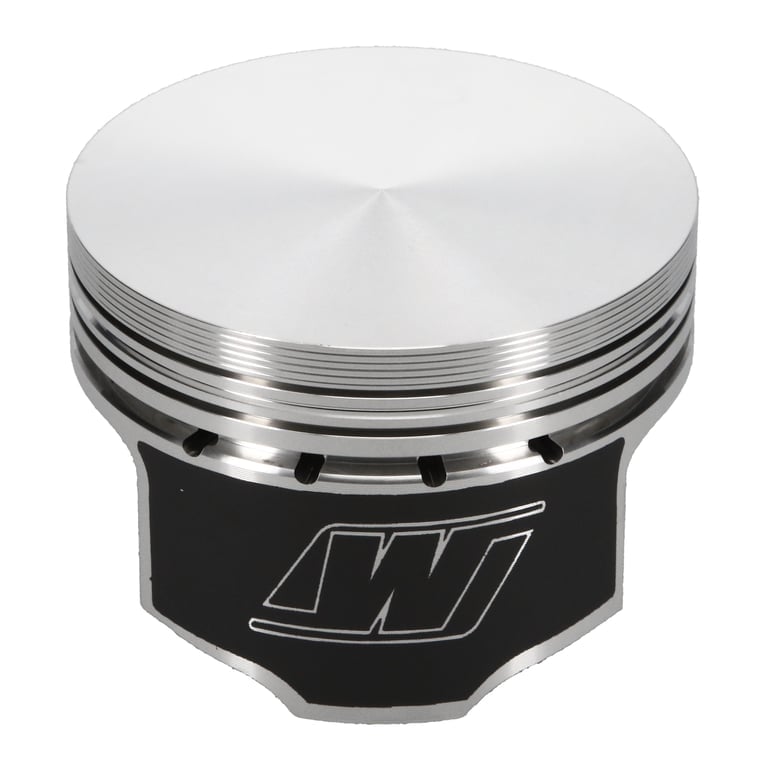

Set of 4 Wiseco Professional Series forged pistons for the VW 1.8L 8V: 83.00 mm (3.268 in) bore, 33.50 mm (1.319 in) compression height and 0.00 cc crown volume. Rings and wrist pins are included.
What’s in the box
- 4 forged pistons
- 4 wrist pins (20.00 mm / 0.787 in diameter, 5115 steel, floating)
- Piston ring set
Matching it to your VW 1.8L 8V
Crown volume is quoted as 0.00 cc. Work out the compression ratio for your combination (chamber volume, gasket bore and thickness, deck clearance) before you order.
The bore size is the finished bore these pistons are made for, so have the block measured and then bored and honed to suit, with piston-to-wall clearance set to Wiseco’s figure for part K512M83.
Material: 4032 aluminium, the high-silicon alloy that grows less with heat than 2618 and suits street and mild performance engines.
Forging: full-round design, with a coated skirt.
Ring grooves: 1.0 mm top, 1.2 mm second and 2.8 mm oil.
Specifications
| Bore Diameter | 83.00 mm |
|---|---|
| Compression Height | 33.50 mm |
| Forging Type | Full Round |
| Oil Ring Thickness | 2.8 mm |
| Piston Material | 4032 |
| Piston Quantity | 4 |
| Piston Volume | 0.00 cc |
| Ring Set Included | Yes |
| Second Compression Ring Thickness | 1.2 mm |
| Skirt Coating | Yes |
| Top Compression Ring Thickness | 1.0 mm |
| Wrist Pin Included | Yes |
| Wrist Pin Material | 5115 |
| Wrist Pin Outer Diameter | 0.787 in |
| Wrist Pin Style | Floating |
Boostline conrods listed for this engine family: Boostline Connecting Rod Kit | VW 1.8T 144mm | ARP2000, Boostline Connecting Rod Kit | VW 2.0T TSI 144mm 21pin | ARP2000, Boostline Connecting Rod Kit | VW 2.0T TSI 144mm 22pin | ARP2000. Match the rod length to the pistons before you order.
More: VW & Audi forged pistons · all performance pistons · Wiseco
Wiseco part number: K512M83
