Boostline Connecting Rod Kit | VW 1.8T 144mm | ARP2000
$1,708.92
or 4 interest-free payments of $427.23 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
Centre-to-centre length 144.00 mm · Big end bore 50.610 mm · Pin end bore 20.00 mm · Bolt diameter 3/8 in
Available to order – usually ships in 2-3 weeks
Check fitment by rego or VINFast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| Volkswagen | — | — | — | — |
A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description

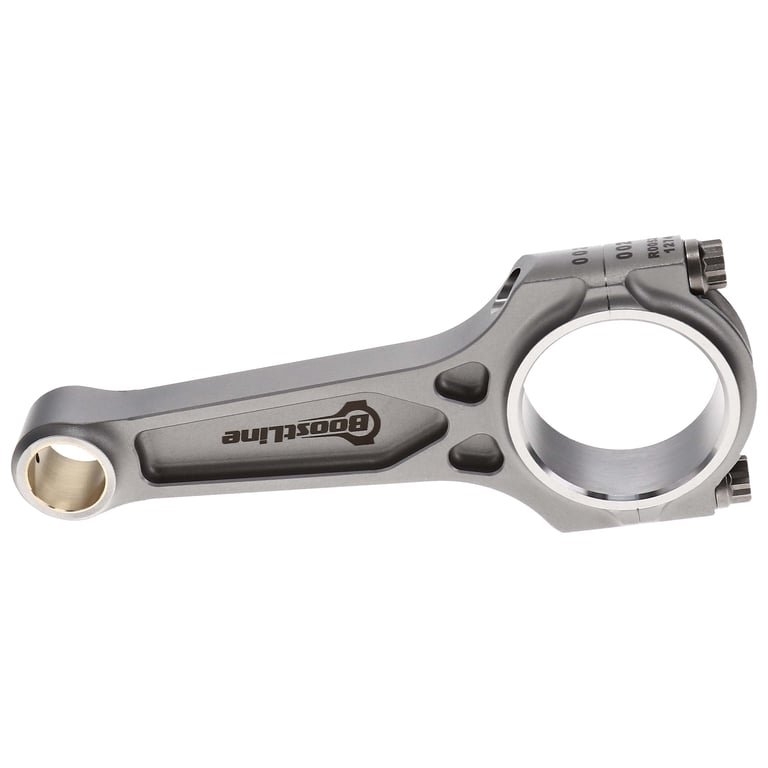

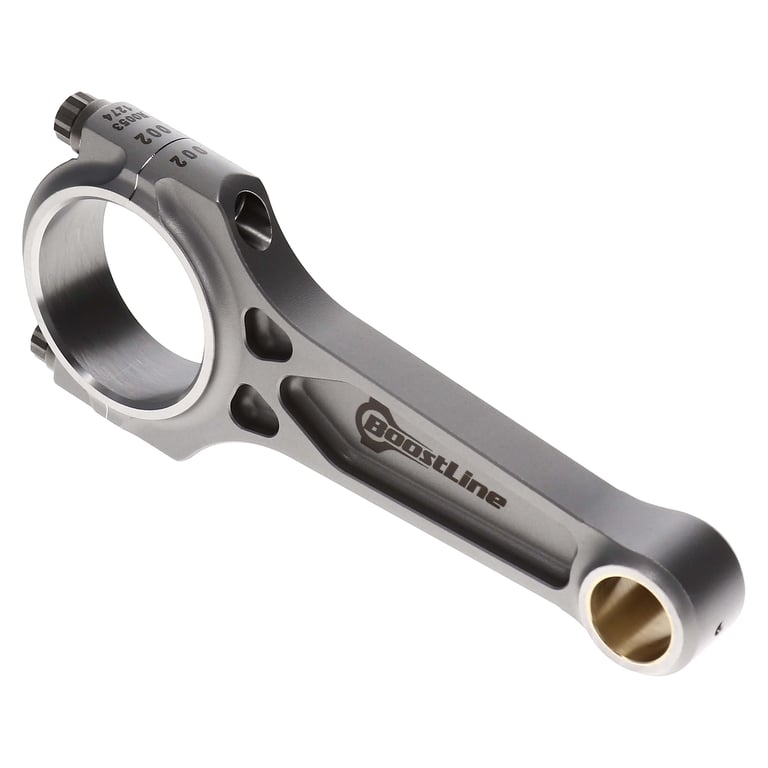

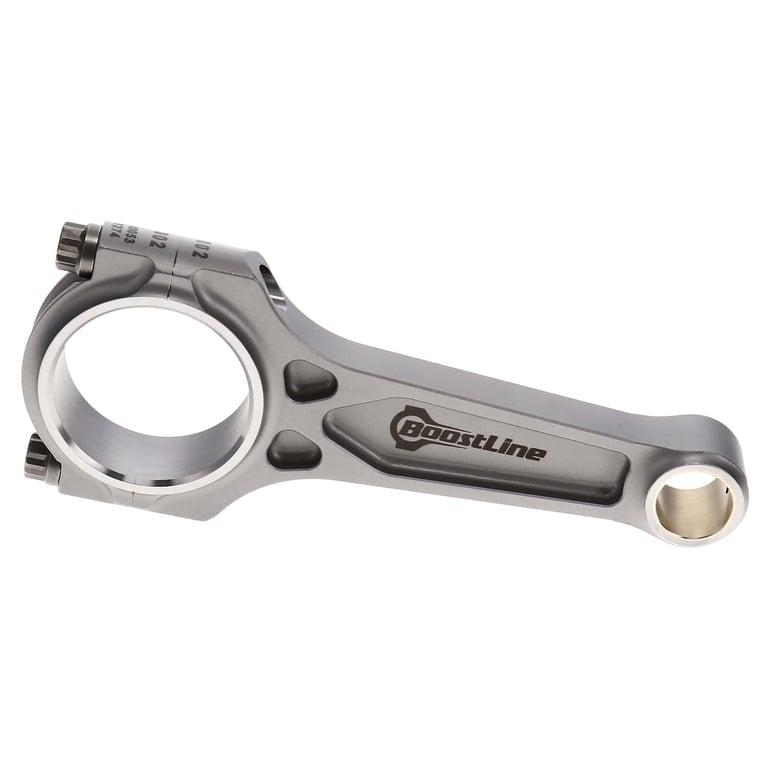

Boostline forged connecting rods for the VW 1.8T: 144.00 mm (5.669 in) centre-to-centre, forged 4340 steel and I-beam design, fitted with ARP 2000 rod bolts (3/8 in).
What’s in the box

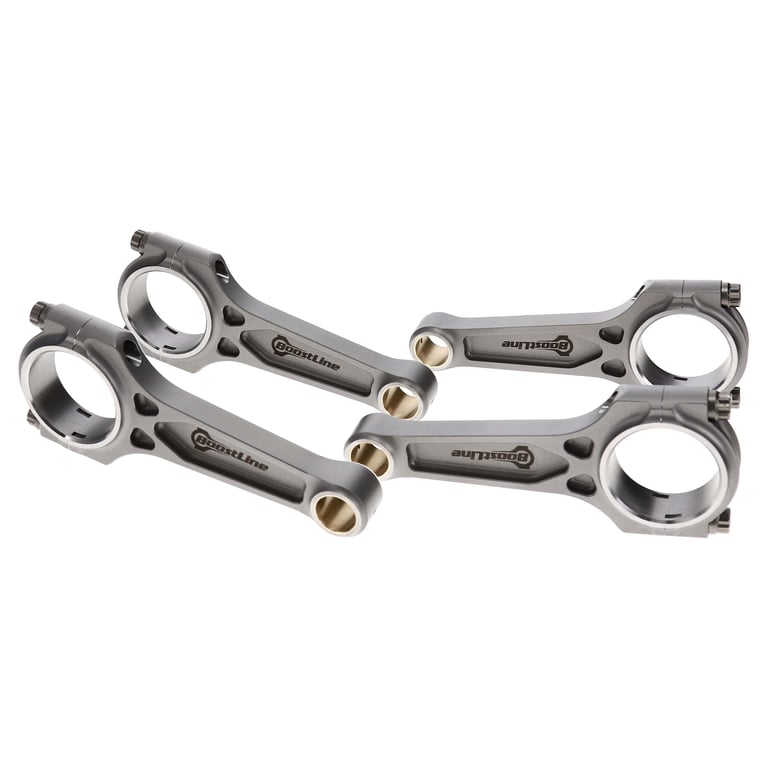

- Boostline connecting rod set (part VW5669-787)
- ARP 2000 rod bolts, part BT61501-S
- Bronze pin-end bushings
- CMM inspection card with the measured dimensions
Matching them to your VW 1.8T
Key dimensions: big-end bore 50.610 mm (1.993 in); big-end width 24.94 mm (0.982 in); crank journal 47.80 mm (1.882 in); pin-end bore 20.00 mm (0.787 in); pin bushing width 24.94 mm (0.982 in); average weight 636 g.
Check the centre-to-centre length against the rod length your pistons are designed for, the big-end bore and width against your crank, and the pin end against your wrist pin diameter before you order.
Specifications
| Average Gram Weight | 636 gr |
|---|---|
| Big End Bore | 50.610 mm |
| Big End Width | 24.94 mm |
| Bolt Diameter | 3/8 in |
| Bolt Part Number | BT61501-S |
| Centre-to-centre length | 144.00 mm |
| Connecting Rod Journal Diameter | 47.80 mm |
| Connecting Rod Material | Forged 4340 Steel |
| Connecting Rod Type | I-Beam |
| Journal Size | 47.80 mm |
| Main Bearing Bore Diameter | 50.610 mm |
| Material | Forged 4340 Steel |
| Pin End Bore | 20.00 mm |
| Rod Type | I-Beam |
| Wrist Pin Journal Bushing Width | 24.94 mm |
More: all Boostline performance conrods · VW & Audi forged pistons · Boostline
Boostline part number: VW5669-787
