Wiseco Professional Nissan VR38DETT Piston Set of 6 – 95.50 mm Bore – 30.74 mm CH, -7.00 CC | K694M955-3D
$2,577.15
Zip and humm are available over the phone: (07) 5619 7869
Bore 95.50 mm · Compression height 30.74 mm · Volume -7.00 cc · Set of 6 · rings included · wrist pins included
Available to order – usually ships in 2-3 weeks
Check fitment by rego or VINFast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| Nissan | — | — | — | — |
A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description

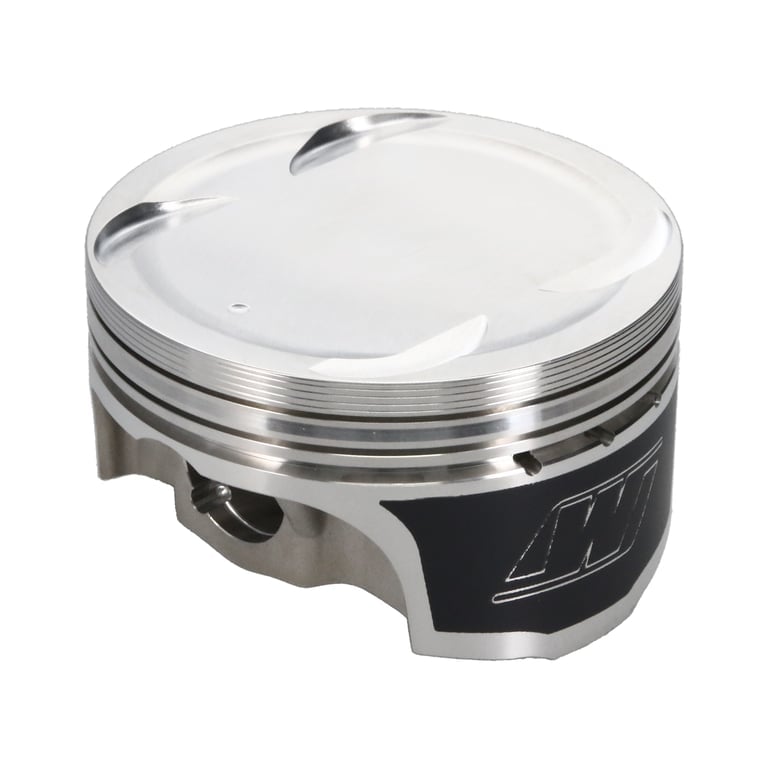

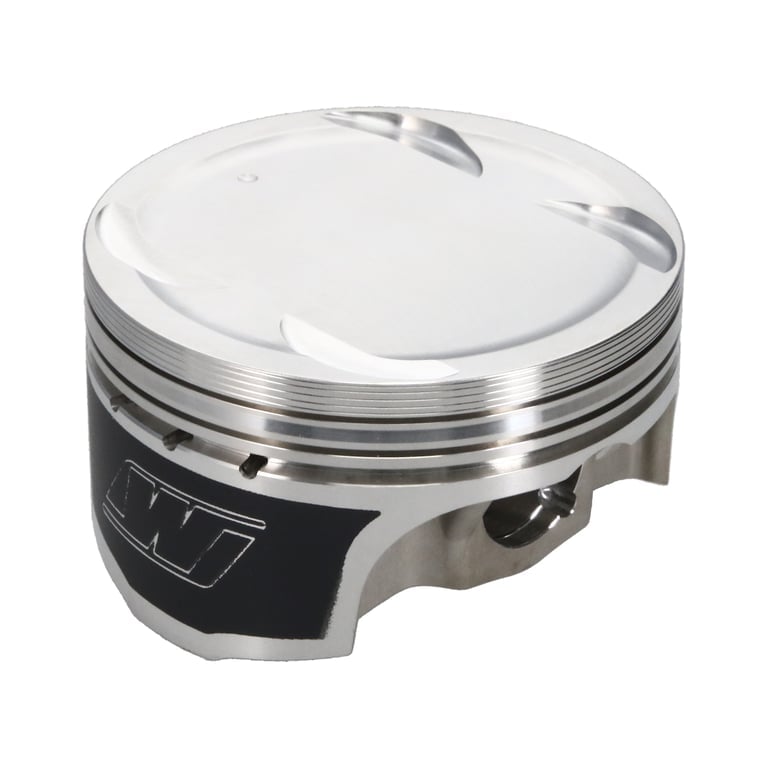

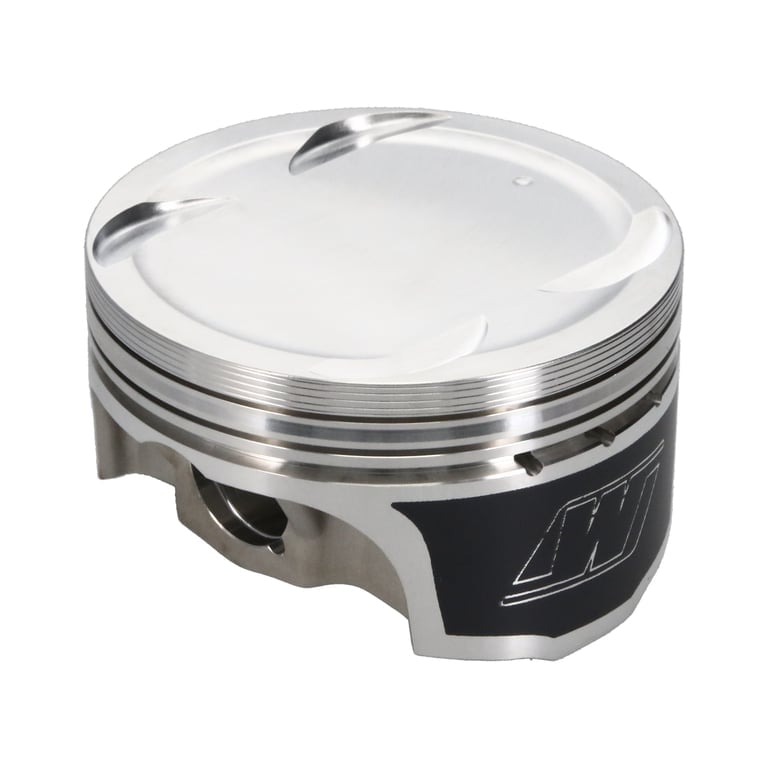

Set of 6 Wiseco Professional Series forged pistons for the Nissan VR38DETT: 95.50 mm (3.760 in) bore, 30.74 mm (1.210 in) compression height and -7.00 cc dish. Rings and wrist pins are included.
What’s in the box
- 6 forged pistons
- 6 wrist pins (23.00 mm / 0.905 in diameter, 52100 steel, floating)
- Piston ring set
Matching it to your Nissan VR38DETT
Crown volume is quoted as -7.00 cc: Wiseco use a negative figure when the dish or valve reliefs add volume to the combustion chamber. Work out the compression ratio for your combination (chamber volume, gasket bore and thickness, deck clearance) before you order.
The bore size is the finished bore these pistons are made for, so have the block measured and then bored and honed to suit, with piston-to-wall clearance set to Wiseco’s figure for part K694M955-3D.
Material: 2618 aluminium, the low-silicon alloy usually chosen for boosted and high-load engines (it needs more piston-to-wall clearance than 4032).
Ring grooves: 1 mm top, 1.2 mm second and 3 mm oil.
Specifications
| Bore Diameter | 95.50 mm |
|---|---|
| Compression Height | 30.74 mm |
| Engine Detail | Nissan VR38DETT |
| Forging Type | Dished |
| Oil Ring Thickness | 3 mm |
| Piston Material | 2618 |
| Piston Quantity | 6 |
| Piston Volume | -7.00 cc |
| Ring Set Included | Yes |
| Second Compression Ring Thickness | 1.2 mm |
| Skirt Coating | Yes |
| Top Compression Ring Thickness | 1 mm |
| Wrist Pin Included | Yes |
| Wrist Pin Material | 52100 |
| Wrist Pin Outer Diameter | 0.9055 in |
| Wrist Pin Style | Floating |
Boostline conrods listed for this engine family: Boostline Connecting Rod Kit | Nissan VR38DETT 165 | ARP2000, Boostline Connecting Rod Kit | Nissan VR38DETT 165 | ARP625+. Match the rod length to the pistons before you order.
More: Nissan VR38DETT forged pistons · all performance pistons · Wiseco
Wiseco part number: K694M955-3D
