Wiseco Professional Nissan KA24DE Piston Set of 4 - 90.50 mm Bore - 33.94 mm CH, -9.00 CC
Wiseco Professional Nissan KA24DE Piston Set of 4 - 90.50 mm Bore - 33.94 mm CH, -9.00 CC
Wiseco Professional Nissan KA24DE Piston Set of 4 - 90.50 mm Bore - 33.94 mm CH, -9.00 CC
Wiseco Professional Nissan KA24DE Piston Set of 4 - 90.50 mm Bore - 33.94 mm CH, -9.00 CC

Wiseco Professional Nissan KA24DE Piston Set of 4 – 90.50 mm Bore – 33.94 mm CH, -9.00 CC

$1,372.38

or 4 interest-free payments of $343.10 with Afterpay

Available to order – usually ships in 2-3 weeks

Bore 90.50 mm · Compression height 33.94 mm · Volume -9.00 cc · Set of 4 · rings included · wrist pins included

Heavy / oversize item — freight quoted to your addressOrder now and we will confirm the exact delivery cost to your address before dispatch — no guessed freight, you only ever pay the real rate. Prefer a price first? Contact us for a freight quote.

Available to order – usually ships in 2-3 weeks

Freight quoted after you order - we confirm the cost to your address before dispatch

Check fitment by rego or VIN
Secure checkout: Square · PayPal · Afterpay · Apple Pay · Google Pay
Willys Workshop · Oxley & Warana, QLD
SKU: WPC-K587M905 Categories: , , , , Brand:
Returns within 30 days
12 Month Warranty
Tuning & Fitment Available

Complete the job

Fast AU-Wide Shipping

Returns within 30 days

12 month warranty

Will it fit your vehicle?

MakeModelSeriesYearsEngine
Nissan———KA24DE

A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.

Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.

Check my fitmentor call(07) 5619 7869

Description

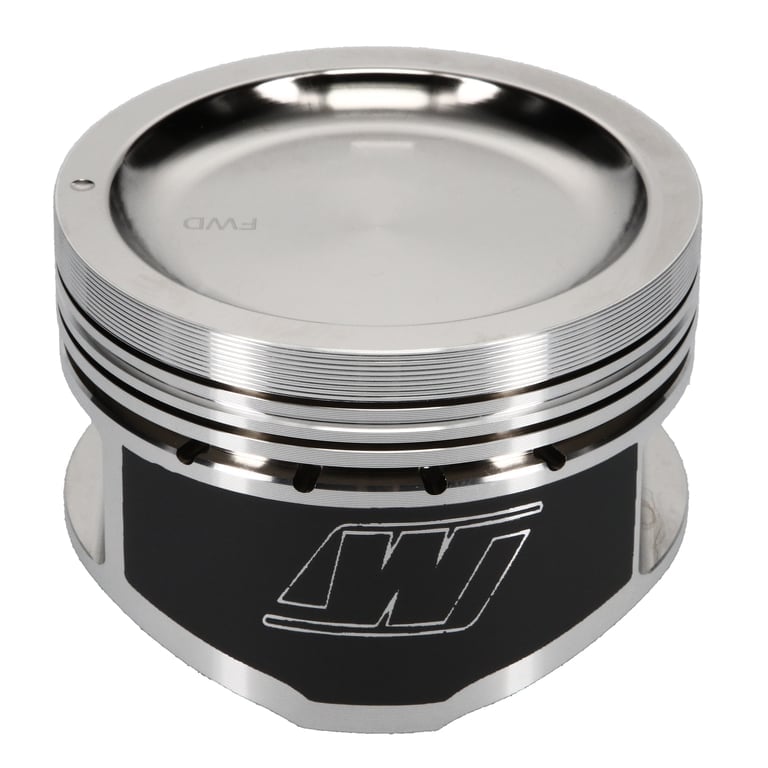

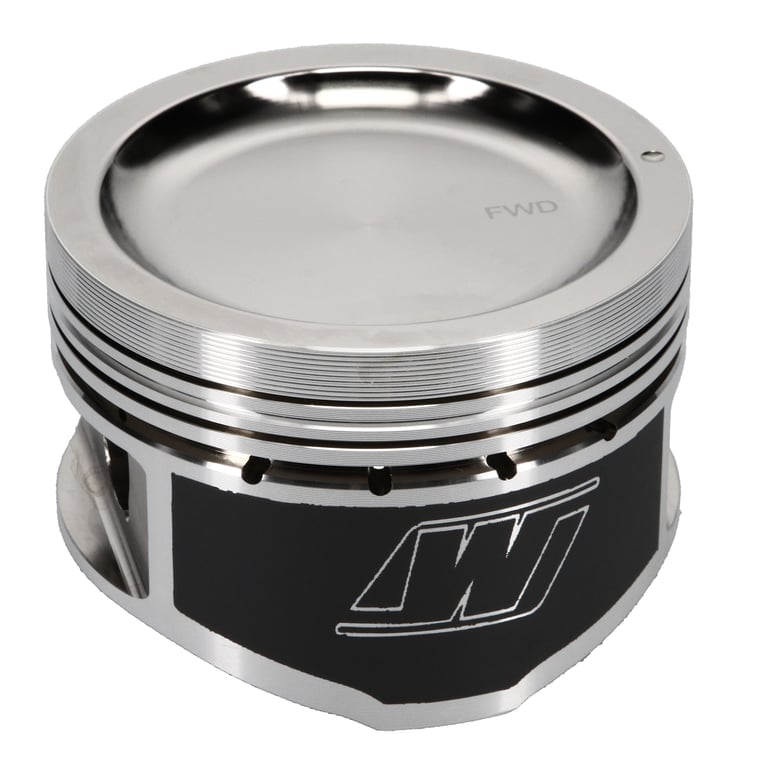

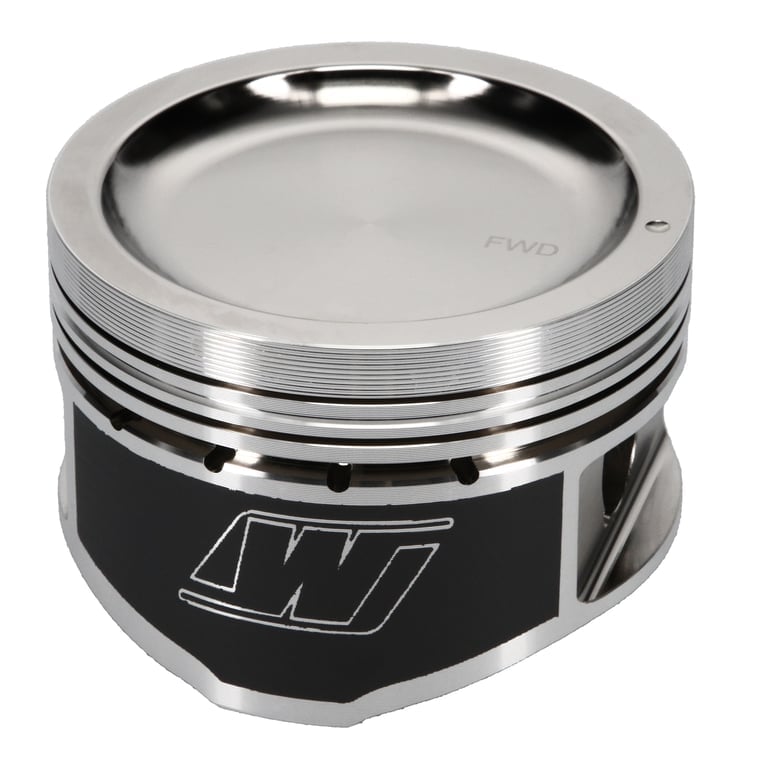

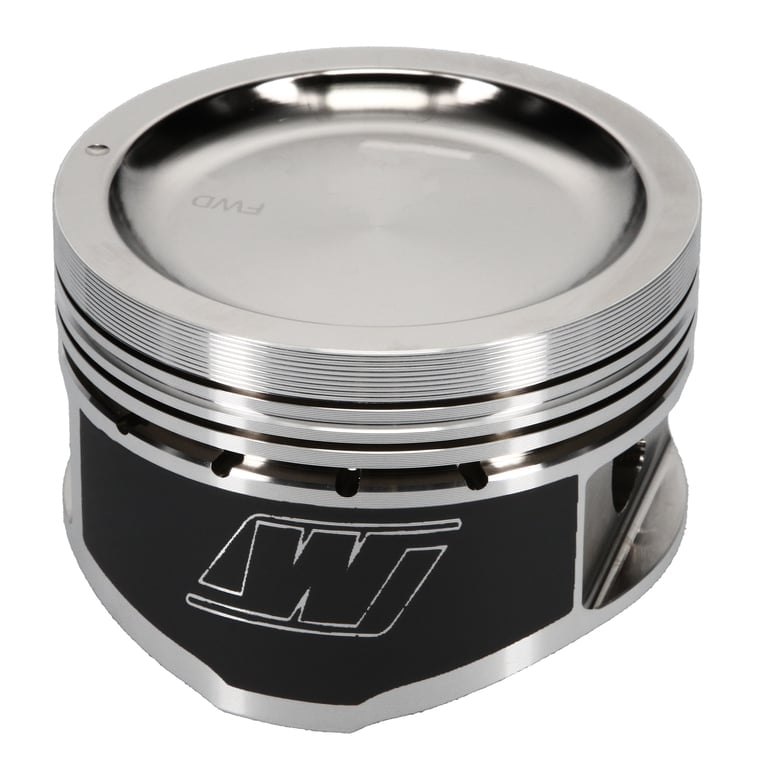

Set of 4 Wiseco Professional Series forged pistons for the Nissan KA24DE: 90.50 mm (3.563 in) bore, 33.94 mm (1.336 in) compression height and -9.00 cc crown volume. Rings and wrist pins are included.

What’s in the box

  • 4 forged pistons
  • 4 wrist pins (21.00 mm / 0.827 in diameter, 5115 steel, floating)
  • Piston ring set

Matching it to your Nissan KA24DE

Crown volume is quoted as -9.00 cc: Wiseco use a negative figure when the dish or valve reliefs add volume to the combustion chamber. Work out the compression ratio for your combination (chamber volume, gasket bore and thickness, deck clearance) before you order.

The bore size is the finished bore these pistons are made for, so have the block measured and then bored and honed to suit, with piston-to-wall clearance set to Wiseco’s figure for part K587M905.

Material: 2618 aluminium, the low-silicon alloy usually chosen for boosted and high-load engines (it needs more piston-to-wall clearance than 4032).

Forging: full-round design, with a coated skirt.

Ring grooves: 1.0 mm top, 1.2 mm second and 2.8 mm oil.

Specifications

Bore Diameter 90.50 mm
Compression Height 33.94 mm
Engine Detail Nissan KA24DE
Forging Type Full Round
Oil Ring Thickness 2.8 mm
Piston Material 2618
Piston Quantity 4
Piston Volume -9.00 cc
Ring Set Included Yes
Second Compression Ring Thickness 1.2 mm
Skirt Coating Yes
Top Compression Ring Thickness 1.0 mm
Wrist Pin Included Yes
Wrist Pin Material 5115
Wrist Pin Outer Diameter 0.827 in
Wrist Pin Style Floating

More: all performance pistons · Wiseco

Wiseco part number: K587M905
