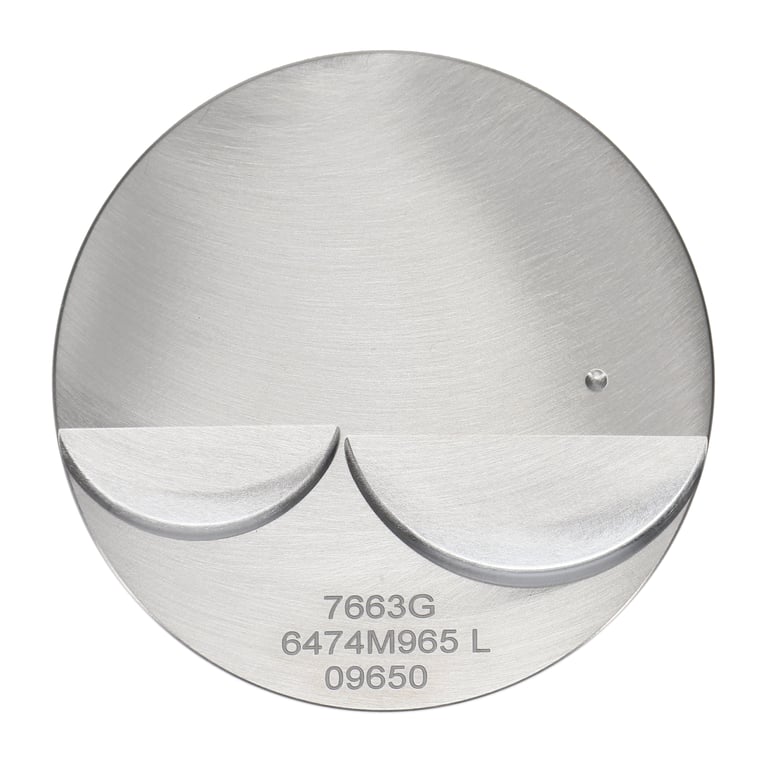

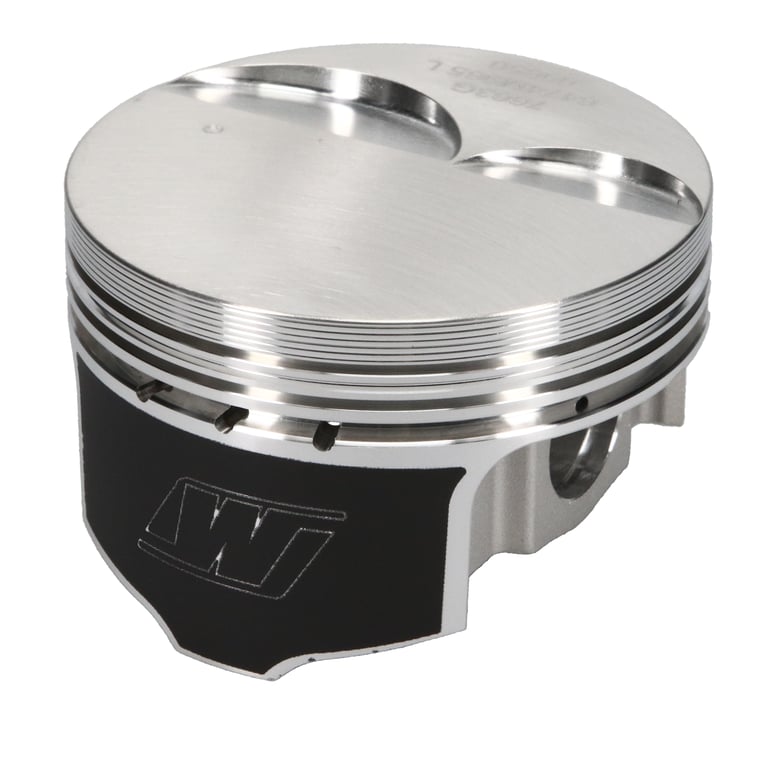

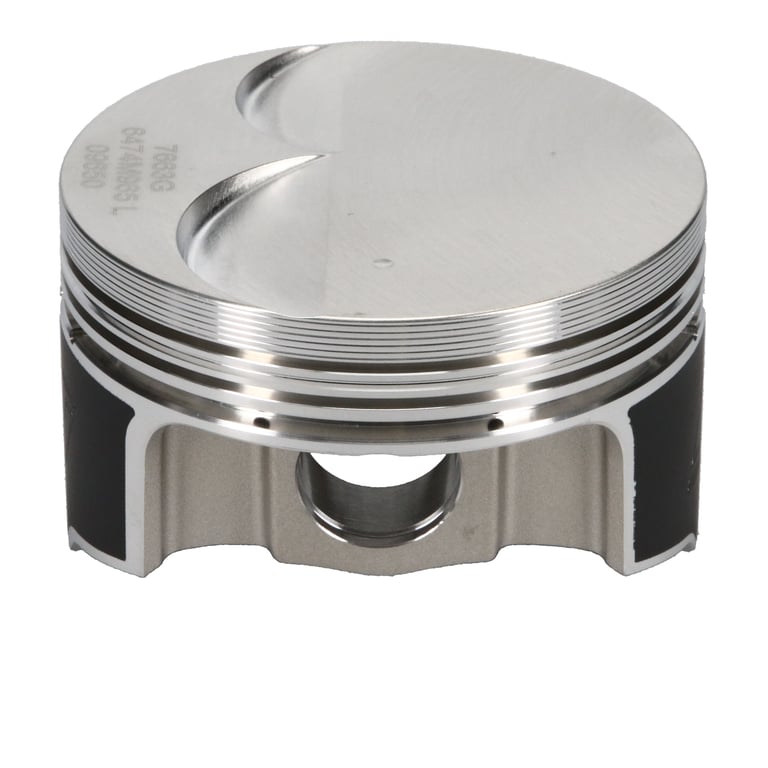

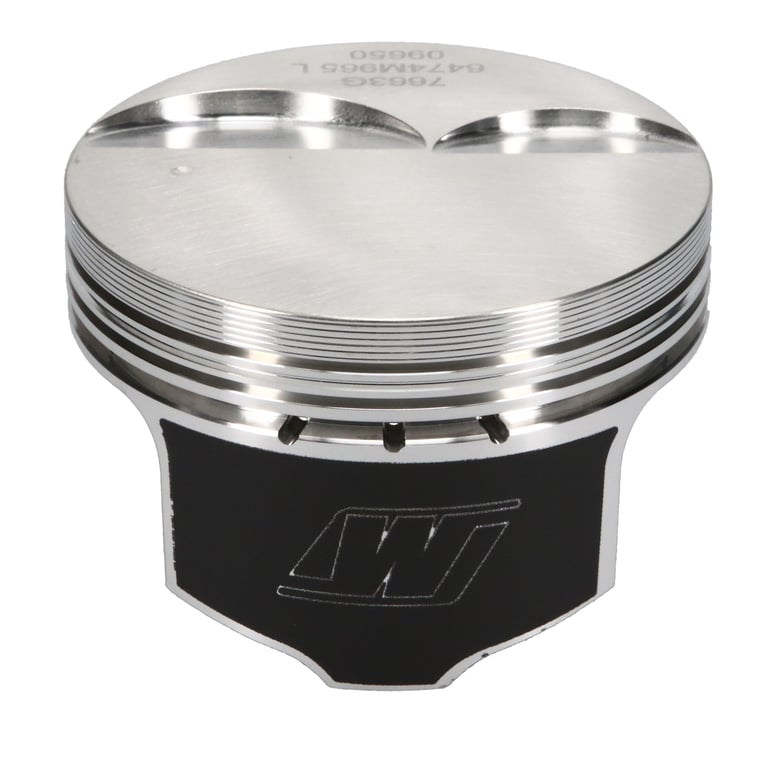

Wiseco Professional Chevy LS1 Piston Set of 8 – 3.780 in. Bore – 1.110 in. CH, -7.00 CC
$1,707.70
or 4 interest-free payments of $426.93 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
Bore 3.780 in · Compression height 1.110 in · Volume -7.00 cc · Set of 8 · wrist pins included
Available to order – usually ships in 2-3 weeks
Check fitment by rego or VINComplete the job
- NPR Ring Set | LS1 5.7Lt V8 Vortec$184.80View
- TDC Main Bearing Set | Holden LS1$97.90View
- Enginetech Conrod Bearing Set | Holden LS1$52.80View
Doing the full rebuild?
Fast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| Chev / GMC | — | — | — | — |
| — | — | — | — | LS1 |
A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description
Set of 8 Wiseco Professional Series forged pistons for the Chevy LS1: 3.780 in (96.01 mm) bore, 1.110 in (28.19 mm) compression height and -7.00 cc crown volume. Wrist pins are included; rings are not.
What’s in the box
- 8 forged pistons
- 8 wrist pins (0.927 in / 23.55 mm diameter, 5115 steel, floating)
Rings are not part of this set, so order a ring set to suit the finished bore and the ring groove widths listed below: Wiseco piston ring sets.
Matching it to your Chevy LS1
Wiseco list this set for a 4.000 in stroke and 6.125 in connecting rods. Compression height plus rod length plus half the stroke comes to 9.235 in (234.57 mm): compare that with your block’s deck height to see where the piston sits at top dead centre.
Crown volume is quoted as -7.00 cc: Wiseco use a negative figure when the dish or valve reliefs add volume to the combustion chamber. Work out the compression ratio for your combination (chamber volume, gasket bore and thickness, deck clearance) before you order.
The bore size is the finished bore these pistons are made for, so have the block measured and then bored and honed to suit, with piston-to-wall clearance set to Wiseco’s figure for part K473M96.
Material: 2618 aluminium, the low-silicon alloy usually chosen for boosted and high-load engines (it needs more piston-to-wall clearance than 4032).
Forging: strutted design, with a coated skirt.
Specifications
| Bore Diameter | 3.780 in |
|---|---|
| Compression Height | 1.110 in |
| Forging Type | Strutted |
| Piston Material | 2618 |
| Piston Quantity | 8 |
| Piston Volume | -7.00 cc |
| Ring Set Included | No |
| Rod Length | 6.125 in |
| Skirt Coating | Yes |
| Stroke | 4.000 in |
| Wrist Pin Included | Yes |
| Wrist Pin Material | 5115 |
| Wrist Pin Outer Diameter | 0.927 in |
| Wrist Pin Style | Floating |
Boostline conrods listed for this engine family: Boostline Connecting Rod Kit | GM LS / LT 6.125 | ARP2000. This set is listed for 6.125 in rods, so match the length.
More: Chev LS forged pistons · all performance pistons · Wiseco
Wiseco part number: K473M96
