Boostline Connecting Rod Kit | GM LS / LT 6.125 | ARP2000
$2,992.51
Zip and humm are available over the phone: (07) 5619 7869
Centre-to-centre length 6.125 in · Big end bore 2.225 in · Pin end bore 0.927 in · Bolt diameter 7/16 in
Available to order – dispatched in 1-2 business days
Fast AU-Wide Shipping
Returns within 30 days
12 month warranty
Description

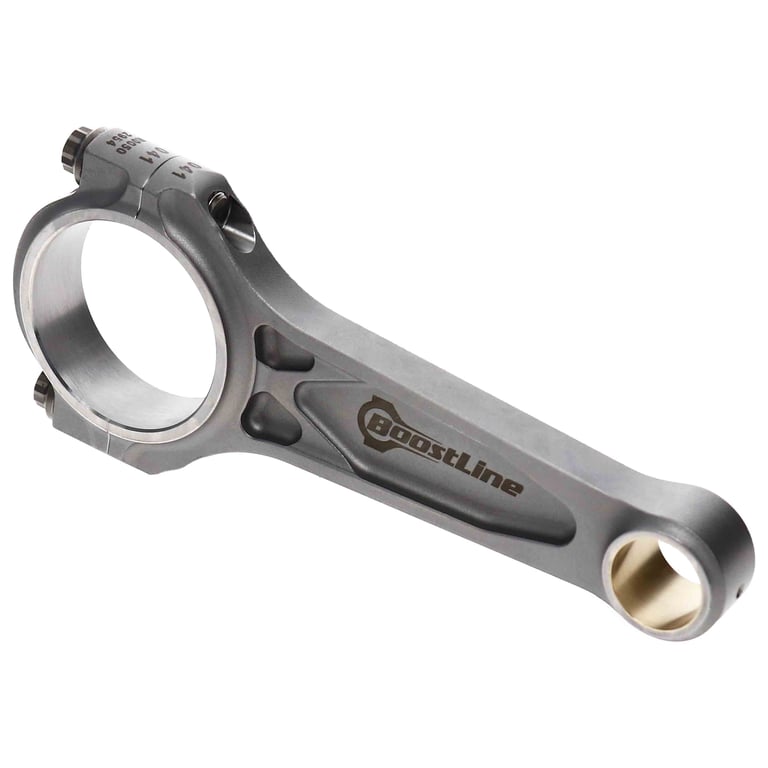

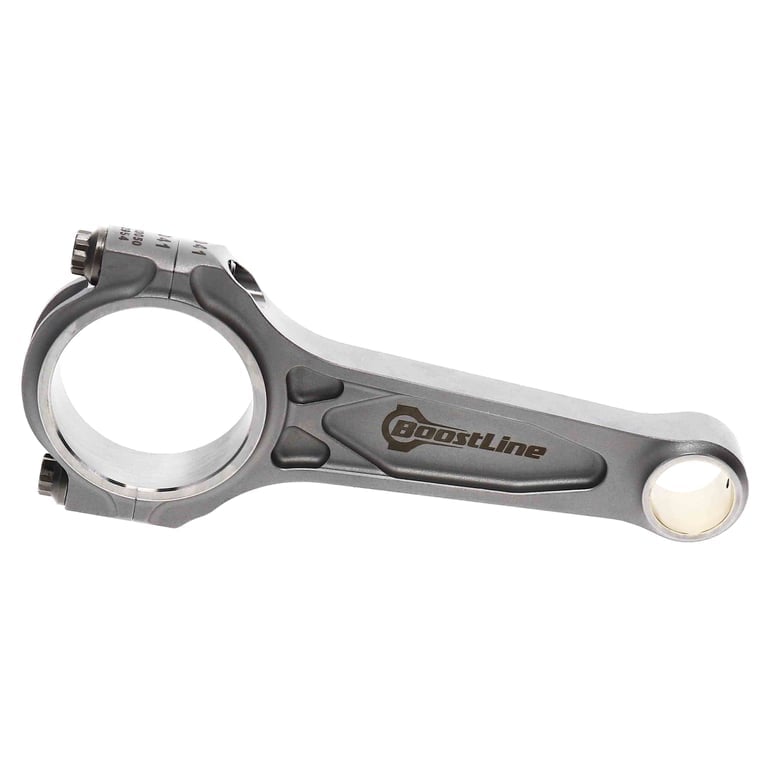

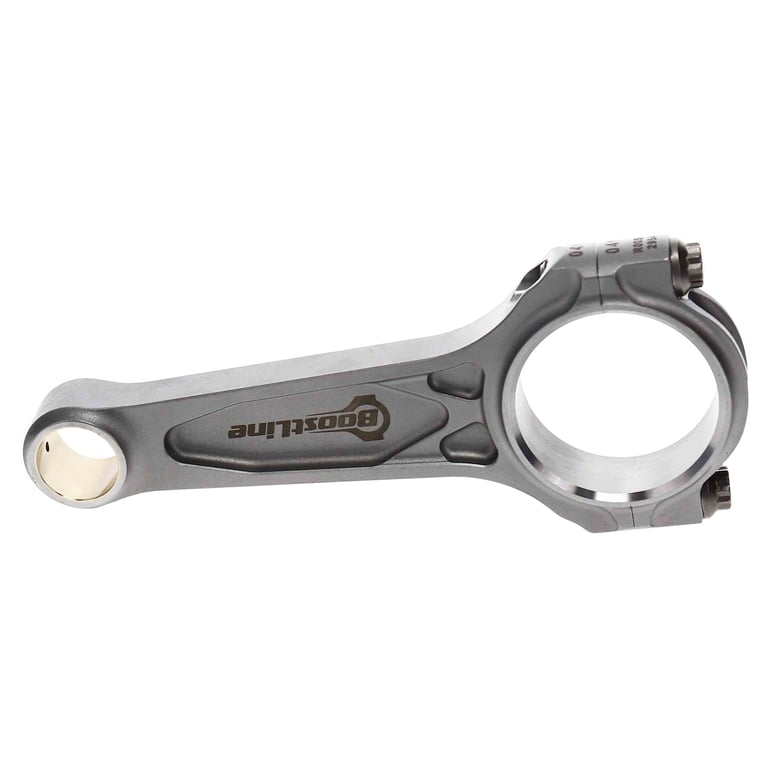

Boostline forged connecting rods for the GM LS / LT: 6.125 in (155.57 mm) centre-to-centre, forged 4340 steel and I-beam design, fitted with ARP 2000 rod bolts (7/16 in).
What’s in the box

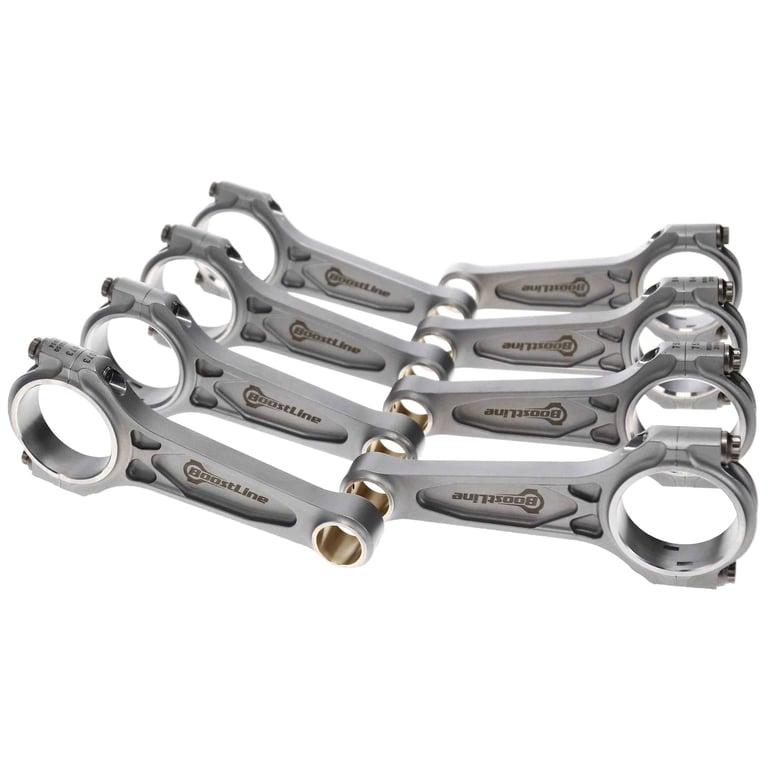

- Boostline connecting rod set (part LS6125-927)
- ARP 2000 rod bolts, part BT71401-2S
- Bronze pin-end bushings
- CMM inspection card with the measured dimensions
Matching them to your GM LS / LT
Key dimensions: big-end bore 2.225 in (56.52 mm); big-end width 0.940 in (23.88 mm); crank journal 2.100 in (53.34 mm); pin-end bore 0.927 in (23.55 mm); pin bushing width 1.010 in (25.65 mm); average weight 694 g.
Check the centre-to-centre length against the rod length your pistons are designed for, the big-end bore and width against your crank, and the pin end against your wrist pin diameter before you order.
Specifications
| Average Gram Weight | 694 gr |
|---|---|
| Big End Bore | 2.225 in |
| Big End Width | 0.940 in |
| Bolt Diameter | 7/16 in |
| Bolt Part Number | BT71401-2S |
| Centre-to-centre length | 6.125 in |
| Connecting Rod Journal Diameter | 2.100 in |
| Connecting Rod Material | Forged 4340 Steel |
| Connecting Rod Type | I-Beam |
| Journal Size | 2.100 in |
| Main Bearing Bore Diameter | 2.225 in |
| Material | Forged 4340 Steel |
| Pin End Bore | 0.927 in |
| Rod Type | I-Beam |
| Wrist Pin Journal Bushing Width | 1.010 in |
More: all Boostline performance conrods · Chev LS forged pistons · Boostline
Boostline part number: LS6125-927
