Wiseco Professional Audi TT RS Piston Set of 5 – 82.50 mm Bore – 1.165 in. CH, 9.50 CC
$1,637.52
or 4 interest-free payments of $409.38 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
Bore 82.50 mm · Compression height 1.165 in · Volume 9.50 cc · Set of 5 · rings included · wrist pins included
Available to order – usually ships in 2-3 weeks
Check fitment by rego or VINFast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| Audi | TT | — | — | — |
A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description

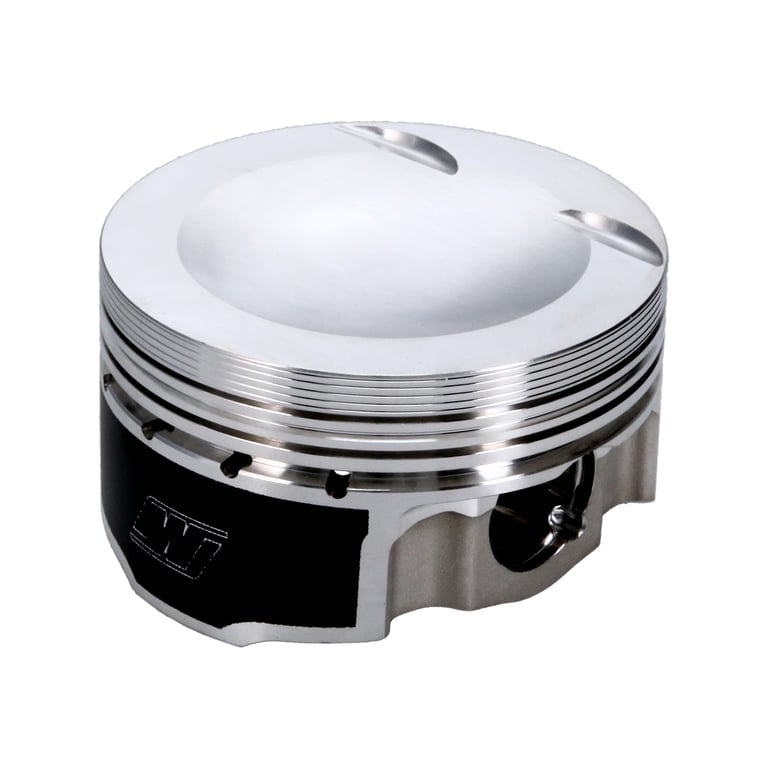

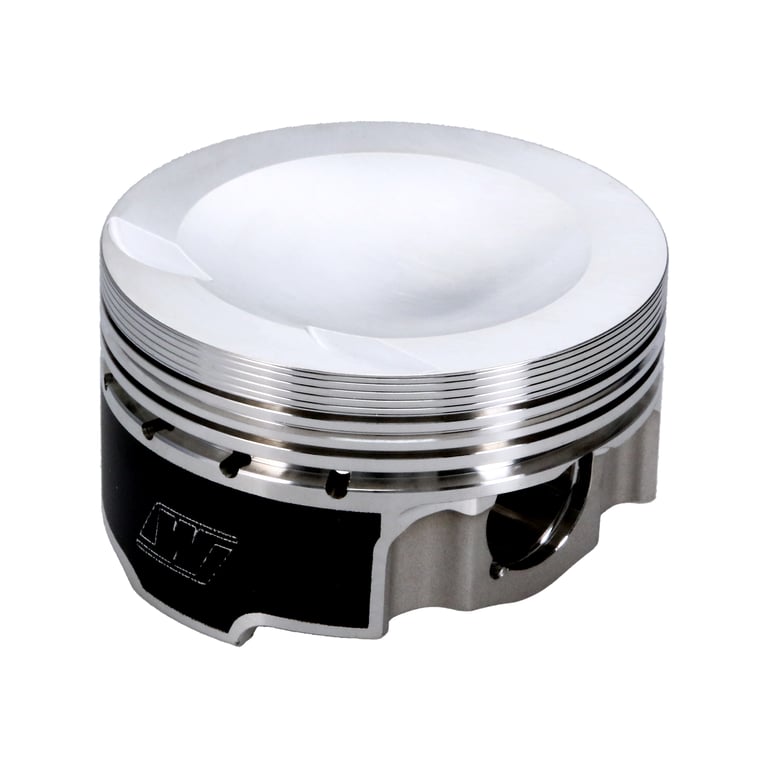

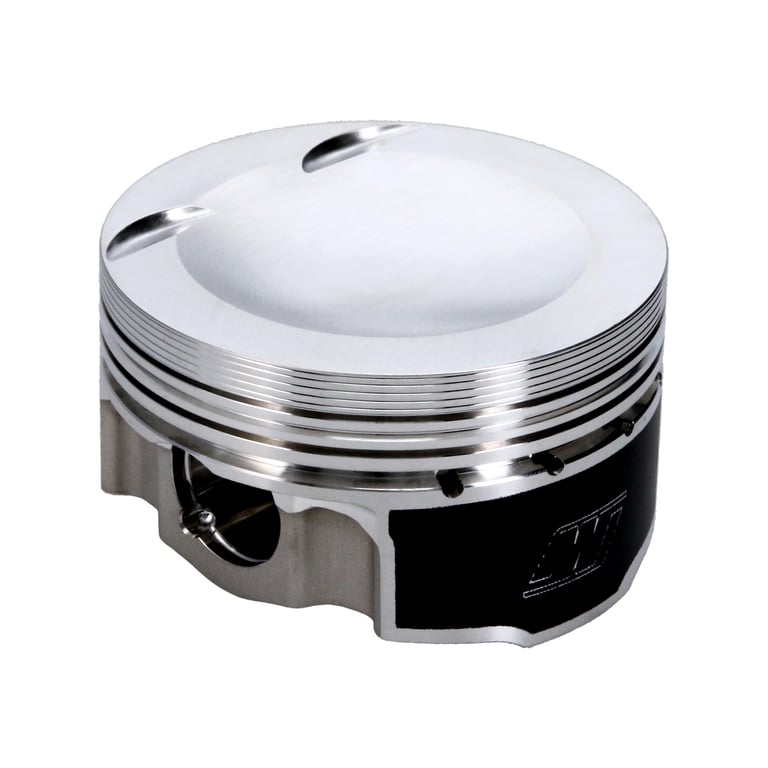

Set of 5 Wiseco Professional Series forged pistons for the Audi TT RS: 82.50 mm (3.248 in) bore, 1.165 in (29.59 mm) compression height and +9.50 cc crown volume. Rings and wrist pins are included.
What’s in the box
- 5 forged pistons
- 5 wrist pins (22.00 mm / 0.866 in diameter, 5115 steel, floating, Wiseco part S747)
- Piston ring set (Wiseco 8250XX)
Matching it to your Audi TT RS
Crown volume is quoted as +9.50 cc. Work out the compression ratio for your combination (chamber volume, gasket bore and thickness, deck clearance) before you order.
The bore size is the finished bore these pistons are made for, so have the block measured and then bored and honed to suit, with piston-to-wall clearance set to Wiseco’s figure for part K743M825.
Material: 2618 aluminium, the low-silicon alloy usually chosen for boosted and high-load engines (it needs more piston-to-wall clearance than 4032).
Ring grooves: 1.00 mm top, 1.20 mm second and 2.80 mm oil.
Specifications
| Bore Diameter | 82.50 mm |
|---|---|
| Compression Height | 1.165 in |
| Forging Type | Dish |
| Oil Ring Thickness | 2.80 mm |
| Piston Material | 2618 |
| Piston Quantity | 5 |
| Piston Volume | 9.50 cc |
| Ring Set Included | Yes |
| Ring Set Part Number | 8250XX |
| Second Compression Ring Thickness | 1.20 mm |
| Skirt Coating | Yes |
| Top Compression Ring Thickness | 1.00 mm |
| Wrist Pin Included | Yes |
| Wrist Pin Material | 5115 |
| Wrist Pin Outer Diameter | 22.00 mm |
| Wrist Pin Part Number | S747 |
| Wrist Pin Style | Floating |
Boostline conrods listed for this engine family: Boostline Connecting Rod Kit | VW 1.8T 144mm | ARP2000, Boostline Connecting Rod Kit | VW 2.0T TSI 144mm 21pin | ARP2000, Boostline Connecting Rod Kit | VW 2.0T TSI 144mm 22pin | ARP2000. Match the rod length to the pistons before you order.
More: VW & Audi forged pistons · all performance pistons · Wiseco
Wiseco part number: K743M825
