Description

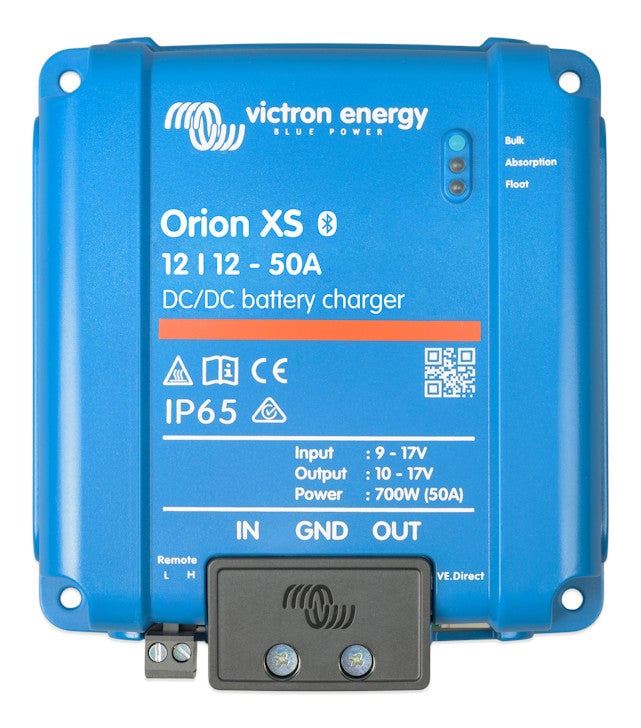

The Orion XS is designed with a rugged IP65 classification rating.The built-in alternator protection regulates input current to the alternator’s safe zone for optimal charging and safety.
| Performance and Efficiency | |
|---|---|
| Input Voltage Range | 9v ~ 17v |
| Output Voltage Range | 10v ~ 17v |
| Output Voltage Tolerance | +/- 0.25% (max) |
| Maximum Efficiency | 98.5% |
| Continuous Output Power | 700W (up to 40°C) |
| Current and Power Management | |
| Input & Output Current Setting Range | 1 – 50A |
| Maximum Constant Short-Circuit Current | 50A |
| Output Voltage Tolerance | +/- 0.25% (max) |
| Maximum Efficiency | 98.5% |
| Continuous Output Power | 700W (up to 40°C) |
| Can be used as a power supply with adjustable output via the VictronConnect app. | |
| Connectivity and Control | |
| Bluetooth | Yes |
| VE.Direct | Yes |
| DC Connection | Screw Terminals |
| Maximum Cable Cross Section | 25mm (AWG 4) |
| Energy Consumption | |
| No-load Current Consumption | Under 100 mA |
| Standby Current Consumption | Under 1.5 mA |
| Environmental Specs and Dimensions | |
| Operating Temp Range | -20°C to +60°C (derating 1.5% per °C over 40) |
| Humidity | Max. 95% (Non-Condensing) |
| Weight | 0.33 kg |
| Dimensions (mm) | 137.3 x 123.1 x 40 |
| Protection Category | IP65 |
| Safety and Compliance | |
| Safety | IEC 62477-1 |
| Emission | IEC 61000-6-3, EN 55014-2 |
| Immunity | IEC 61000-6-2, IEC 61000-6-1, EN 55014-2 |
| Automotive Directive | ECE R10-5 |
Choose the Orion XS for unmatched reliability and performance on the move. Made for 4×4 and campers, it ensures your journey is powered safely and efficiently, wherever the road takes you.The Victron Orion XS is designed for versatility, making it compatible with both conventional and smart alternators. Conventional alternators provide a consistent output, which many chargers are designed to handle. However, newer vehicles have smart alternators that vary their output based on driving conditions and battery charge levels to improve fuel efficiency and reduce emissions. This variation can pose challenges for standard DC-DC chargers.
The Orion XS stands out by adapting to the fluctuating output of smart alternators, ensuring optimal charging performance regardless of the alternator type. This capability allows the charger to maximise efficiency and extend battery life by accurately adjusting the charge parameters to suit the real-time output of the alternator. Whether your vehicle has a newer, eco-friendly smart alternator or a traditional one, the Victron Orion XS 50A ensures consistent, efficient and safe battery charging.
