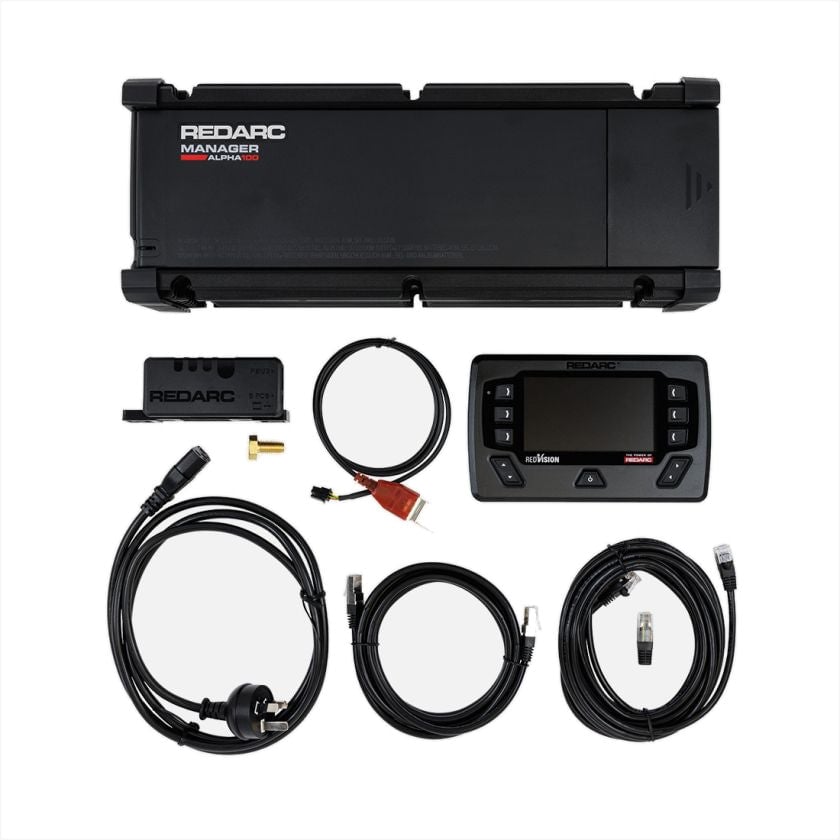

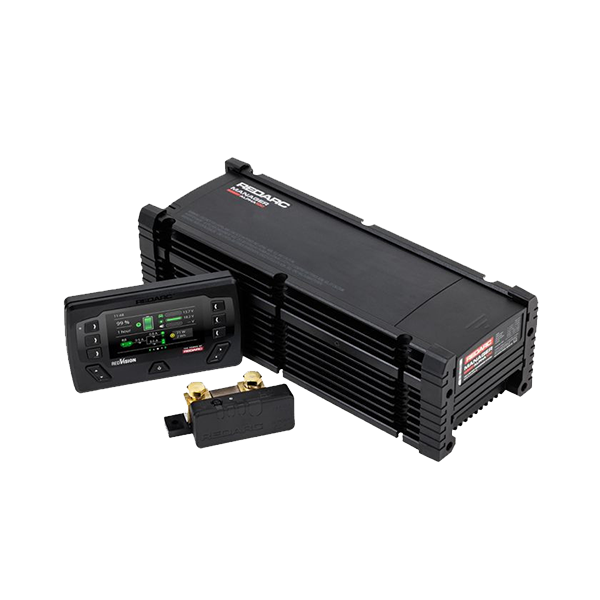

REDARC Alpha Series Charger With RedVision Monitor
Price range: $3,999.00 through $5,899.00
Zip and humm are available over the phone: (07) 5619 7869
The ultimate charger & monitor kit that just works together seamlessly! Harness power from solar, DC and AC power sources. The ultimate tripple-source charger! Nominal Voltage: 12V Current Measurement Range: ± 500A Start Battery Input Voltage Range: 9-32VDC Solar Input Voltage…
Send your rego for a confirmed fit
Once we’ve confirmed it fits your vehicle, our Fitment Guarantee covers it. If it doesn’t fit, we pay the return freight both ways and refund or exchange it. No restocking fee. How it works
Covered only after we confirm the fit from your rego or VIN. Tell us within 30 days, with the part unused. Special-order, freight-quoted and tune/software items are excluded. Change of mind is different: 30 days, a 15% restocking fee, and you pay the return postage.
Want it fitted? Book it in at Warana
Our auto electrician fits DC-DC chargers, solar regulators and battery monitors at our Warana workshop on the Sunshine Coast.
Fitment from $575*
*Depends on the make and model of your vehicle. Contact us for an accurate quote and to discuss your needs.
Fast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
Universal fit Not made for one vehicle. It fits by size, thread or specification, so check the dimensions in the description against your application.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description
The ultimate charger & monitor kit that just works together seamlessly! Harness power from solar, DC and AC power sources. The ultimate tripple-source charger!
- Nominal Voltage: 12V
- Current Measurement Range: ± 500A
- Start Battery Input Voltage Range: 9-32VDC
- Solar Input Voltage Range: 9-32VDC
- Nominal Input Voltage: 12V
- AC Input Range: 95 – 264 VAC / 45 – 65 Hz.
- Operating Temperature: –20°C to 60°
- Weight (Alpha50): 5.8kg
- Weight (Alpha75): 6kg
- Weight (Alpha100): 6.1kg
- Height: 120mm
- Width: 154mm
- Length: 400mm
When equipped with the lasting power of a Custom Lithium RV battery, you can journey further and stay powered for longer. Satellite wifi, cooking appliances, kettle, fridge – have it all & more!Choosing the right size DCDC charger from our REDARC Alpha Series depends on your charging needs and battery capacity. We offer three sizes: 50Ah, 75Ah, and 100Ah, each designed to cater to different power requirements and charging speeds.
All REDARC Alpha chargers are fully compatible with our Custom Lithium batteries and feature sophisticated charging technology. For those looking for efficient charging with the flexibility to harness solar power, our models include built-in MPPT solar regulators, while others focus solely on DC-DC charging.
For larger battery systems or if you prefer quicker recharge times, opting for a higher amperage model, such as the 75Ah or 100Ah, is recommended. These larger chargers expedite the charging process, making them ideal for extensive use or larger setups.
If you have smaller batteries or are less concerned about rapid charging, our 50Ah model provides a balance of efficiency and speed, suitable for everyday needs. All our batteries can effectively utilize chargers up to 40A, but choosing a smaller charger, like a 25A or 30A model, is also viable, just expect a longer charging duration.
When considering third-party chargers or existing setups, ensure the charger is compatible with lithium batteries and supports the necessary settings for optimal charging: 13.5 volts for absorption/float charge and a bulk charge of 14.2 volts. This ensures your battery is charged safely and maintains its longevity.
Specifications
| Brand | REDARC |
|---|---|
| Nominal voltage | 12V |
| Operating temperature | -20°C to 60° |
| Height | 120 mm |
| Width | 154 mm |
| Length | 400 mm |
Additional information
| Weight | N/A |
|---|---|
| Charger Option | 50 AMP Charger, 75 AMP Charger, 100 AMP Charger |
