Nissan Patrol Intercooler GU Zd30 Direct Injection
$1,555.00
or 4 interest-free payments of $388.75 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
HPD’s 4WD Nissan Patrol GU ZD30DI intercooler kits have been designed as the factory intercoolers are prone to leaking from where the end tanks are pressed together to the core with a rubber O-ring between, hence the reason why they…
Send your rego for a confirmed fit
Once we’ve confirmed it fits your vehicle, our Fitment Guarantee covers it. If it doesn’t fit, we pay the return freight both ways and refund or exchange it. No restocking fee. How it works
Covered only after we confirm the fit from your rego or VIN. Tell us within 30 days, with the part unused. Special-order, freight-quoted and tune/software items are excluded. Change of mind is different: 30 days, a 15% restocking fee, and you pay the return postage.
Fast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| Nissan | Patrol | GU Y61 | — | ZD30 |
A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description
HPD’s 4WD Nissan Patrol GU ZD30DI intercooler kits have been designed as the factory intercoolers are prone to leaking from where the end tanks are pressed together to the core with a rubber O-ring between, hence the reason why they do and are very likely to leak and cause engine running issues. HPD have designed a direct replacement larger and more efficient intercooler kit with a 9” thermo fan bolted underneath to keep cool at low driving speeds.
The factory ZD30 intercooler core size is 170x250x60mm, giving a surface area of 425cm², and a volume of 2550cc.
Our intercooler measures 300x280x76mm, giving an improved surface area of 840cm², and a larger volume of 6384cc.
That’s almost double the surface area cooling, and 2.5 times the charge air cooling volume!
HPD’s intercooler kit improves torque and power just on its own but really show’s it potential in keeping cooler intake temps and egt’s when engine tuning modifications come into play. These top mount intercoolers are great right up to 130kw’s at the wheels.
HPD intercoolers are designed to give amazing performance, reliability, consistent and sustainable power. By reducing inlet temperatures, you will also reduce engine running temperatures.

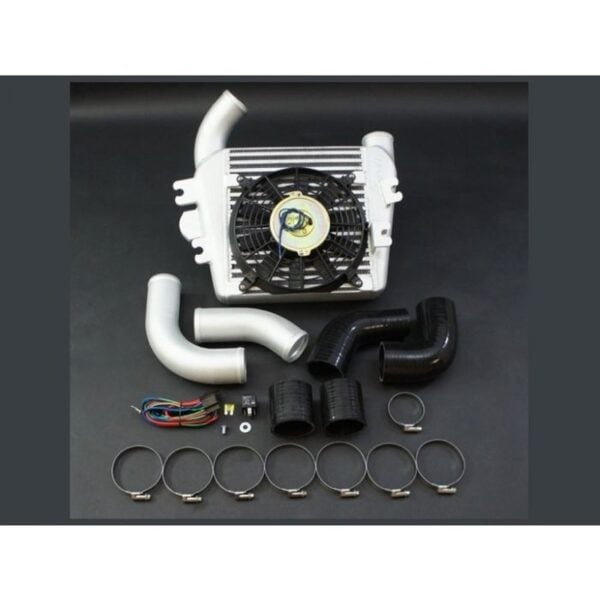

Kit features:
- This Kit is a Direct replacement
- Bar & Plate Core 300x280x76mm
- 9″ Thermo fan
- Quality silicone hoses
- Alloy mandrel bent piping
- German load rated clamps
- CNC Machined mounting brackets
- 63mmø intercooler piping
- 1 year warranty
Shipped Australia-Wide
- Dispatched from within Australia with tracking.
- In-stock orders are dispatched by the supplier, usually within 1-2 business days.
- Shipping is calculated at checkout based on size, weight and your delivery address.
- Delivery usually takes 2–10 business days after dispatch, depending on your location.
- Need your tracking number? Once your order has shipped, email sales@willysworkshop.com.au with your order number and we’ll send you the carrier and tracking details.
Freight question? Call us on (07) 5619 7869.
HPD’s 4WD Nissan Patrol GU ZD30DI intercooler kits have been designed as the factory intercoolers are prone to leaking from where the end tanks are pressed together to the core with a rubber O-ring between, hence the reason why they do and are very likely to leak and cause engine running issues.
Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 80 × 40 × 18 cm |
| Fitment | Patrol GU ZD30 Direct Injection 3.0L |
Warranty: 12 months from Willys Workshop
Sold and warranted by Willys Workshop. Parts carry our 12-month warranty against defects, from the date of purchase or installation (whichever is later), subject to any manufacturer terms and fair wear and tear (Terms & Conditions, clause 7.1(b)). This is in addition to your rights under the Australian Consumer Law, which cannot be excluded.
- 30-day change-of-mind returns on eligible items: unused, uninstalled and in the original packaging, with a Return Authorisation from us first. A 15% restocking fee applies and return postage is at your cost.
- Wrong fit: if a part covered by our Fitment Guarantee doesn’t fit, we pay the return freight both ways and there’s no restocking fee.
- Special-order or imported-to-order items, electrical parts, ECUs and tuners once registered, connected or flashed, parts that have been fitted or modified, and clearance items can’t be returned for change of mind. Your rights for faulty goods still apply.
- Refunds are made to your original payment method within 14 business days of us receiving and inspecting the return.
Full details: Returns & Refund Policy and Terms & Conditions.
HPD (High Performance Diesel) is an Australian manufacturer of diesel performance parts. HPD bracketry is vehicle-specific, and workshop fitment is available at Willys.
Warranty claims are coordinated through Willys Workshop. Email sales@willysworkshop.com.au or call Warana (07) 5619 7869 / Oxley (07) 3377 3421 with your order number and a description of the issue.
