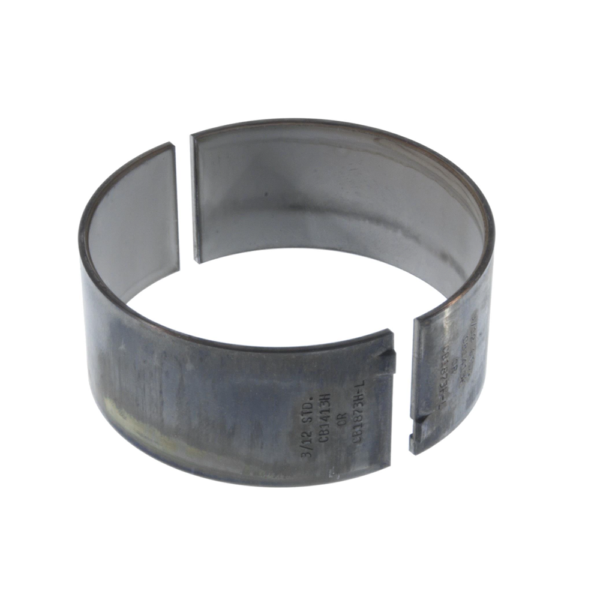

MAHLE | Clevite H Series Conrod Bearings – Set of 6 – Cummins 5.9L 89-02
Price range: $378.00 through $402.00
or 4 interest-free payments from $94.50 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
Clevite H-Series Connecting Rod Bearings were developed primarily for NASCAR type racing but are suitable for all types of competition engines.
Fast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| — | — | — | — | 6BT |
| — | — | — | — | ISB |
A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description
MAHLE | Clevite Conrod Bearings – Set of 6 – Cummins 5.9L 89-02
Build your 1989-2002 Dodge 5.9L Cummins to hold up to the competition with the Clevite CB-1413H H-Series Connecting Rod Bearings.
Clevite H-Series Connecting Rod Bearings were developed primarily for NASCAR type racing but are suitable for all types of competition engines.
H-Series bearings have a medium level of eccentricity, high crush, and rod bearings have a hardened steel back and thin overlay.
These bearings also have enlarged chamfers for greater crankshaft fillet clearance and are made without flash plating for better seating.
Use Clevite H-Series Rod Bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.
If you aren’t sure which type of performance bearing to start with, the H series bearing will be your best choice for replacing your OEM rod bearings.
Bearings with .001 in. extra clearance are available for standard size shafts and with or without dowel holes.
H-Series bearings are recommended for use with crankshafts that have oversize fillets and where engines run in the medium to high rpm range. They should also be used if contact patterns obtained with Clevite P-Series bearings are too narrow. Contact patterns should ideally cover 2/3 to 3/4 of the bearing surface.
Compatible With:
- 1989 Dodge 5.9L 12V Cummins
- 1990 Dodge 5.9L 12V Cummins
- 1991 Dodge 5.9L 12V Cummins
- 1992 Dodge 5.9L 12V Cummins
- 1993 Dodge 5.9L 12V Cummins
- 1994 Dodge 5.9L 12V Cummins
- 1995 Dodge 5.9L 12V Cummins
- 1996 Dodge 5.9L 12V Cummins
- 1997 Dodge 5.9L 12V Cummins
- 1998 Dodge 5.9L 12V Cummins
- 1998.5 Dodge 5.9L 24V Cummins
- 1999 Dodge 5.9L 24V Cummins
- 2000 Dodge 5.9L 24V Cummins
- 2001 Dodge 5.9L 24V Cummins
- 2002 Dodge 5.9L 24V Cummins
*May not work for all builds due to other engine/vehicle modifications
Provides your 1989-2002 Dodge 5.9L Cummins with a rod bearing that can handle increased RPMs, especially those where the high rpm cause the rod bores to narrow.
To compensate for this distortion, these direct replacements have higher eccentricity and a high crush factor.
For 89-02 Cummins 6BT 5.9L – set of 6 (top and bottom)
Double Duty Diesel is a dealer of MAHLE and is your online source for diesel stock replacement parts. Call us if you need any stock part for your Cummins Diesel.
* These do not fit the fractured style rods, check our other ads for CB1873 Mahle rod bearings to suit Fractured style connecting rods
Shipped Australia-Wide
- Dispatched from within Australia with tracking.
- Same-day dispatch on in-stock orders placed before 11am AEST, Monday–Friday.
- Shipping is calculated at checkout based on size, weight and your delivery address.
- Delivery usually takes 2–10 business days after dispatch, depending on your location.
- Need your tracking number? Once your order has shipped, email sales@willysworkshop.com.au with your order number and we’ll send you the carrier and tracking details.
Freight question? Call us on (07) 5619 7869.
MAHLE | Clevite Conrod Bearings – Set of 6 – Cummins 5.9L 89-02 Build your 1989-2002 Dodge 5.9L Cummins to hold up to the competition with the Clevite CB-1413H H-Series Connecting Rod Bearings.
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | N/A |
| Sizing | Standard, .25mm, .26mm, .50mm, .75mm |
