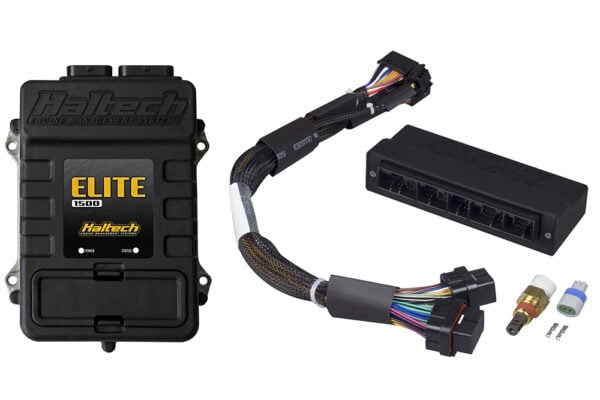

Elite 1500 + Mazda Miata (MX-5) NB

Description

Genuine Haltech gear, stocked and supported by the team at Willys Workshop — diesel and performance specialists in Brisbane and the Sunshine Coast.

Overview

ECU OVERVIEW

Elite 1500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications. Recommended for 4vcylinder, Drive-By-Wire (DBW) or 2 rotor engines, EFI conversions, engines with multiple variable camshafts.

Featuring a robust environmentally sealed water resistant case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 1500 ECU provides engine calibrators with the tools they need to get the job done right.

The Elite 1500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.

Supports 1 to 12 cylinder engines

2 rotor engines

Normally aspirated or forced induction

Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)

Features

• ECU FUNCTIONS
• Drive by Wire Throttle Control (DBW) – Requires (2) user defined outputs (4) user defined inputs
• Low Impedance Injector control with Programmable Injector Peak and Hold Currents & Programmable peak time
• Flex Fuel Function (Direct sensor input) – Tune your engines boost, fuel and ignition by ethanol content
• Flexible tuning setup for Petrol (Gasoline), LPG, Methanol and Ethanol allows you to simply select your fuel type
• Closed Loop 02 Control – Dual bank control for precise tuning (With optional external CAN O2 Wideband Controller Kit)
• Knock Control – Synchronised to engine position with high speed digital filtering for accurate detection
• Variable cam control – Independently control up to 4 camshafts – Requires a minimum of 1 user defined input & output per variable cam
• Closed Loop Idle Speed Control with learning for consistent idle stability Requires 1 or 2 user defined outputs (BAC type) or 4 user defined outputs (Stepper motor type)
• Long term learning (Auto tune) on fuel, ignition, cam, boost & idle control maps (up to 4D)
• On-board data logging – Up to 40 channels of logging at sample rates up to 5ms (200Hz) with 2MB of internal memory
• Laptop data logging -Data log all available channels directly to your laptop’s hard drive for both tuning and diagnostics
• Dual CAN Bus communication for Haltech Dashes and expansion devices.
• Injection Stages: up to 4 with individual injector flow rates per injector
• 4 Injector drivers for sequential fuel injection

Note: Haltech products are intended for sanctioned off-road/competition use. Ask our team about compliant options for your application.
