Nissan Diesel

Nissan Patrol Diesel Tuning & Servicing

The Australian diesel Patrol is the Y61/GU – the Y62 sold here is a petrol V8, so the workhorses we see in the shop run either the ZD30 3.0L common-rail four or the legendary TD42 4.2L straight-six. The ZD30 DDTi/CRD is a strong tow rig when it’s set up properly, but it has a hard-earned reputation: cracked and melted pistons, an overboosting GT2052V Garrett turbo that can spike well past sensible pressure, and an oil-fouled intake from the breather and EGR circuit that pushes some cylinders rich and others lean. Get on top of those issues and the ZD30 is a genuinely capable engine.

The TD42 is the other side of the coin – a cast-iron block-and-head six that owners routinely take past 400,000km, prized for outback reliability and serviceability. Naturally aspirated or factory turbo, it’s a tourer’s favourite, with the trade-off that the perceived overheating problems almost always trace back to hard-worked aftermarket turbo conversions rather than the engine itself. Whether you’ve got the mechanically injected TD42 or the electronically managed ZD30, our job is to make the Patrol do its work – touring the Cape, towing a van up a long grade, daily duty – without cooking itself.

At Willy’s Workshop we tune and service Patrols at both our Brisbane (Oxley) and Sunshine Coast (Warana) workshops. Tuning here is custom, written in-house on the factory ECU and verified on our dyno – never a generic file or a plug-in box that hides the real story. On the ZD30 CRD that means proper control of boost, fuelling and exhaust gas temperature; on the TD42 it means correctly set-up mechanical fuelling and supporting hardware. Every Patrol leaves with EGTs and boost we’re happy to put our name to.

Engines We Tune

Nissan Patrol diesel engines we tune

ZD30 3.0L (GU/Y61)

118kW / 380Nm

Common-rail CRD variants are ECU-tunable; later models carry EGR/DPF emissions hardware we keep road-compliant

TD42 4.2L (GU/GQ)

114kW / 280Nm

Naturally tough mechanically-injected 4.2; gains come from fuel pump, turbo and supporting upgrades rather than ECU mapping

Tuning & Servicing

Why choose Willy’s for your Nissan Patrol

Performance Tuning

Custom, dyno-verified diesel tuning on the factory ECU – built around the Patrol’s known weak points, not around peak numbers.

ZD30 CRD/DDTi custom remap on the factory ECU – we target a smooth boost curve and controlled fuelling to address the overboost and erratic spool the GT2052V Garrett is known for, rather than just chasing power.
EGT-first tuning philosophy: exhaust gas temperatures are managed and monitored so the engine isn’t run lean and hot – the exact conditions behind the ZD30’s melted-piston reputation. We recommend a gauge fitted on any tow or touring Patrol.
Boost-control hardware done right – Dawes valve and needle valve setups to hold sustained boost where it belongs and kill the spikes that hammer the bottom end, integrated with the tune rather than fighting it.
TD42 mechanical fuelling and supporting setup dialled in for towing and touring, with cooling and EGT headroom respected – so the power gain doesn’t become the overheating problem these engines only get when worked hard.

Explore diesel tuning

Servicing & Repair

Mechanical servicing and repair from a diesel-specialist team that knows exactly where the Patrol fails.

Intake and EGR decarbon and inspection – we clean out the oil-and-soot tar that builds in the ZD30 inlet runners from the breather and EGR circuit, the gunk that causes uneven cylinder mixtures and hot spots.
MAF and MAP sensor checks and cleaning, plus intercooler and charge-pipe inspection for oil accumulation – the ZD30 is a heavy breather and oil-fouled sensors throw fuelling out badly.
Injector testing and service for the ZD30 CRD, where poor fuel quality, water and contaminants cause clogged injectors, bad spray patterns and misfires; turbo health assessment on overboosting or worn Garrett units.
Full TD42 maintenance done properly – oil, fuel filters and injector-pump servicing on the engine that rewards it with 400,000km-plus life – plus cooling-system checks for any turbo-converted six.

Explore servicing & repair

See all Nissan tuning & servicing

The Difference

Why drivers trust Willy’s Workshop

In-house ECU tuning

Custom maps written on your factory ECU — never generic off-the-shelf files

Dyno-verified

Every result measured before & after on our in-house dyno

Dealer-grade tooling

Genuine OEM software and diagnostics, not guesswork

Warranty-conscious

Logbook servicing kept up to date with manufacturer schedules

Two QLD workshops

Oxley (Brisbane) & Warana (Sunshine Coast)

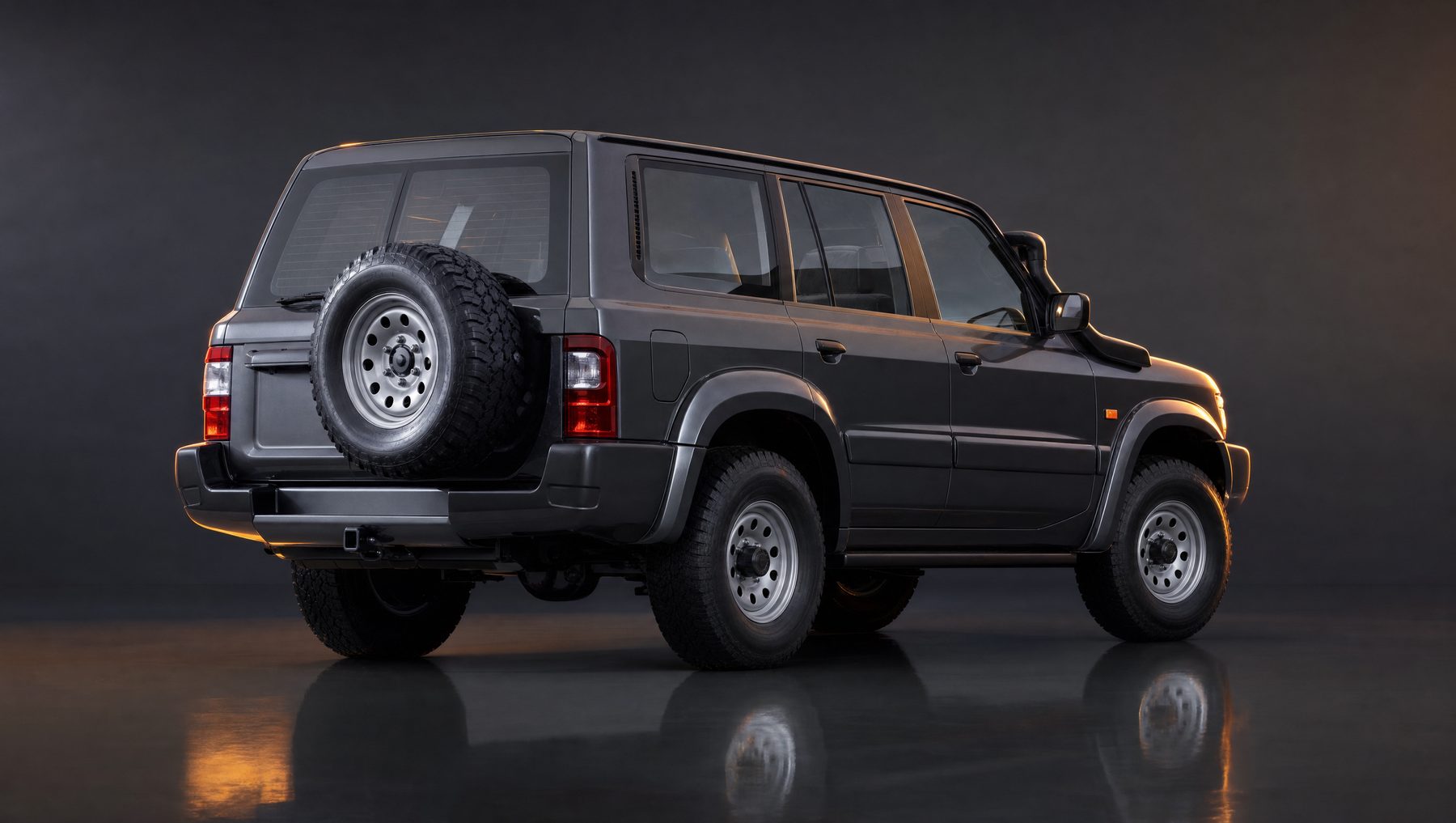

Nissan diesel performance tuning & servicing at Willys Workshop

FAQ

Nissan Patrol diesel FAQs

Will tuning my ZD30 Patrol cause the piston failures I’ve heard about?

No – done correctly, a proper tune does the opposite. The ZD30’s melted and cracked pistons come from high exhaust gas temperatures, lean cruise fuelling, boost spikes and dust ingestion – mostly from factory tuning and uncontrolled boost. Our in-house tune on the factory ECU manages EGTs and smooths the boost curve, and we strongly recommend an EGT gauge so you can see what the engine’s doing, especially when towing.

Can you tune a TD42, and is it worth it for towing?

The TD42 is mechanically injected, so it’s tuned through fuelling and supporting hardware rather than an ECU remap. For towing it’s well worth setting up properly – owners who’ve towed heavy with both naturally aspirated and turbo TD42s consistently prefer the turbo for holding gears on long climbs. The key is doing it without creating the overheating these engines only suffer when a conversion is set up badly, which is exactly what we manage.

Do I have to drive to Brisbane, or can I get it done on the Sunshine Coast?

Both. We tune and service Patrols at our Oxley workshop in Brisbane and our Warana workshop on the Sunshine Coast, with the same in-house, dyno-verified approach at each. Get in touch with whichever is closer to book a tune or service.

Will an ECU tune affect my Patrol’s DPF or EGR, and is it legal to drive on the road?

On later GU CRD models fitted with EGR (and ZD30 common-rail variants with DPF/emissions hardware), we tune with emissions equipment kept intact for any vehicle that needs to stay road-compliant. EGR/DPF removal or defeat is not legal for registered road vehicles in Queensland, so we keep that work to genuine off-road or competition use only and are upfront about it before any booking. Talk to our Oxley (Brisbane) or Warana (Sunshine Coast) team and we will set the tune up to suit how and where you actually drive.

Which Patrol engines and model years do you tune?

We work across the popular diesel Patrols: the GU/Y61 ZD30 3.0L (including the common-rail CRD) and the GU and GQ TD42 4.2L. The tuning approach differs a lot between them, the ZD30 CRD is electronically managed and responds to ECU calibration, while the older mechanically-injected TD42 is more about fuel pump and turbo work. Bring your build details and we will tell you exactly what is possible for your specific variant before you commit.

How long does a Patrol tune take and do I need to book in?

Yes, please book ahead at either Oxley or Warana so we can allocate dyno and workshop time. A custom dyno tune is typically a full-day job once the vehicle is on the rollers, and supporting hardware (intake, exhaust, intercooler or injector work) is quoted and scheduled separately depending on the build. We will give you a clear timeframe and a written quote up front so there are no surprises.
