Wiseco Professional Nissan RB25 Piston Set of 6 - 86.50 mm Bore - 31.50 mm CH, 8.00 CC
Wiseco Professional Nissan RB25 Piston Set of 6 - 86.50 mm Bore - 31.50 mm CH, 8.00 CC
Wiseco Professional Nissan RB25 Piston Set of 6 - 86.50 mm Bore - 31.50 mm CH, 8.00 CC
Wiseco Professional Nissan RB25 Piston Set of 6 - 86.50 mm Bore - 31.50 mm CH, 8.00 CC

Wiseco Professional Nissan RB25 Piston Set of 6 – 86.50 mm Bore – 31.50 mm CH, 8.00 CC

$1,970.87

or 4 interest-free payments of $492.72 with Afterpay on orders up to $2,000

Available to order – usually ships in 2-3 weeks

Bore 86.50 mm · Compression height 31.50 mm · Volume 8.00 cc · Set of 6 · rings included · wrist pins included

Heavy / oversize item — freight quoted to your addressOrder now and we will confirm the exact delivery cost to your address before dispatch — no guessed freight, you only ever pay the real rate. Prefer a price first? Contact us for a freight quote.

Available to order – usually ships in 2-3 weeks

Freight quoted after you order - we confirm the cost to your address before dispatch

Check fitment by rego or VIN
Secure checkout: Square · PayPal · Afterpay · Apple Pay · Google Pay
Willys Workshop · Oxley & Warana, QLD
SKU: WPC-K578M865 Categories: , , , , , Brand:
Returns within 30 days
12 Month Warranty
Tuning & Fitment Available

Complete the job

Fast AU-Wide Shipping

Returns within 30 days

12 month warranty

Will it fit your vehicle?

MakeModelSeriesYearsEngine
Nissan————
————RB25

A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.

Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.

Check my fitmentor call(07) 5619 7869

Description

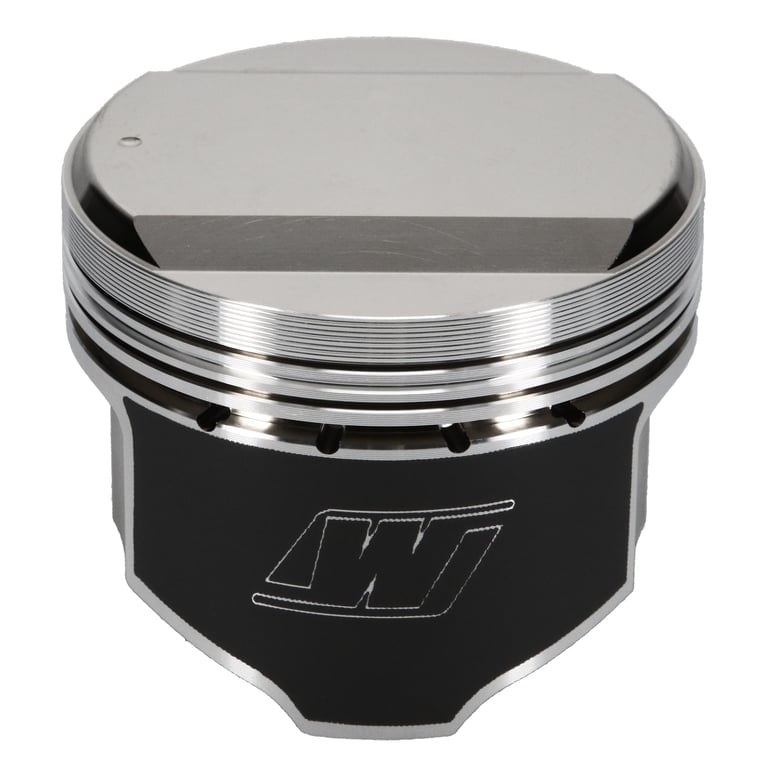

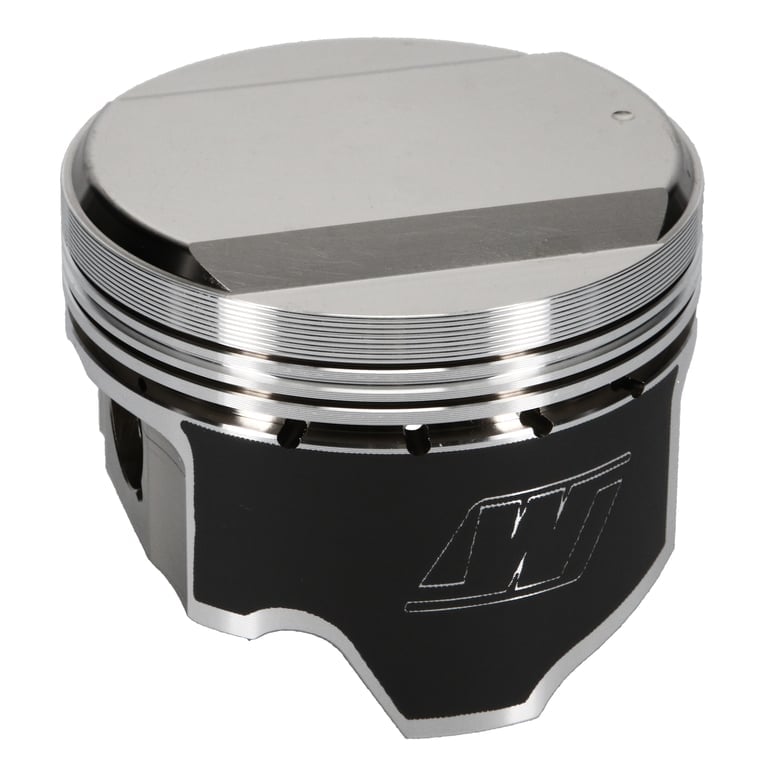

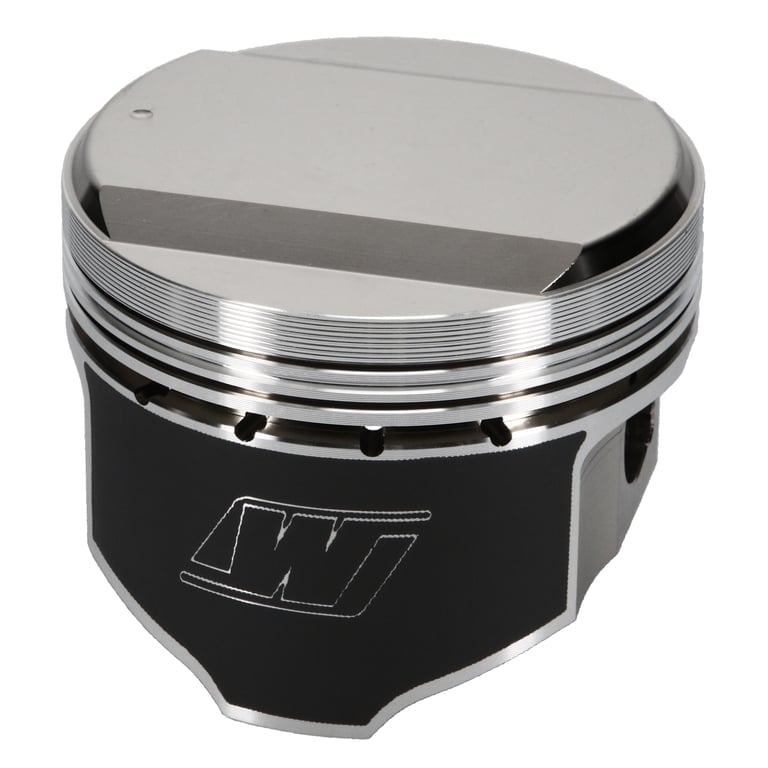

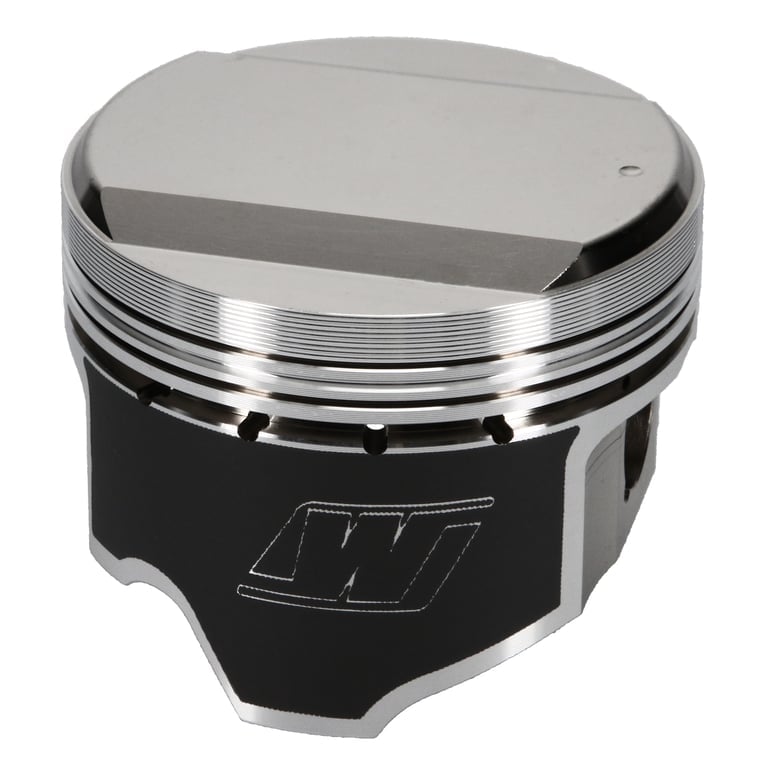

Set of 6 Wiseco Professional Series forged pistons for the Nissan RB25: 86.50 mm (3.406 in) bore, 31.50 mm (1.240 in) compression height and +8.00 cc crown volume. Rings and wrist pins are included.

What’s in the box

  • 6 forged pistons
  • 6 wrist pins (21.00 mm / 0.827 in diameter, 5115 steel, floating)
  • Piston ring set

Matching it to your Nissan RB25

Crown volume is quoted as +8.00 cc. Work out the compression ratio for your combination (chamber volume, gasket bore and thickness, deck clearance) before you order.

The bore size is the finished bore these pistons are made for, so have the block measured and then bored and honed to suit, with piston-to-wall clearance set to Wiseco’s figure for part K578M865.

Material: 2618 aluminium, the low-silicon alloy usually chosen for boosted and high-load engines (it needs more piston-to-wall clearance than 4032).

Ring grooves: 1 mm top, 1.2 mm second and 3 mm oil.

Specifications

Bore Diameter 86.50 mm
Compression Height 31.50 mm
Engine Detail Nissan RB25
Forging Type FLAT
Oil Ring Thickness 3 mm
Piston Material 2618
Piston Quantity 6
Piston Volume 8.00 cc
Ring Set Included Yes
Second Compression Ring Thickness 1.2 mm
Skirt Coating Yes
Top Compression Ring Thickness 1 mm
Wrist Pin Included Yes
Wrist Pin Material 5115
Wrist Pin Outer Diameter 0.8268 in
Wrist Pin Style Floating

Boostline conrods listed for this engine family: Boostline Connecting Rod Kit | Nissan RB26 121.5 | ARP2000, Boostline Connecting Rod Kit | Nissan RB26 121.5 | ARP625+. Match the rod length to the pistons before you order.

More: Nissan RB forged pistons · all performance pistons · Wiseco

Wiseco part number: K578M865
