Wiseco Professional Nissan FJ20 Piston Set of 4 - 89.50 mm Bore - 32.18 mm CH, -16.70 CC
Wiseco Professional Nissan FJ20 Piston Set of 4 - 89.50 mm Bore - 32.18 mm CH, -16.70 CC
Wiseco Professional Nissan FJ20 Piston Set of 4 - 89.50 mm Bore - 32.18 mm CH, -16.70 CC
Wiseco Professional Nissan FJ20 Piston Set of 4 - 89.50 mm Bore - 32.18 mm CH, -16.70 CC

Wiseco Professional Nissan FJ20 Piston Set of 4 – 32.18 mm CH, -16.70 CC

$1,345.10

or 4 interest-free payments of $336.28 with Afterpay

Available to order – dispatched in 1-2 business days

Bore 89.50 mm · Compression height 32.18 mm · Volume -16.70 cc · Set of 4 · rings included · wrist pins included

Heavy / oversize item — freight quoted to your addressOrder now and we will confirm the exact delivery cost to your address before dispatch — no guessed freight, you only ever pay the real rate. Prefer a price first? Contact us for a freight quote.
Freight quoted after you order - we confirm the cost to your address before dispatch
Check fitment by rego or VIN
Secure checkout: Square · PayPal · Afterpay · Apple Pay · Google Pay
Willys Workshop · Oxley & Warana, QLD
SKU: N/A Categories: , , , , Brand:
Returns within 30 days
12 Month Warranty
Tuning & Fitment Available

Fast AU-Wide Shipping

Returns within 30 days

12 month warranty

Will it fit your vehicle?

MakeModelSeriesYearsEngine
Nissan————
————FJ20

A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.

Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.

Check my fitmentor call(07) 5619 7869

Description

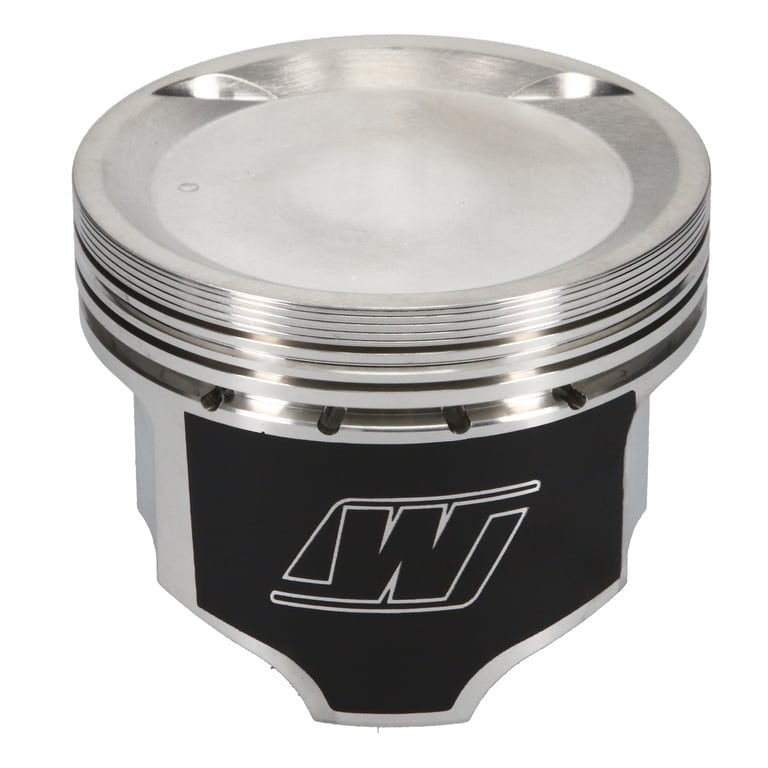

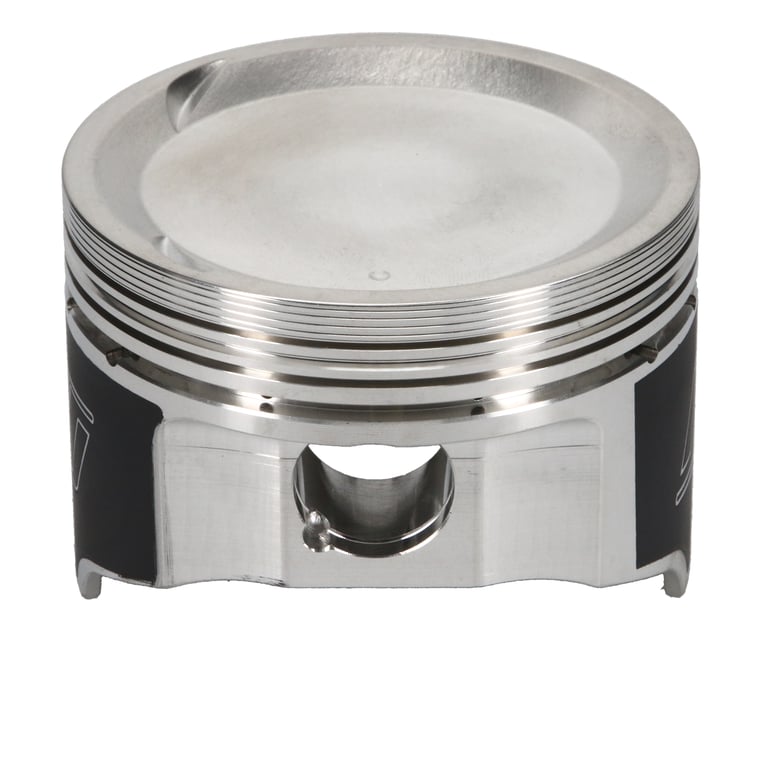

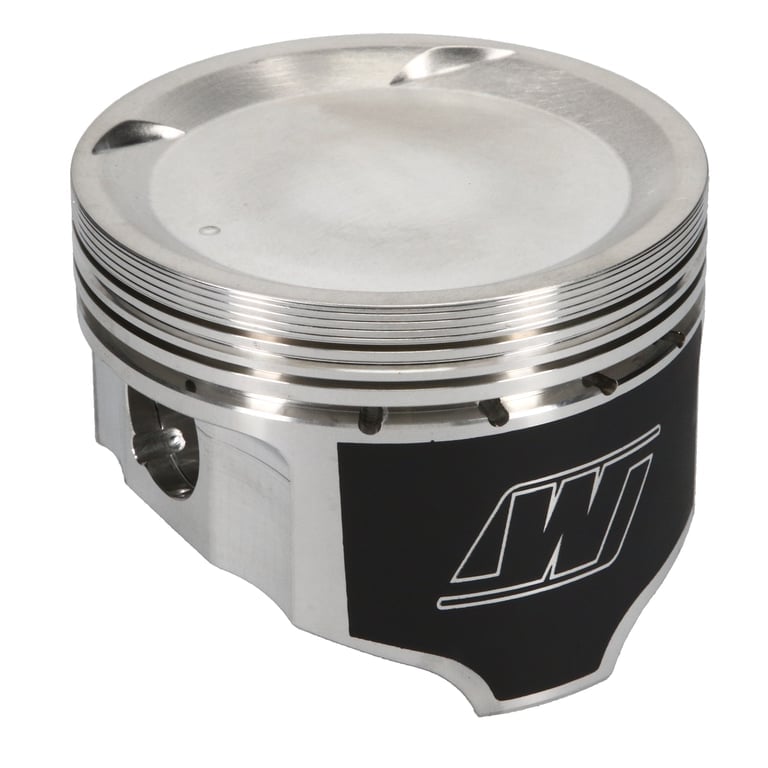

Wiseco Professional Series forged piston sets for the Nissan FJ20, offered in 2 bore sizes: 89.50 mm and 90.00 mm. Every option shares the 32.18 mm (1.267 in) compression height and -16.70 cc crown volume. Each set comes with rings and wrist pins.

What’s in the box

  • 4 forged pistons
  • 4 wrist pins (22.00 mm / 0.866 in diameter, 5115 steel, floating)
  • Piston ring set

Matching it to your Nissan FJ20

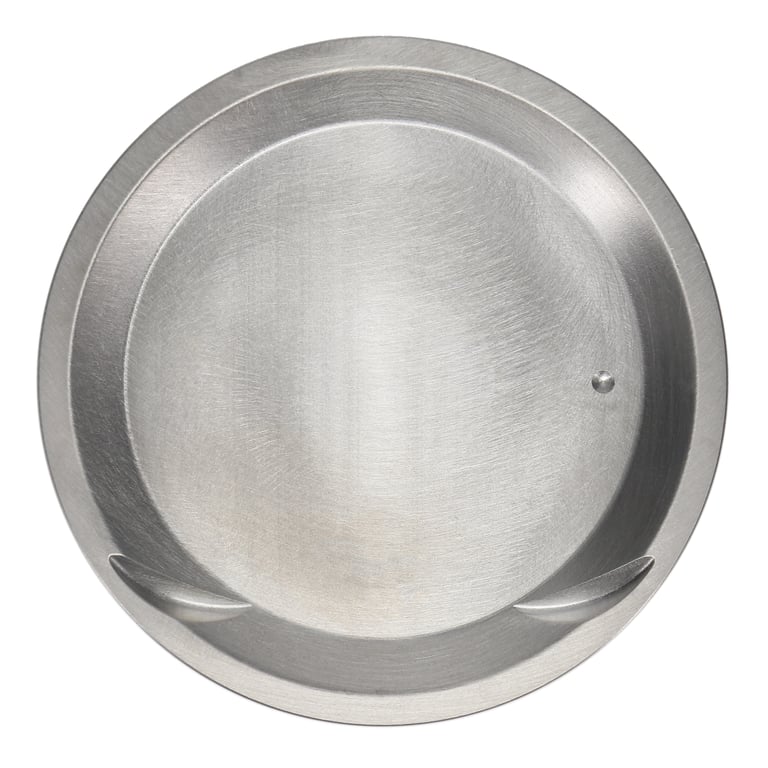

Crown volume is quoted as -16.70 cc: Wiseco use a negative figure when the dish or valve reliefs add volume to the combustion chamber. Work out the compression ratio for your combination (chamber volume, gasket bore and thickness, deck clearance) before you order.

The bore size is the finished bore these pistons are made for, so have the block measured and then bored and honed to suit, with piston-to-wall clearance set to Wiseco’s figure for the option you choose.

Material: 2618 aluminium, the low-silicon alloy usually chosen for boosted and high-load engines (it needs more piston-to-wall clearance than 4032).

Forging: full-round design, with a coated skirt.

Ring grooves: 1.0 mm top, 1.2 mm second and 2.8 mm oil.

Options and part numbers

Option Wiseco part no.
89.50 mm K574M895
90.00 mm K574M90

Specifications (all options)

Compression Height 32.18 mm
Engine Detail Nissan FJ20
Forging Type Full Round
Oil Ring Thickness 2.8 mm
Piston Material 2618
Piston Quantity 4
Piston Volume -16.70 cc
Ring Set Included Yes
Second Compression Ring Thickness 1.2 mm
Skirt Coating Yes
Top Compression Ring Thickness 1.0 mm
Wrist Pin Included Yes
Wrist Pin Material 5115
Wrist Pin Outer Diameter 0.866 in
Wrist Pin Style Floating
