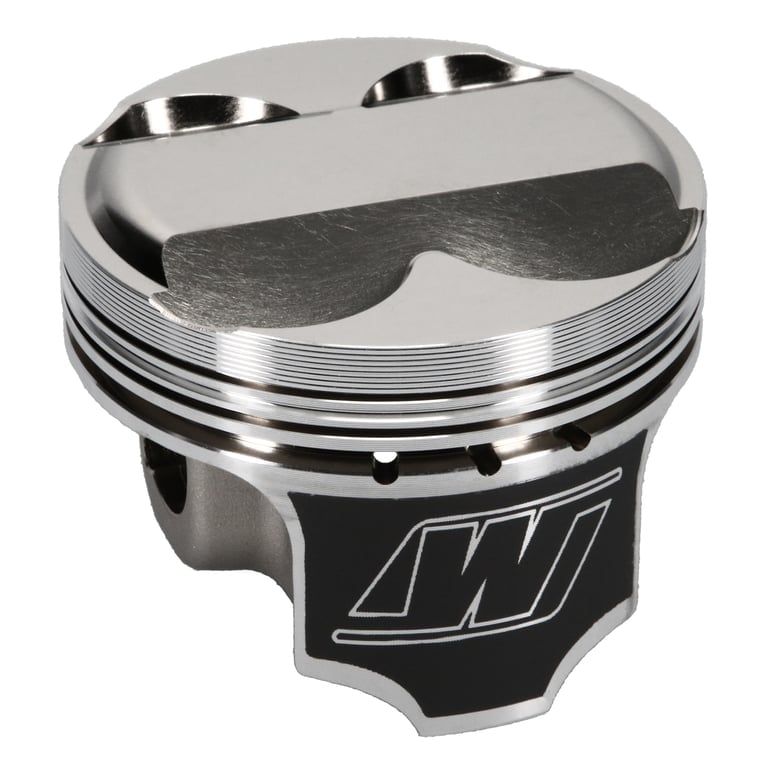

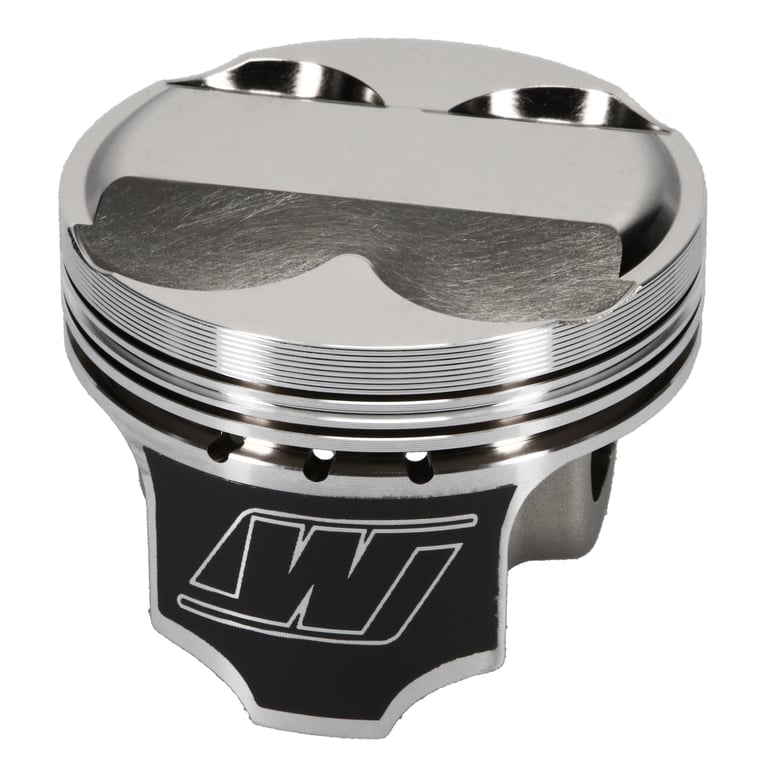

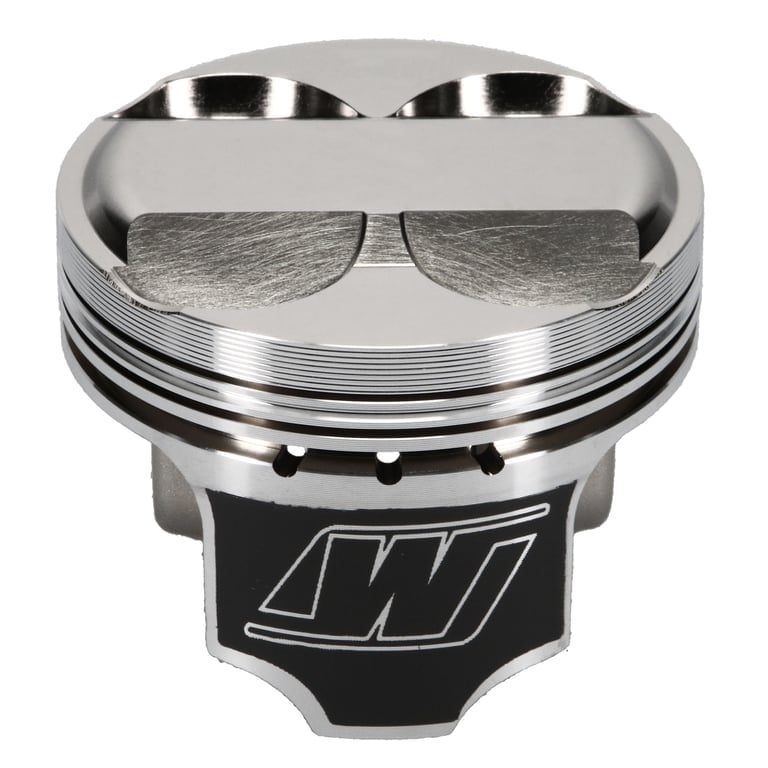

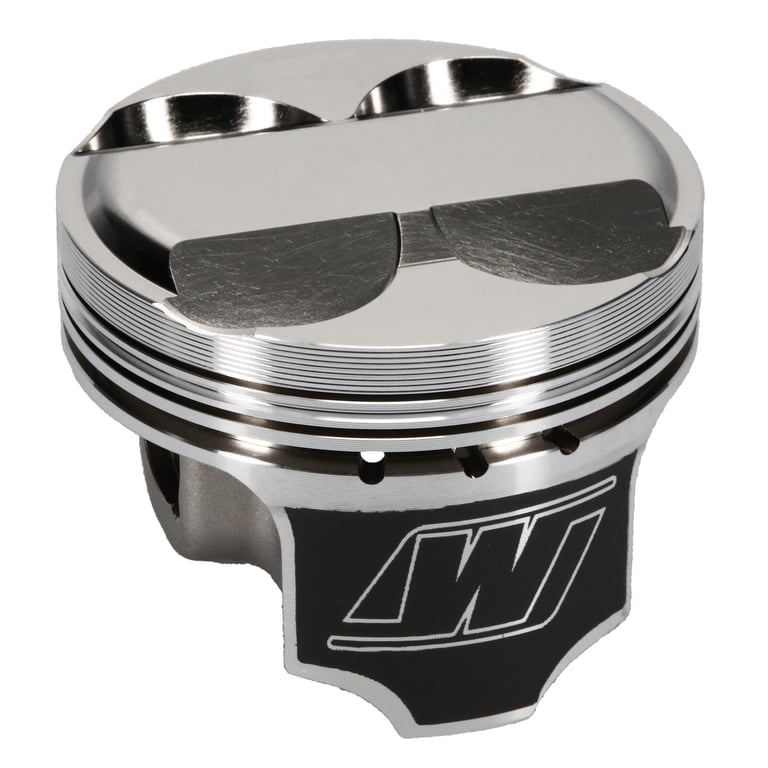

Wiseco Professional Honda B18 Piston Set of 4 - 81.25 mm Bore - 30.00 mm CH, 5.00 CC
Wiseco Professional Honda B18 Piston Set of 4 - 81.25 mm Bore - 30.00 mm CH, 5.00 CC
Wiseco Professional Honda B18 Piston Set of 4 - 81.25 mm Bore - 30.00 mm CH, 5.00 CC
Wiseco Professional Honda B18 Piston Set of 4 - 81.25 mm Bore - 30.00 mm CH, 5.00 CC

Wiseco Professional Honda B18 Piston Set of 4 – 30.00 mm CH, 5.00 CC

$1,360.69

or 4 interest-free payments of $340.17 with Afterpay

Available to order – dispatched in 1-2 business days

Bore 81.25 mm · Compression height 30.00 mm · Volume 5.00 cc · Set of 4 · rings included · wrist pins included

Heavy / oversize item — freight quoted to your addressOrder now and we will confirm the exact delivery cost to your address before dispatch — no guessed freight, you only ever pay the real rate. Prefer a price first? Contact us for a freight quote.
Freight quoted after you order - we confirm the cost to your address before dispatch
Check fitment by rego or VIN
Secure checkout: Square · PayPal · Afterpay · Apple Pay · Google Pay
Willys Workshop · Oxley & Warana, QLD
SKU: N/A Categories: , , , , , Brand:
Returns within 30 days
12 Month Warranty
Tuning & Fitment Available

Complete the job

Fast AU-Wide Shipping

Returns within 30 days

12 month warranty

Will it fit your vehicle?

MakeModelSeriesYearsEngine
Honda————

A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.

Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.

Check my fitmentor call(07) 5619 7869

Description

Wiseco Professional Series forged piston sets for the Honda B18, offered in 2 bore sizes: 81.25 mm and 82.00 mm. Every option shares the 30.00 mm (1.181 in) compression height and +5.00 cc dome. Each set comes with rings and wrist pins.

What’s in the box

  • 4 forged pistons
  • 4 wrist pins (21.00 mm / 0.827 in diameter, 5115 steel, floating)
  • Piston ring set

Matching it to your Honda B18

Crown volume is quoted as +5.00 cc: a positive figure means a dome that takes volume out of the combustion chamber. Work out the compression ratio for your combination (chamber volume, gasket bore and thickness, deck clearance) before you order.

The bore size is the finished bore these pistons are made for, so have the block measured and then bored and honed to suit, with piston-to-wall clearance set to Wiseco’s figure for the option you choose.

Material: 2618 aluminium, the low-silicon alloy usually chosen for boosted and high-load engines (it needs more piston-to-wall clearance than 4032).

Ring grooves: 1 mm top, 1.2 mm second and 3 mm oil.

Options and part numbers

Option Wiseco part no.
81.25 mm K566M8125
82.00 mm K566M82

Specifications (all options)

Compression Height 30.00 mm
Engine Detail Honda B18
Forging Type Positive Dome
Oil Ring Thickness 3 mm
Piston Material 2618
Piston Quantity 4
Piston Volume 5.00 cc
Ring Set Included Yes
Second Compression Ring Thickness 1.2 mm
Skirt Coating Yes
Top Compression Ring Thickness 1 mm
Wrist Pin Included Yes
Wrist Pin Material 5115
Wrist Pin Outer Diameter 0.8268 in
Wrist Pin Style Floating

Boostline conrods listed for this engine family: Boostline Connecting Rod Kit | Honda B18A 137mm | ARP2000, Boostline Connecting Rod Kit | Honda B18C 138mm | ARP2000, Boostline Connecting Rod Kit | Honda B18A 137mm | ARP625+. Match the rod length to the pistons before you order.
