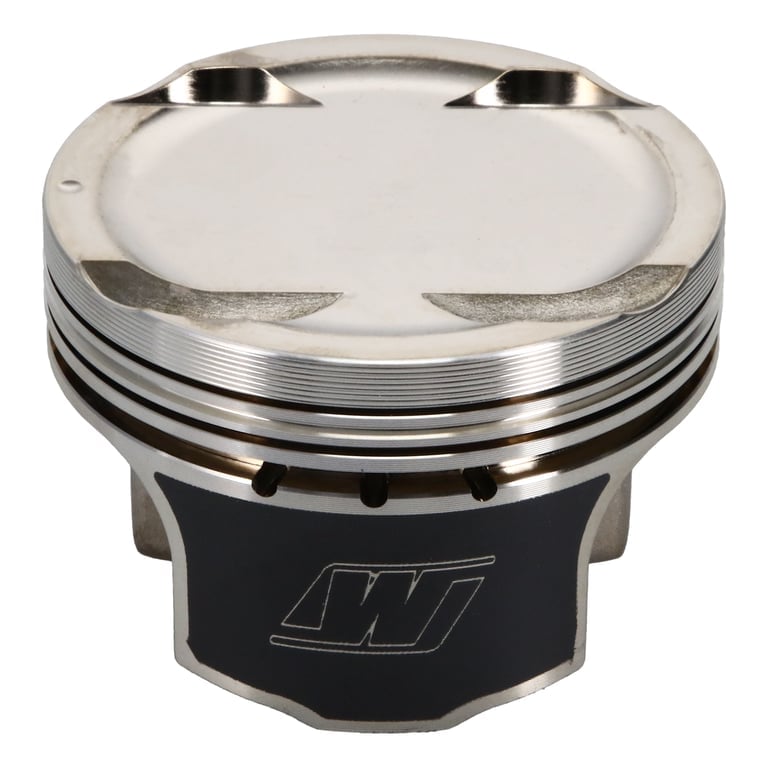

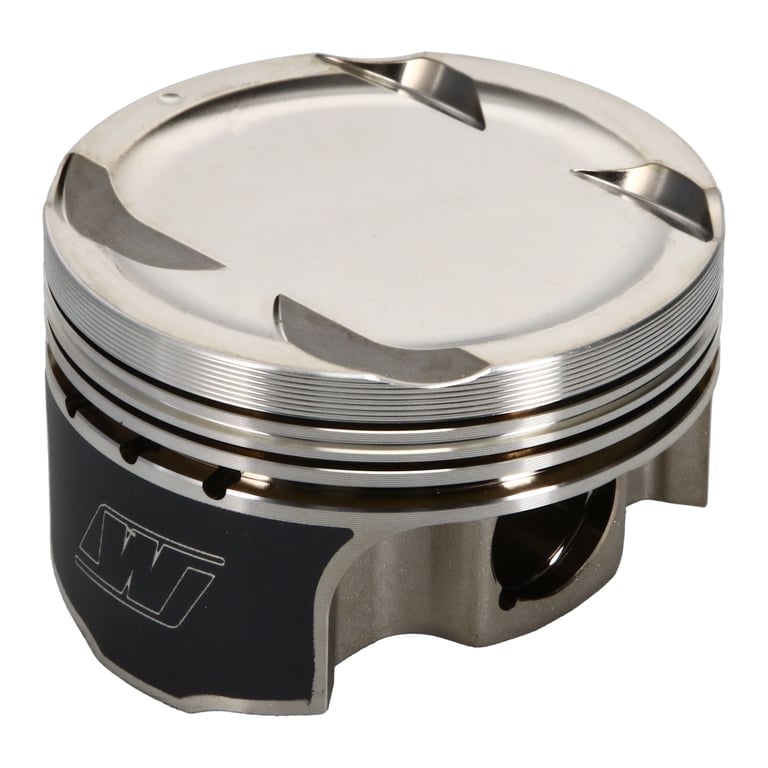

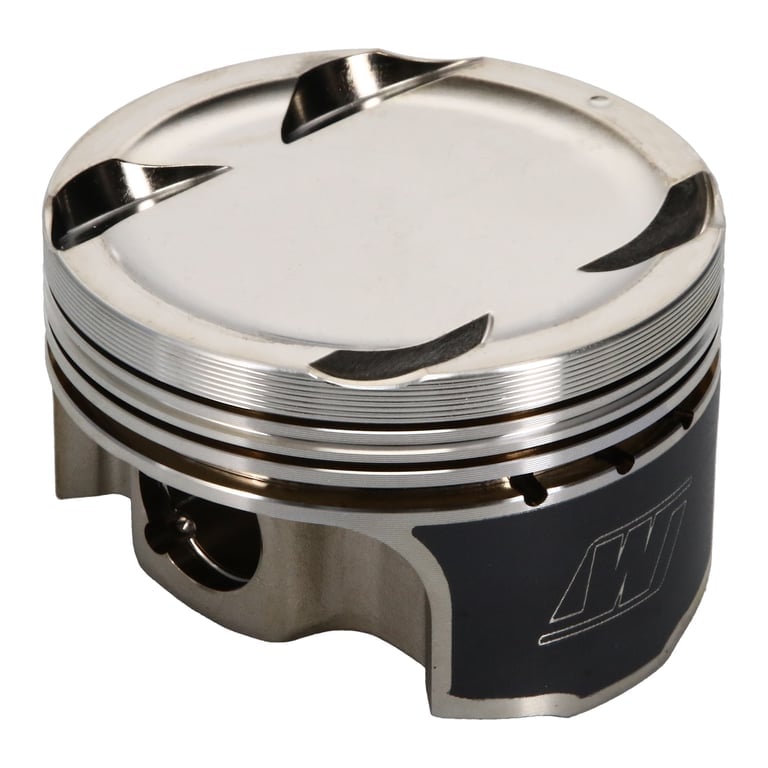

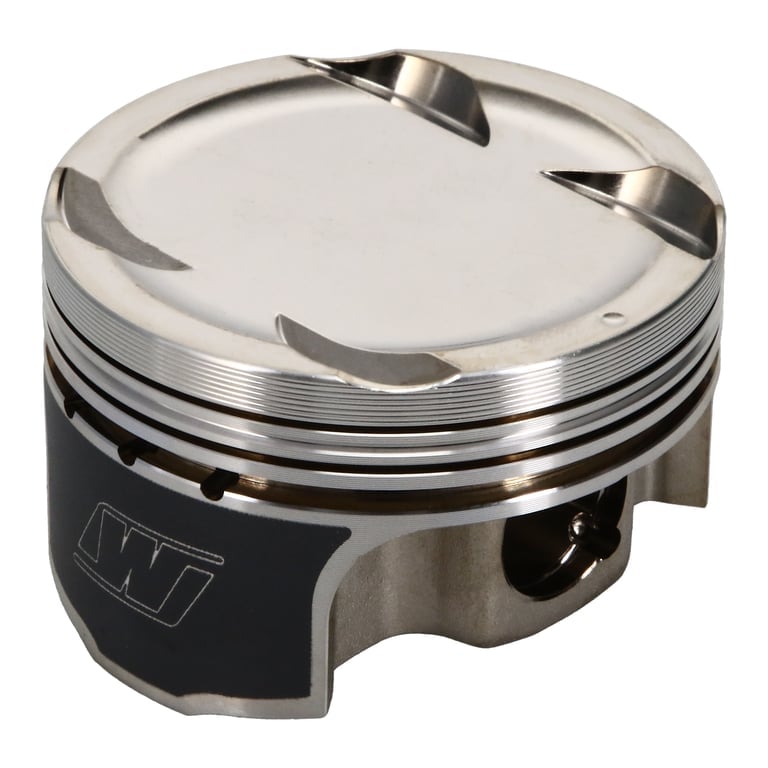

Wiseco Professional Honda B16 Piston Set of 4 – 30.00 mm CH, -8.00 CC
$1,360.69
or 4 interest-free payments of $340.17 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
Bore 81.00 mm · Compression height 30.00 mm · Volume -8.00 cc · Set of 4 · rings included · wrist pins included
Complete the job
Fast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| Honda | — | — | — | — |
A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description
Wiseco Professional Series forged piston sets for the Honda B16, offered in 3 bore sizes: 81.00 mm, 81.50 mm and 82.00 mm. Every option shares the 30.00 mm (1.181 in) compression height and -8.00 cc crown volume. Each set comes with rings and wrist pins.
What’s in the box
- 4 forged pistons
- 4 wrist pins (21.00 mm / 0.827 in diameter, 9310 steel, floating)
- Piston ring set
Matching it to your Honda B16
Crown volume is quoted as -8.00 cc: Wiseco use a negative figure when the dish or valve reliefs add volume to the combustion chamber. Work out the compression ratio for your combination (chamber volume, gasket bore and thickness, deck clearance) before you order.
The bore size is the finished bore these pistons are made for, so have the block measured and then bored and honed to suit, with piston-to-wall clearance set to Wiseco’s figure for the option you choose.
Material: 2618 aluminium, the low-silicon alloy usually chosen for boosted and high-load engines (it needs more piston-to-wall clearance than 4032).
Ring grooves: 1 mm top, 1.2 mm second and 3 mm oil.
Options and part numbers
| Option | Wiseco part no. |
|---|---|
| 81.00 mm | K673M81 |
| 81.50 mm | K673M815 |
| 82.00 mm | K673M82 |
Specifications (all options)
| Compression Height | 30.00 mm |
|---|---|
| Engine Detail | Honda B16 |
| Forging Type | FLAT |
| Oil Ring Thickness | 3 mm |
| Piston Material | 2618 |
| Piston Quantity | 4 |
| Piston Volume | -8.00 cc |
| Ring Set Included | Yes |
| Second Compression Ring Thickness | 1.2 mm |
| Skirt Coating | Yes |
| Top Compression Ring Thickness | 1 mm |
| Wrist Pin Included | Yes |
| Wrist Pin Material | 9310 |
| Wrist Pin Outer Diameter | 0.8268 in |
| Wrist Pin Style | Floating |
Boostline conrods listed for this engine family: Boostline Connecting Rod Kit | Honda B18A 137mm | ARP2000, Boostline Connecting Rod Kit | Honda B18C 138mm | ARP2000, Boostline Connecting Rod Kit | Honda B18A 137mm | ARP625+. Match the rod length to the pistons before you order.
More: Honda B-Series forged pistons · all performance pistons · Wiseco
Shipped Australia-Wide
- Dispatched from within Australia with tracking.
- Available to order – usually ships in 2–3 weeks.
- Freight is quoted after you order – we confirm the cost to your address before dispatch.
- Delivery usually takes 2–10 business days after dispatch, depending on your location.
- Need your tracking number? Once your order has shipped, email sales@willysworkshop.com.au with your order number and we’ll send you the carrier and tracking details.
Freight question? Call us on (07) 5619 7869.
Additional information
| Make | Honda |
|---|---|
| Bore size | 81.00 mm, 81.50 mm, 82.00 mm |
Warranty: 12 months from Willys Workshop
Sold and warranted by Willys Workshop. Parts carry our 12-month warranty against defects, from the date of purchase or installation (whichever is later), subject to any manufacturer terms and fair wear and tear (Terms & Conditions, clause 7.1(b)). This is in addition to your rights under the Australian Consumer Law, which cannot be excluded.
- 30-day change-of-mind returns on eligible items: unused, uninstalled and in the original packaging, with a Return Authorisation from us first. A 15% restocking fee applies and return postage is at your cost.
- Special-order or imported-to-order items, electrical parts, ECUs and tuners once registered, connected or flashed, parts that have been fitted or modified, and clearance items can’t be returned for change of mind. Your rights for faulty goods still apply.
- Refunds are made to your original payment method within 14 business days of us receiving and inspecting the return.
Full details: Returns & Refund Policy and Terms & Conditions.
Warranty claims are coordinated through Willys Workshop. Email sales@willysworkshop.com.au or call Warana (07) 5619 7869 / Oxley (07) 3377 3421 with your order number and a description of the issue.
