Thermal Zero | Holset HX Super 9, HE351CW & HY35W Turbo Blanket Lava
$414.00
or 4 interest-free payments of $103.50 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
The blanket efficiently covers the turbine housing while giving the wastegate arm assembly full range of motion. This blanket is designed to fit the OEM and similar aftermarket HE351CW turbochargers.
Fast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine | Notes |
|---|---|---|---|---|---|
| Dodge / Ram | Cummins 2nd Gen (1994-2002) | — | 1994 – 1998 | 6BT | HX Super 9 / HE351CW / HY35W turbo |
| Dodge / Ram | Cummins 2nd Gen (1994-2002) | — | mid-1998 – 2002 | ISB | HX Super 9 / HE351CW / HY35W turbo |
| Dodge / Ram | Ram 2500-3500 | Cummins 3rd Gen (2003-2007) | 2003 – 2007 | ISB | HX Super 9 / HE351CW / HY35W turbo |
| Dodge / Ram | Ram 2500-3500 | Cummins 4th Gen (2007.5-2018) | mid-2007 – 2018 | ISB 6.7L | HX Super 9 / HE351CW / HY35W turbo |
Years are as listed by the manufacturer/supplier and may be US model years for US-built trucks.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description

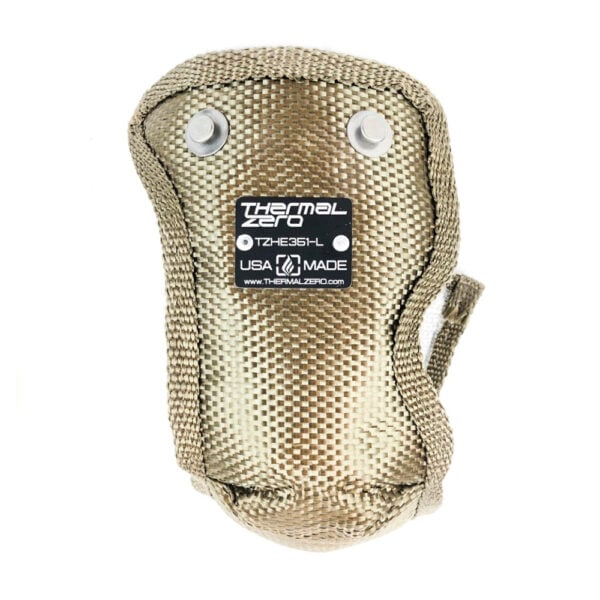

Thermal Zero | Holset HX Super 9, HE351CW & HY35W Turbo Blanket Lava
Specifically designed to fit the HX Super 9 performance & HE351CW turbocharger found on OEM 04.5-09 DODGE RAM trucks with the 5.9L 24V.

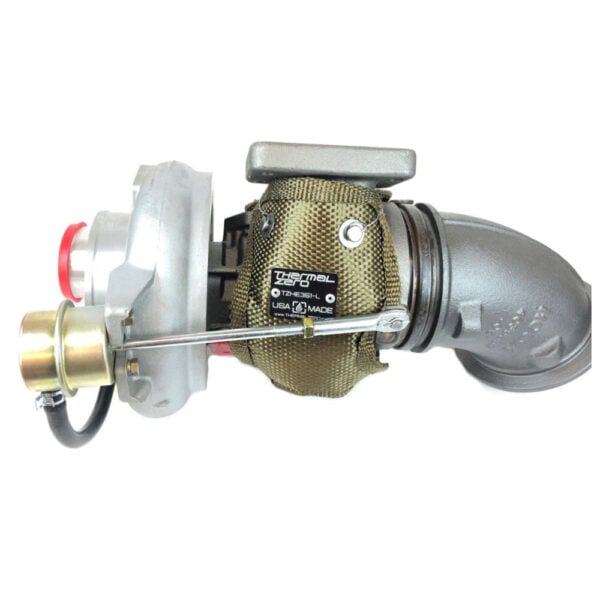

The blanket efficiently covers the turbine housing while giving the wastegate arm assembly full range of motion.
This blanket is designed to fit the OEM and similar aftermarket HE351CW turbochargers.
Their Lava line of blankets are different from their other turbo blankets in that they feature an outer jacketing that is made from an extremely heavy duty and high quality pulverized lava rock fiber instead of silica impregnated fiber.
This lava material is actually different than what any other turbo blanket manufacturer uses in that it features an aluminum bonded layer on the inside of the blanket to further reflect the small amount of radiant heat which makes it through the ceramic layer.
With this combination of materials we have seen up to 90% efficiency out of a Lava blanket on certain applications.
Due to the durability and extremely high heat rating (3000°F) of the Lava material; this blanket is ideal for applications where there is top mount turbo manifold or or heat sources which could come in contact with the outside of the blanket.
Since vibration on a turbocharger is inevitable we have created a more durable design.
Our turbo blankets feature a knitted wire mesh inner layer that separates the insulation material from the turbocharger housing, greatly increasing durability and reducing breakdown.
Installing a Thermal Zero Lava Turbo blanket will cut down up to 90% of direct heat emitted from your turbocharger.
In turn this will allow the turbo to spool faster and be more efficient.
Not sure if this blanket will fit your turbo. Check the known good fit turbo models below or measure your turbo and check the measurement picture above to verify it will be a good fit.
| Suggested Turbocharger Models: | ||||
| Holset HE351CW | 4036835 | HY35W | 4043600 | 4089797 |
| 4089673 | 4037001 | 4037002 | 5143256AA | R5143256AA |
| 4043600R | ||||
All Thermal Zero blankets are hand made here in Cincinnati, Ohio USA.
Shipped Australia-Wide
- Dispatched from within Australia with tracking.
- Same-day dispatch on in-stock orders placed before 11am AEST, Monday–Friday.
- Shipping is calculated at checkout based on size, weight and your delivery address.
- Delivery usually takes 2–10 business days after dispatch, depending on your location.
- Need your tracking number? Once your order has shipped, email sales@willysworkshop.com.au with your order number and we’ll send you the carrier and tracking details.
Freight question? Call us on (07) 5619 7869.
Thermal Zero | Holset HX Super 9, HE351CW & HY35W Turbo Blanket Lava Specifically designed to fit the HX Super 9 performance & HE351CW turbocharger found on OEM 04.5-09 DODGE RAM trucks with the 5.9L 24V.
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 120 × 30 × 25 cm |
