Have it fitted at Willys
We fit parts at our Oxley and Warana workshops. Order the part and we'll book you in, or ask for a fitted price first.
Get a fitting quote- Special order – no change-of-mind returns
- 12 month warranty
- Fitting available
Power Driven Diesel Turbochargers Complete Turbochargers
Power Driven Diesel | Borg Warner K27 Turbocharger
- Fits Cummins 2nd Gen (1994-2002)
- Fits 6BT
- Fits ISB
$3,234.00
Including GST
Available on back-order
Zip and humm are available over the phone: (07) 5619 7869
Will it fit your vehicle?
| Make | Model | Series | Years | Engine | Notes |
|---|---|---|---|---|---|
| Dodge / Ram | Cummins 2nd Gen (1994-2002) | — | 1994 – 1998 | 6BT | direct fit; may need to clock turbo |
| Dodge / Ram | Cummins 2nd Gen (1994-2002) | — | mid-1998 – Jul 2002 | ISB | needs Cummins 3927811 cast elbow + 3903652 v-clamp |
Years are as listed by the manufacturer/supplier and may be US model years for US-built trucks.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Check my fitmentor call(07) 5619 7869or text0485 885 957oremail us
Description

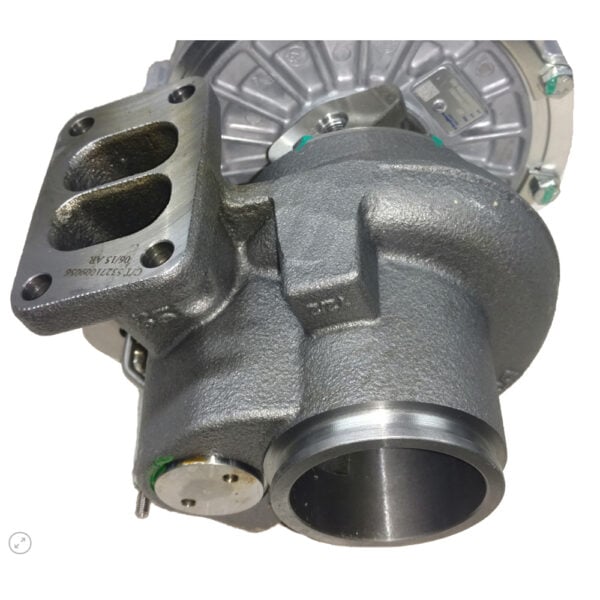

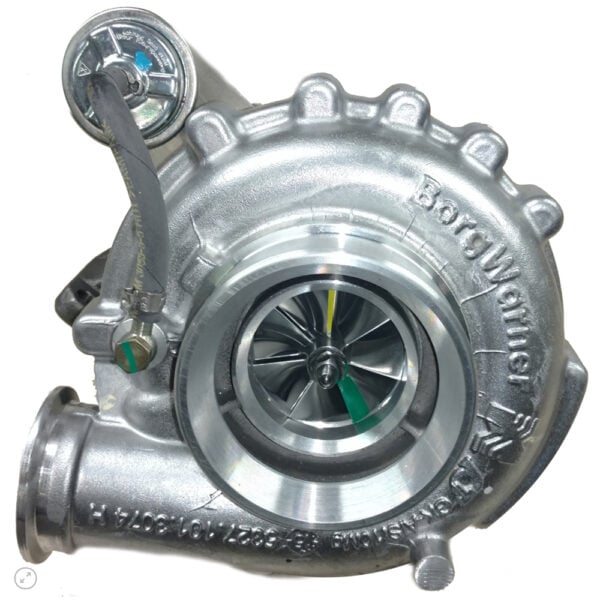

Power Driven Diesel | Borg Warner K27 Turbocharger
Borg Warner Turbos K27 replacement for the Holset HX35W turbocharger.
The K27 turbocharger is capable of supporting diesel trucks up to 450HP.
Featuring a 57.2/83.7mm Forged Milled Wheel (FMW). The 7/7-blade compressor is made to resist low- and high-cycle fatigue.
The 70/58.83mm 12 blade Inconel turbine is a made for quick-response.
The turbine wastegate housing is a twin-volute, and an adjustable wastegate actuator is preset at 26 PSI (325hp), which is safe up to 40PSI (450hp) with a Power Driven Diesel Turbo Tuner.
Like the Holset, the oil inlet is a threaded M12 and oil drain is threaded M8.
57.2/83.7mm Forged Milled Wheel (Compressor)
• 7/7-blade design compressor
• 70/58.83mm 12 Blade Inconel Wheel (Turbine)
• K27 will replace HX35 Part Numbers Below:
o 3538881, 3538882, 3538883, 3538884, 3539009, 3539010, 3539369, 3539371, 3539373, 3539911, 3592202, 3592766, 3597911, 3597912, 3599464, 3802881, 3802882, 4090050
1994-1998 Direct Fitment – No modifications required, may just need to clock turbo
1998.5-2002.5 Cummins with a HX35W turbochargers, A Cummins 3927811 cast elbow and 3903652 v-clamp is needed to use you current downpipe.
1998.5-2002.5 Cummins with a HY35W, A Cummins 3927811 cast elbow and 3903652 v-clamp is needed to use you current downpipe. Replacement of the two studs installed into the original turbine inlet flange will also be needed
2003-2007.5 Cummins with either a HY35W, HE351W, or HE351CW a fabricated or adaptor for the compressor discharge and for the turbine discharge are necessary. With a HE351CW turbocharger, a boost fooler, or resistor is also necessary.
(Does not fit well with industrial (3rd gen) close style exhaust manifold.
Specifications
| Brand | Power Driven Diesel |
|---|---|
| SKU | PDDK27 |
| Shipping weight | 18 kg |
| Shipping dimensions | 45 × 40 × 40 cm |
Warranty: 12 months from Willys Workshop
Sold and warranted by Willys Workshop. Parts carry our 12-month warranty against defects, from the date of purchase or installation (whichever is later), subject to any manufacturer terms and fair wear and tear (Terms & Conditions, clause 7.1(b)). This is in addition to your rights under the Australian Consumer Law, which cannot be excluded.
- 30-day change-of-mind returns on eligible items: unused, uninstalled and in the original packaging, with a Return Authorisation from us first. A 15% restocking fee applies and return postage is at your cost.
- Wrong fit: if a part covered by our Fitment Guarantee doesn’t fit, we pay the return freight both ways and there’s no restocking fee.
- Special-order or imported-to-order items, electrical parts, ECUs and tuners once registered, connected or flashed, parts that have been fitted or modified, and clearance items can’t be returned for change of mind. Your rights for faulty goods still apply.
- Refunds are made to your original payment method within 14 business days of us receiving and inspecting the return.
Full details: Returns & Refund Policy and Terms & Conditions.
Warranty claims are coordinated through Willys Workshop. Email sales@willysworkshop.com.au or call Warana (07) 5619 7869 / Oxley (07) 3377 3421 with your order number and a description of the issue.
Shipped Australia-Wide
- Ships direct from our supplier in NSW with tracking.
- Road freight is calculated at checkout for your address.
- Delivery usually takes 2–10 business days after dispatch, depending on your location.
- Need your tracking number? Once your order has shipped, email sales@willysworkshop.com.au with your order number and we’ll send you the carrier and tracking details.
Freight question? Call us on (07) 5619 7869.
Power Driven Diesel | Borg Warner K27 Turbocharger Borg Warner Turbos K27 replacement for the Holset HX35W turbocharger. The K27 turbocharger is capable of supporting diesel trucks up to 450HP. Featuring a 57.2/83.7mm Forged Milled Wheel (FMW).
