Power Driven Diesel | 5×016 VCO 145° Nozzle – Set
$786.00
or 4 interest-free payments of $196.50 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
Up to 200 horsepower over stock Set of 6 5X.016 VCO 145° Compatible for years 1991-1998 if installed on 7mm bodies Budget builder injector nozzles will come with full installation kit.
Fast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine | Notes |
|---|---|---|---|---|---|
| Dodge / Ram | Cummins 1st Gen (1989-1993) | — | 1991 – 1993 | 6BT | 7mm injector bodies only |
| Dodge / Ram | Cummins 2nd Gen (1994-2002) | — | 1994 – 1998 | 6BT | 7mm injector bodies only |
Years are as listed by the manufacturer/supplier and may be US model years for US-built trucks.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description

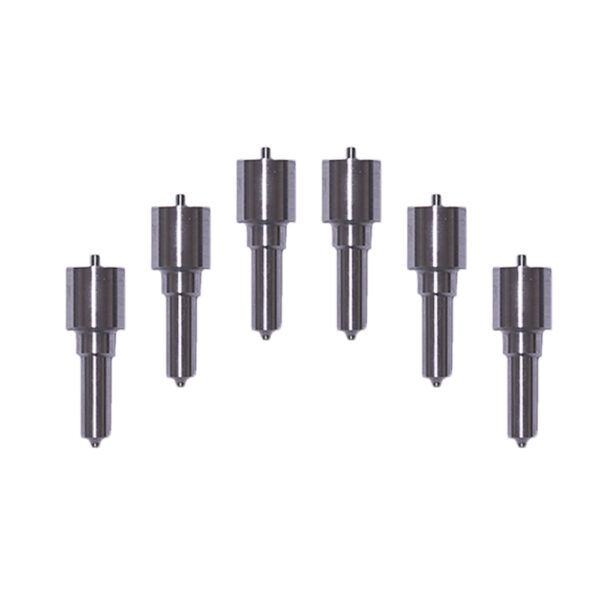

Power Driven Diesel | 5×016 VCO 145° Nozzle – Set
Power Driven Diesel’s Budget Builder Nozzles are a proven performance nozzle.
- Up to 200 horsepower over stock
- Set of 6
- 5X.016 VCO 145°
- Compatible for years 1991-1998 if installed on 7mm bodies
- Budget builder injector nozzles will come with full installation kit.
Installation Kit Includes:
- Copper sealing washers
- Horseshoe/fuel return washers
- Dust seals
5x.016 VCO 145°
A great nozzle for those who want an increase in power, these nozzles are rated up to 200hp over stock.
5-hole vs. 6-hole vs. 7 hole Injectors
Like countless others, you may be wondering what the difference is between all of the injector sizes/hole counts and surfing the internet to find the answer can often lead to more confusion. We’re here to shed some light on the matter. Per a given flow amount, an injector with a smaller hole count and larger orifice size will penetrate deeper into the piston bowl. Depending on the rpm for the application, this could be an advantage or a drawback. An injector of the same flow with a larger hole count and smaller orifice size will produce a finer spray and penetrate less deeply into the bowl, meaning that it will burn sooner at lower rpm/boost levels. The real world effects of this seem to come in the form of burn efficiency at a given rpm. At low rpm, the 7-hole better disperses fuel into the air charge which results in increased burn efficiency (more power). There is a cross-over point around 2000rpm where the deeper penetration of the 5-hole injector results in better fuel dispersion into the increasingly turbulent air charge, enabling a more complete burn which results in more power. While apparent, these differences are minimal until 3000rpm. The 5-hole style injector is by far the most common and is the best choice for most applications.
Budget Builder Injector Nozzles
Our most popular option for thousands of customers, Our line of budget builder injector nozzles are the same nozzles we use on our budget builder injectors. Available only in the most popular spray pattern.
