Double Duty Diesel Engine Internals Engine Mounts
Motor Mounts: 1980-1997 Ford F250/350 to 12v/24v/CR Cummins
- Fits F250-F450
$1,380.00
Including GST
Available on back-order
or 4 interest-free payments of $345.00 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| Ford | F250-F450 | — | 1980 – 1997 | — |
Years are as listed by the manufacturer/supplier and may be US model years for US-built trucks.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Check my fitmentor call(07) 5619 7869or text0485 885 957oremail us
Motor Mounts: 1980-1997 Ford F250/350 to 12v/24v/CR Cummins If you are looking to do a Cummins swap on your 1980-1997 Ford Truck, these are the mounts for you.
Description
Motor Mounts: 1980-1997 Ford F250/350 to 12v/24v/CR Cummins

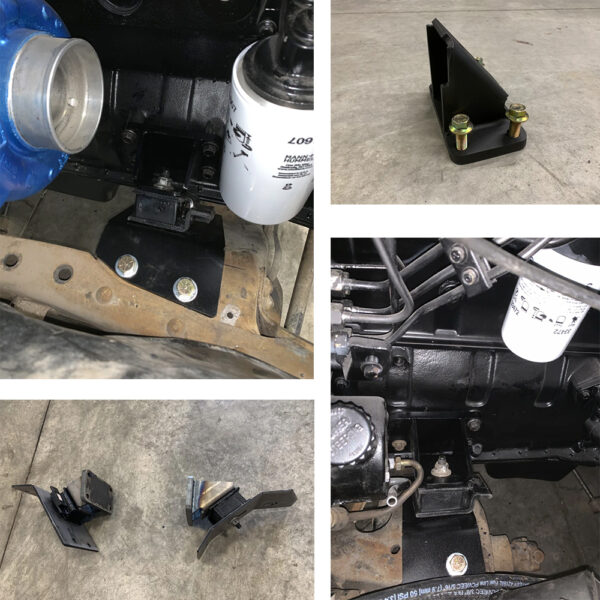

If you are looking to do a Cummins swap on your 1980-1997 Ford Truck, these are the mounts for you. They work with 12v, 24v, and Common Rail Cummins engines. Our motor mounts are direct bolt in (no drilling or cutting required) and utilize a factory 1st Gen Dodge Cummins motor mount bushing.
These mounts will work with Common Rail Cummins engines as well; you will just need to relocate the ECU.
We chose to utilise the factory Dodge bushings because they provide great insulation from the vibration of the Cummins engine and they are readily available, making sourcing and replacing them when they wear out very easy.
Unlike others, these mounts have a built-in relief to fit the power steering hose that threads into the back of the power steering pump on the drivers side of the engine.
These motor mounts require you to “massage” the firewall in order to allow the engine to sit far enough back to utilize the factory, mechanical fan. This is standard with most OBS Ford Cummins conversion motor mounts.
If you are converting a truck that was originally an IDI diesel, you will either have to run electric fans or run a different radiator for the mechanical fan to fit. The stock IDI radiator is way over sized. If you want to run a mechanical fan in an IDI truck, you can run an aftermarket aluminium radiator for an IDI, a 7.3 Powerstroke radiator, 460 gas radiator, or a 1st gen Cummins radiator.
Made in the USA

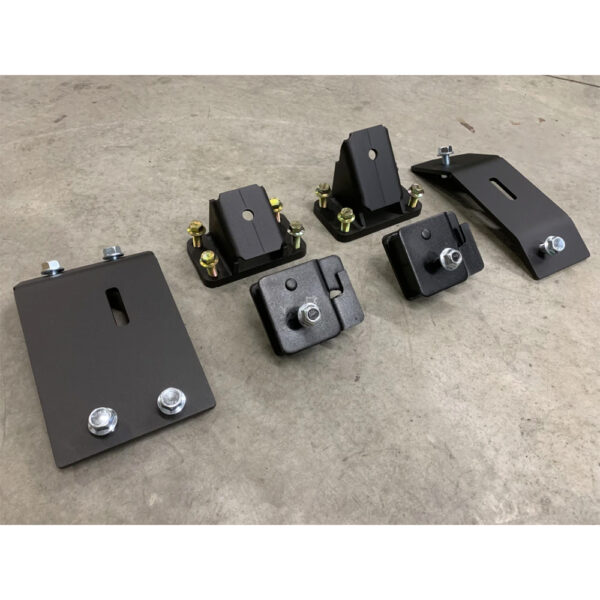

What’s included:
- Frame side motor mount brackets
- Block side motor mount brackets
- Motor mount bushings
- All hardware needed to bolt the motor mounts to the frame and engine
- Installation instructions
- Raw finish
Ordered upon request – 10 days lead time from USA
Specifications
| Part number | CRCMM80-97 |
|---|---|
| In the box | Frame side motor mount brackets; Block side motor mount brackets; Motor mount bushings; All hardware needed to bolt the motor mounts to the frame and engine; Installation instructions; Raw finish |
| Brand | Double Duty Diesel |
| Shipping weight | 1.5 kg |
| Shipping dimensions | 25 × 20 × 12 cm |
