Will it fit your vehicle?
This part is listed to suit:
- MakeDodge
Fitment listings are a guide. For a guaranteed match, send us your rego or VIN and our team will confirm the exact part before you pay.

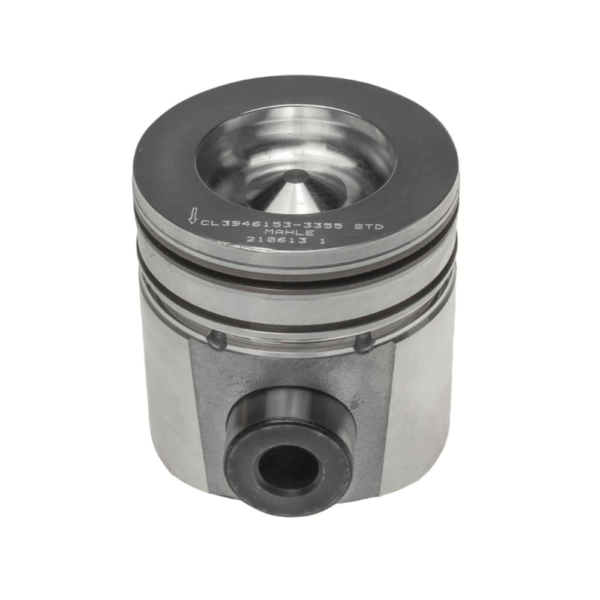

MAHLE | Cummins 5.9L VP44 SO Engine Dodge Ram 98.5-02 – 020′ Over Piston (6)
$1,668.00
In stock — order before 11am AEST for same-day shipping
MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder.
Secure checkout — Square · PayPal · Apple Pay · Google Pay
Willys Workshop · Oxley & Warana, QLD
Easy returns within 14 days
12 Month Warranty
Tuning & Fitment Available
Fast AU-Wide Shipping
Easy returns within 14 days
12 month warranty
Description
MAHLE | Cummins 5.9L VP44 SO Engine Dodge Ram 98.5-02 – 020′ Over Piston (6)
Mahle OE 98-02 Dodge Ram 2500/3500 4.035in Bore .020 Oversize Piston Set (Set of 6)
MAHLE Original® pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.
MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder. MAHLE is one of the largest OE piston manufacturers in the world.
| BRAND | MAHLE Original |
| MANUFACTURER’S PART NUMBER | 224-3355WR.020 |
| PART TYPE | Pistons |
| PRODUCT LINE | Mahle Original OE Replacement Pistons |
| PART NUMBER | MAH-2243355WR020 |
| UPC | 27067913609 |
| PISTON RINGS INCLUDED | Yes |
| BORE (IN.) | 4.036 in. |
| BORE (MM) | 102.616mm |
| STROKE | 4.720 in. |
| ENGINE STROKE TYPE | Stock |
| ROD LENGTH | 7.559 in. |
| PISTON STYLE | Dish, with no valve reliefs |
| PISTON MATERIAL | Cast aluminum |
| WRIST PIN STYLE | Press-fit or floating |
| WRIST PIN RETAINERS INCLUDED | Yes |
| WRIST PIN INCLUDED | Yes |
| PIN DIAMETER (IN.) | 1.575 in. |
| FILE FIT | No |
| GAPLESS | No |
| TOP RING THICKNESS | 3.0mm |
| SECOND RING THICKNESS | 2.40mm |
| OIL RING THICKNESS | 4.0mm |
| REMANUFACTURED | No |
| QUANTITY | Sold as a set of 6. |
Shipped Australia-Wide
- Dispatched from within Australia with tracking.
- Same-day dispatch on in-stock orders placed before 11am AEST, Monday–Friday.
- Shipping is calculated at checkout based on size, weight and your delivery address.
- Estimated delivery 2–7 business days depending on your location.
Freight question? Call us on (07) 5619 7869.
MAHLE | Cummins 5.9L VP44 SO Engine Dodge Ram 98.5-02 – 020′ Over Piston (6) Mahle OE 98-02 Dodge Ram 2500/3500 4.035in Bore .020 Oversize Piston Set (Set of 6) MAHLE Original® pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control.
Additional information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 25 × 20 × 12 cm |
