Derale Transmission Transmission Coolers

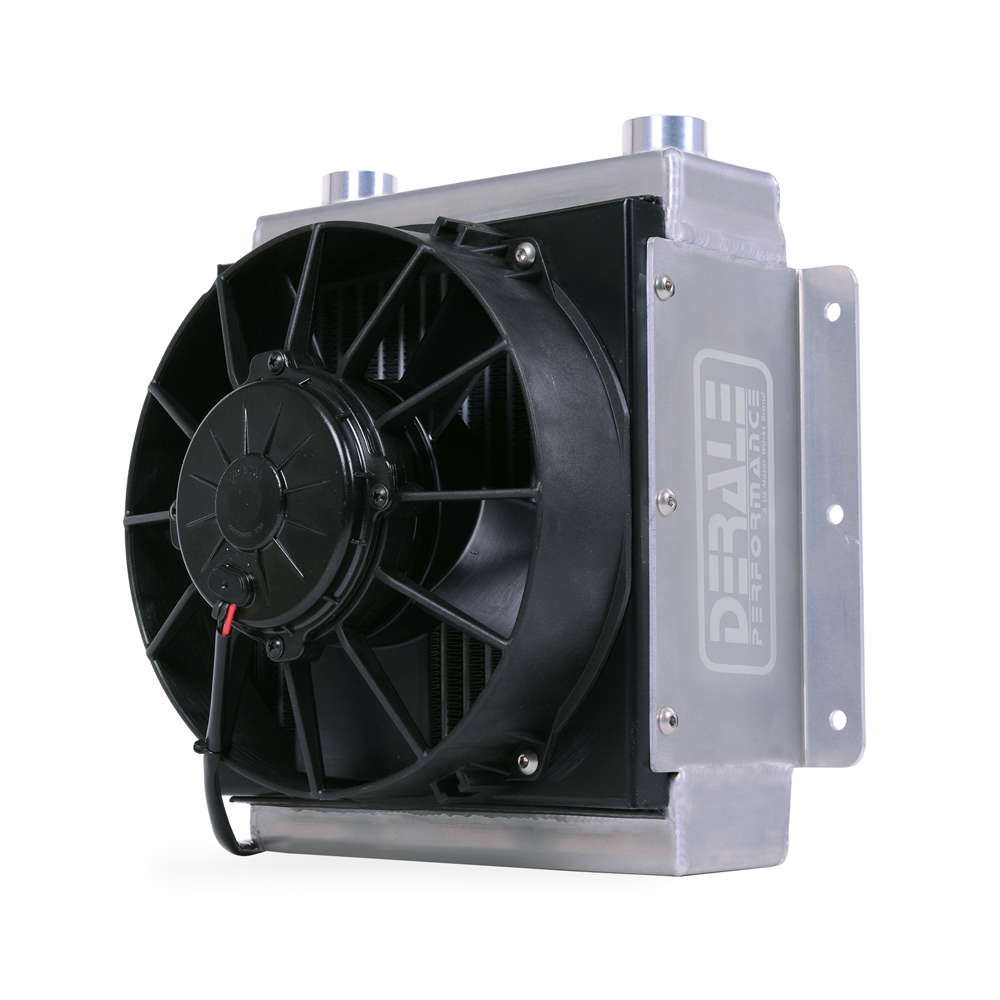

DERALE – Remote Trans Cooler – 18 Row Hi-Flow Racing Remote Fluid Cooler with Single Fan
- Fits Cummins 2nd Gen (1994-2002)
- Fits 6BT
$1,680.00
Including GST
Available to order — exact freight confirmed before dispatch
or 4 interest-free payments of $420.00 with Afterpay on orders up to $2,000Zip and humm are available over the phone: (07) 5619 7869
Will it fit your vehicle?
| Make | Model | Series | Years | Engine | Notes |
|---|---|---|---|---|---|
| Dodge / Ram | Cummins 2nd Gen (1994-2002) | — | 1994 – 1998 | 6BT | generic Derale remote cooler |
Years are as listed by the manufacturer/supplier and may be US model years for US-built trucks.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Check my fitmentor call(07) 5619 7869or text0485 885 957oremail us
Description
DERALE P/N 65861
18 Row Hi-Flow Racing Remote Fluid Cooler with Single Fan, 7/8-14 UNF O-ring
Derale is proud to introduce our latest addition to the remote cooler lineup.
This 18 Row Hi-Flow Racing Cooler is precision TIG welded and features the most efficient tube design in the aftermarket, which supports up to 350 PSI with minimal pressure drop.
Mounted 8″ Electric fan is IP68 certified (Water/Dust Proof) and designed to do its best under the most strenuous conditions.
Perfect for everything from Drag racing to Off-Road.
Specifications
- Inlet(s) size: 7/8″-14 UNF o-ring
- Fan size: 8″
- Amp Draw: 8
- CFM: 755
- Fluid Capacity: 47 oz.

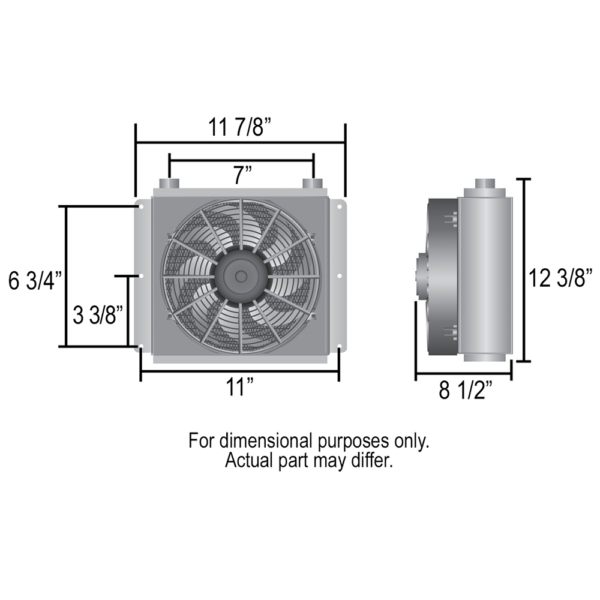

- Inlet Dim.: 7″
- Width: 11 7/8″
- Height: 12-3/8″
- Depth: 8-1/2″
- Mounting: 6-3/4″ x 7-3/16″
- 125,000 BTU’s Per Hour
Features
- 8″ Electric fan supplies optimum airflow
- Dramatically extends engine or transmission life
- Aircraft aluminum grade cooler design
- Designed for puller applications
- Extruded tube design with turbulators for
maximum heat dissipation - Precision TIG welding
- 20 GPM Flow rate
- Supports up to 350 P.S.I., with minimal
pressure drop
Specifications
| Brand | Derale |
|---|---|
| SKU | WW-DDD-00909 |
Warranty: 12 months from Willys Workshop
Sold and warranted by Willys Workshop. Parts carry our 12-month warranty against defects, from the date of purchase or installation (whichever is later), subject to any manufacturer terms and fair wear and tear (Terms & Conditions, clause 7.1(b)). This is in addition to your rights under the Australian Consumer Law, which cannot be excluded.
- 30-day change-of-mind returns on eligible items: unused, uninstalled and in the original packaging, with a Return Authorisation from us first. A 15% restocking fee applies and return postage is at your cost.
- Wrong fit: if a part covered by our Fitment Guarantee doesn’t fit, we pay the return freight both ways and there’s no restocking fee.
- Special-order or imported-to-order items, electrical parts, ECUs and tuners once registered, connected or flashed, parts that have been fitted or modified, and clearance items can’t be returned for change of mind. Your rights for faulty goods still apply.
- Refunds are made to your original payment method within 14 business days of us receiving and inspecting the return.
Full details: Returns & Refund Policy and Terms & Conditions.
Warranty claims are coordinated through Willys Workshop. Email sales@willysworkshop.com.au or call Warana (07) 5619 7869 / Oxley (07) 3377 3421 with your order number and a description of the issue.
