Boostline Connecting Rod Kit | BMW B58B30 148.18mm | ARP625+
$3,227.99
Zip and humm are available over the phone: (07) 5619 7869
Centre-to-centre length 5.834 in · Big end bore 53.610 mm · Pin end bore 22.00 mm · Bolt diameter 3/8 in
Available to order – usually ships in 2-3 weeks
Check fitment by rego or VINFast AU-Wide Shipping
Returns within 30 days
12 month warranty
Will it fit your vehicle?
| Make | Model | Series | Years | Engine |
|---|---|---|---|---|
| BMW | — | — | — | — |
A dash means the listing does not narrow it down that far (for example no build dates are listed). Check with us if your vehicle was built near a model change.
Fitment listings are a guide. Not sure? Send us your rego or VIN and our team will check the part for your vehicle, before or after you order.
Description

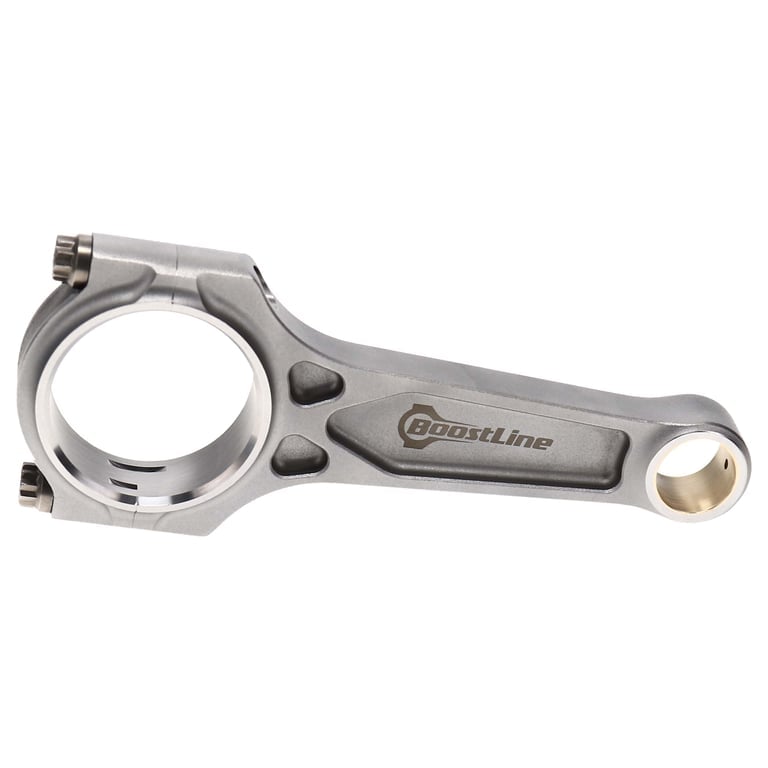

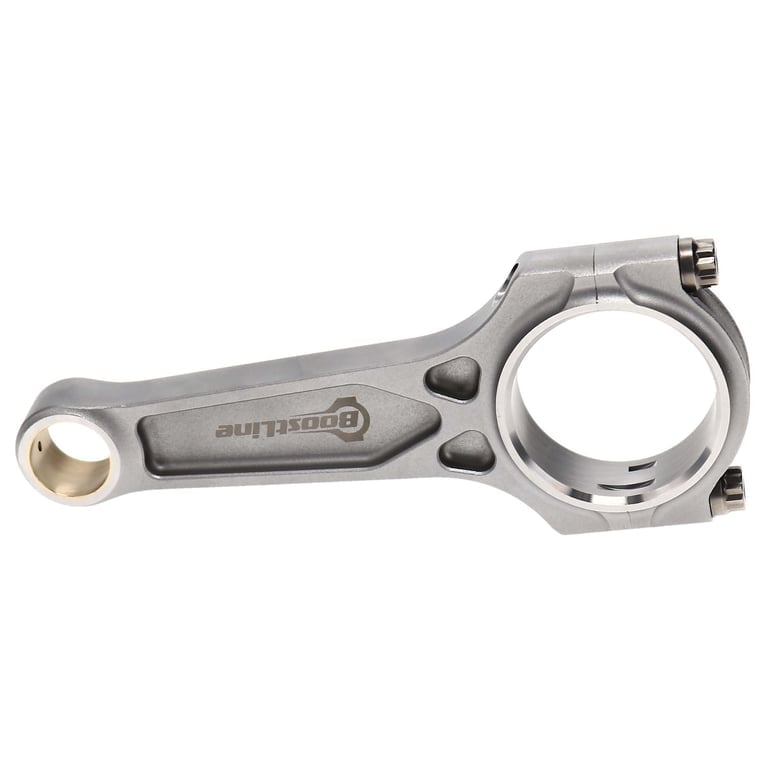

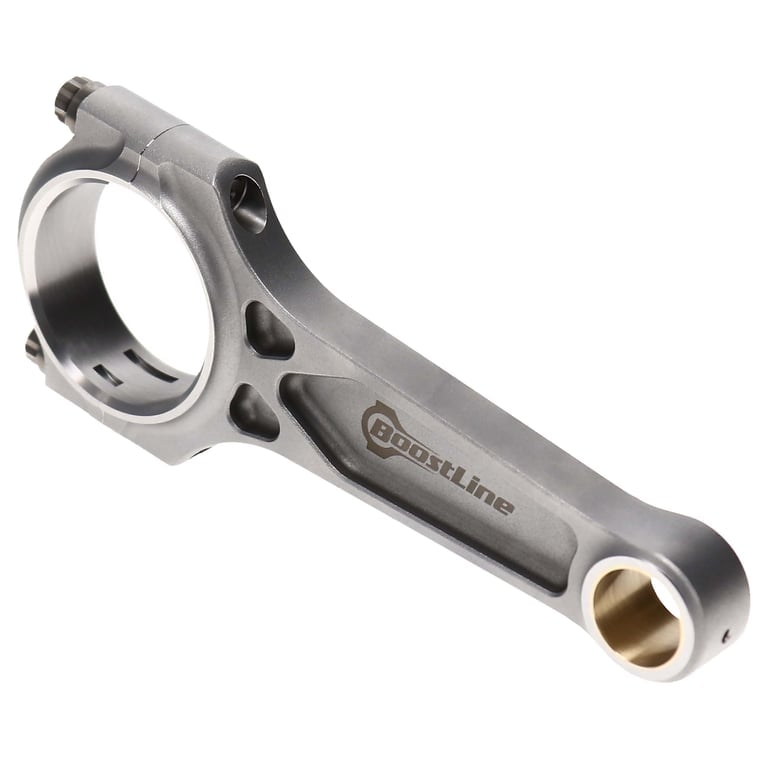

Boostline forged connecting rods for the BMW B58B30: 5.834 in (148.18 mm) centre-to-centre, forged 4340 steel and I-beam design, fitted with ARP 625+ rod bolts (3/8 in).
What’s in the box

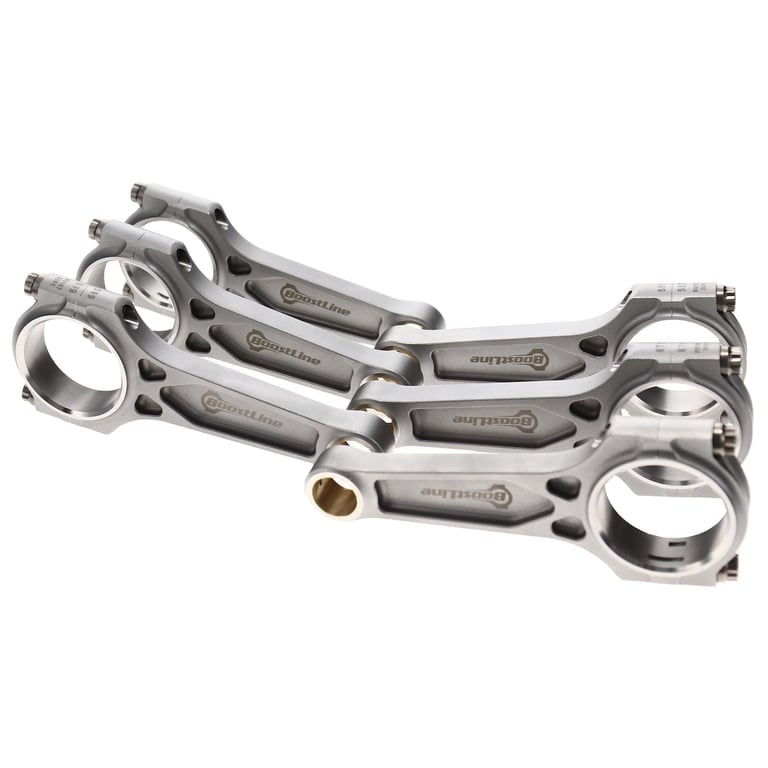

- Boostline connecting rod set (part BM5834-866+)
- ARP 625+ rod bolts
- Bronze pin-end bushings
- CMM inspection card with the measured dimensions
Matching them to your BMW B58B30
Key dimensions: big-end bore 53.610 mm (2.111 in); big-end width 23.90 mm (0.941 in); crank journal 50.00 mm (1.969 in); pin-end bore 22.00 mm (0.866 in).
Check the centre-to-centre length against the rod length your pistons are designed for, the big-end bore and width against your crank, and the pin end against your wrist pin diameter before you order.
Specifications
| Big End Bore | 53.610 mm |
|---|---|
| Big End Width | 23.90 mm |
| Bolt Diameter | 3/8 in |
| Centre-to-centre length | 5.834 in |
| Connecting Rod Journal Diameter | 50.00 mm |
| Connecting Rod Material | Forged 4340 Steel |
| Connecting Rod Type | I-Beam |
| Journal Size | 50.00 mm |
| Main Bearing Bore Diameter | 53.610 mm |
| Material | Forged 4340 Steel |
| Pin End Bore | 22.00 mm |
| Pin End Width | 21.00 mm |
| Rod Type | I-Beam |
More: all Boostline performance conrods · BMW forged pistons · Boostline
Boostline part number: BM5834-866+
