Power Driven Diesel | Add a 300SX-E or Ultimate Towing, Piping Kit 1994-2002 Dodge
This Kit Includes:
- Power Driven Diesel air filter

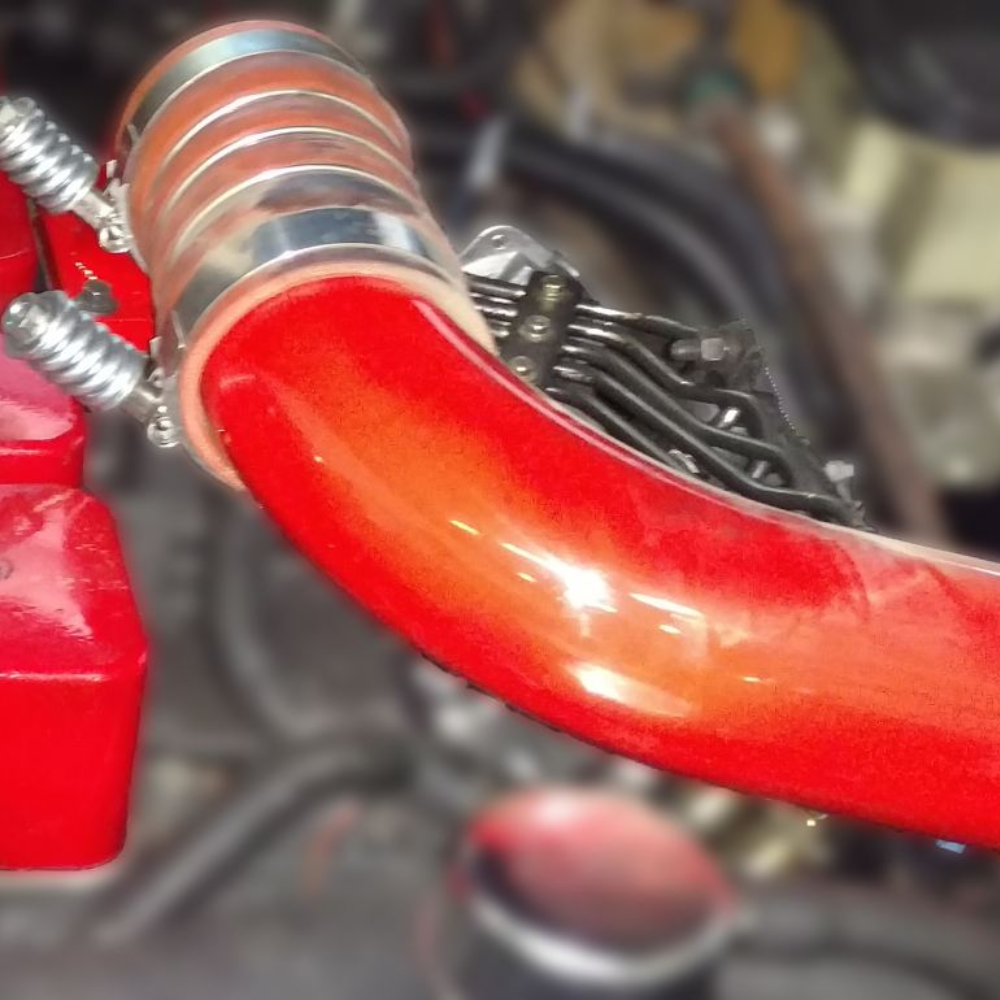

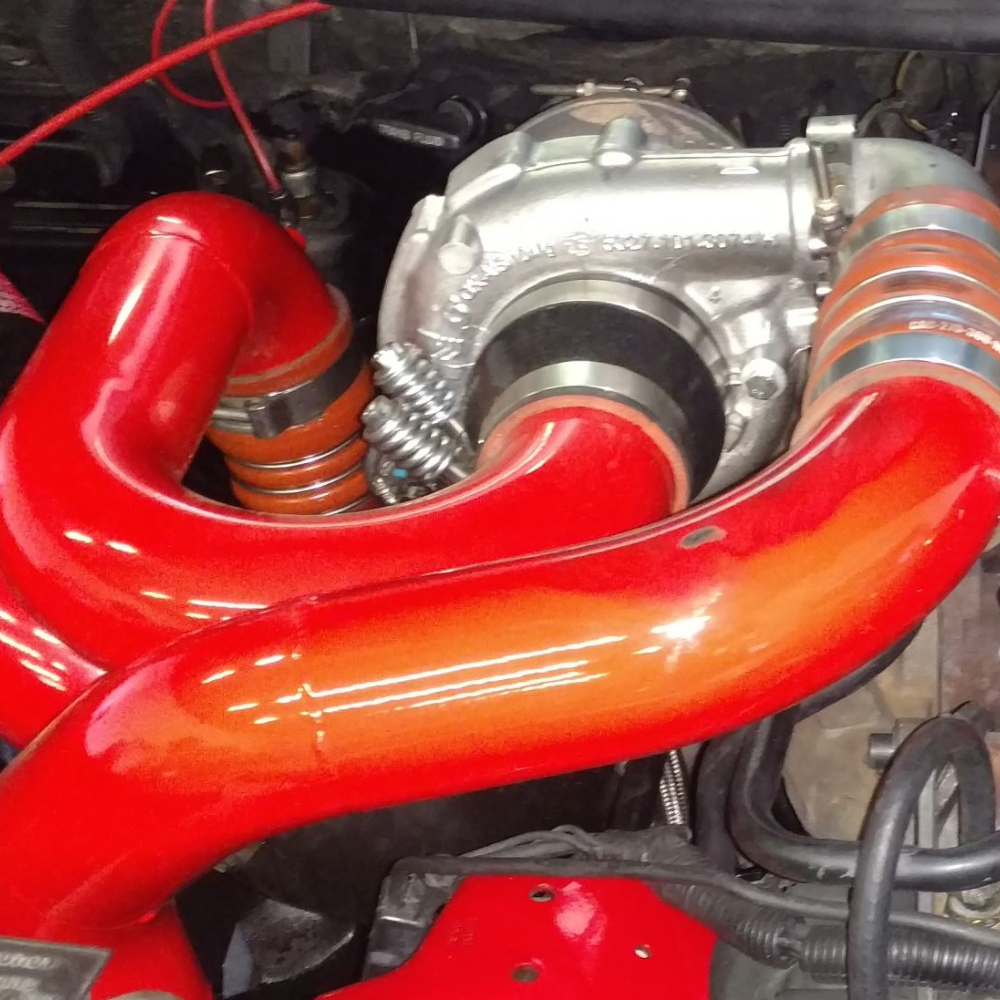

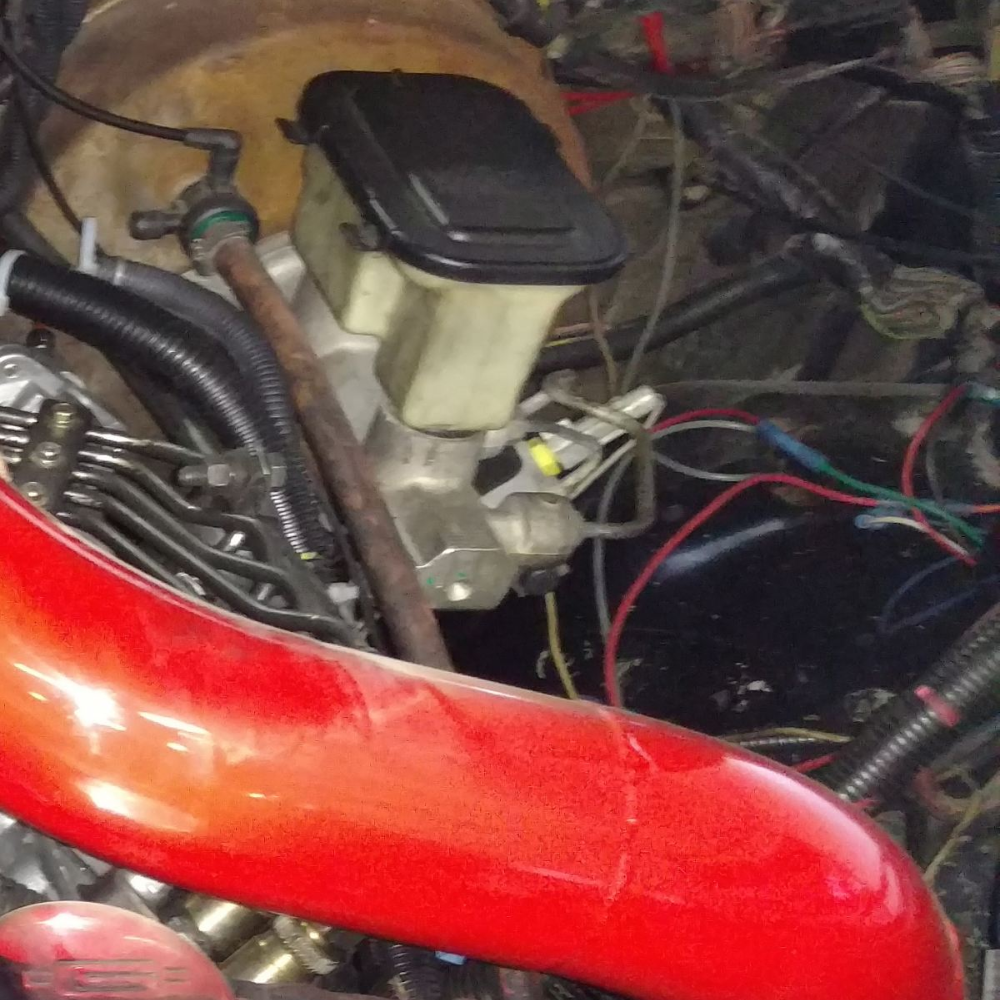

- All Hot Side Turbo Piping
- Stainless braided oil supply lines
- Stainless braided oil drain lines
- Top-quality silicone boots with aramid fibre reinforcing
- Powder coating (optional)
This kit is designed for maximum spool-up, great EGT control while towing all while supporting up to 575HP.
This kit contains the piping required for the “Add a 300SX-E” or “Ultimate Towing” compound kit(s) (Turbos Not Included).
Many turbo systems usually employ a box s475 in their towing kits.
While it does work it is far from ideal.
The turbine wheel in the s475 can support over 1000HP. It doesn’t make sense to suffer the lag of a 1000HP turbine if you are only after 575HP.
When compared to a typical compound kit with an s475 we typically see over 100º EGT drop at the same power levels.
The spool-up is of course much quicker.
The Components in this kit are all top-shelf items.
The silicone boots we use are the best we have found.
We have blown up many different brands of boots over the years but have never been able to blow up one of these! Our clamps are 13mm clamps that have a torque spec 3 times higher than typical clamps.
Basically, we have broken a lot of stuff over the years and have found the highest quality components that will work for years.
Depending on what items you already have you can custom option this kit to get only what you need.
This kit must be used with an aftermarket manifold on 12V trucks.
1998.5-2002.5 Will Need A 94-98 HX35
SKU: 12013692012
