Overview
VCU OVERVIEW

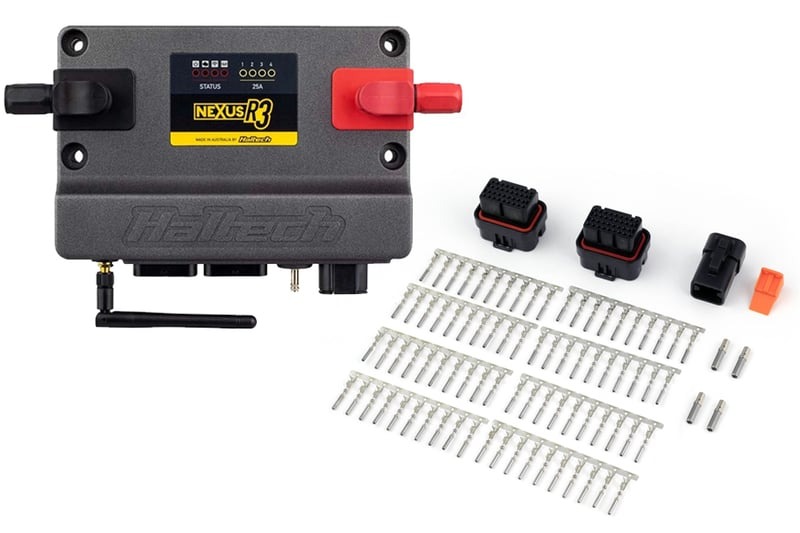

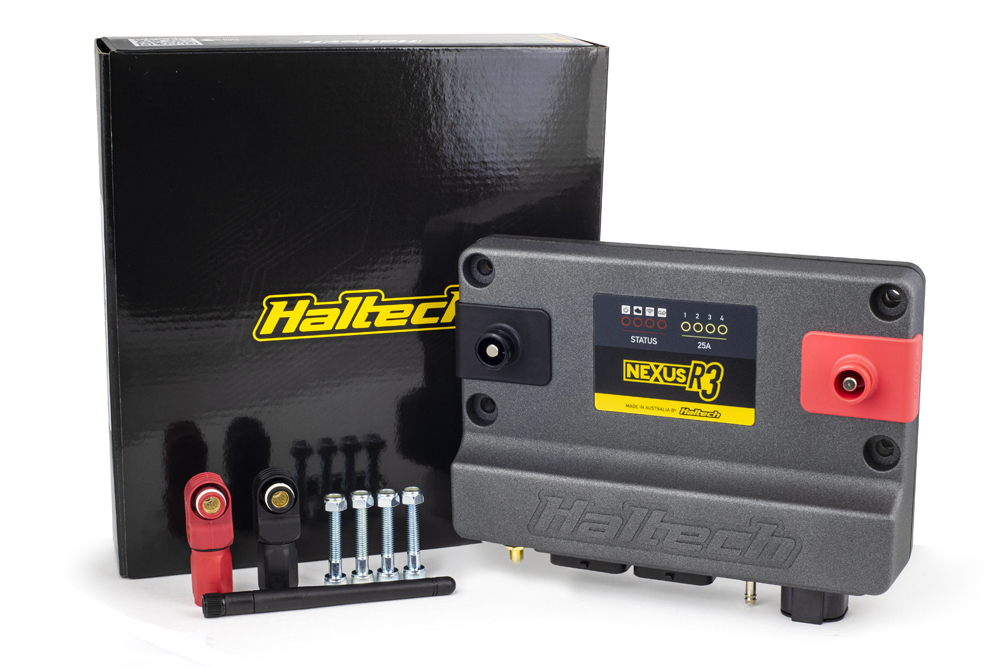

Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
8 x peak/hold injector drivers (can be used as low side drive outputs)
8 x low current ignition outputs (can be used as low side drive outputs)
6 x low side drive outputs, PWM capable (DPOs)
6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
Features
- VCU FEATURES
- Controlled via NSP (Nexus Software Programmer)
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
Note: Haltech products are intended for sanctioned off-road/competition use. Ask our team about compliant options for your application.
