Description
Haltech CAN-bus hardware we install and configure as part of complete motorsport wiring solutions at Willys Workshop.
Overview

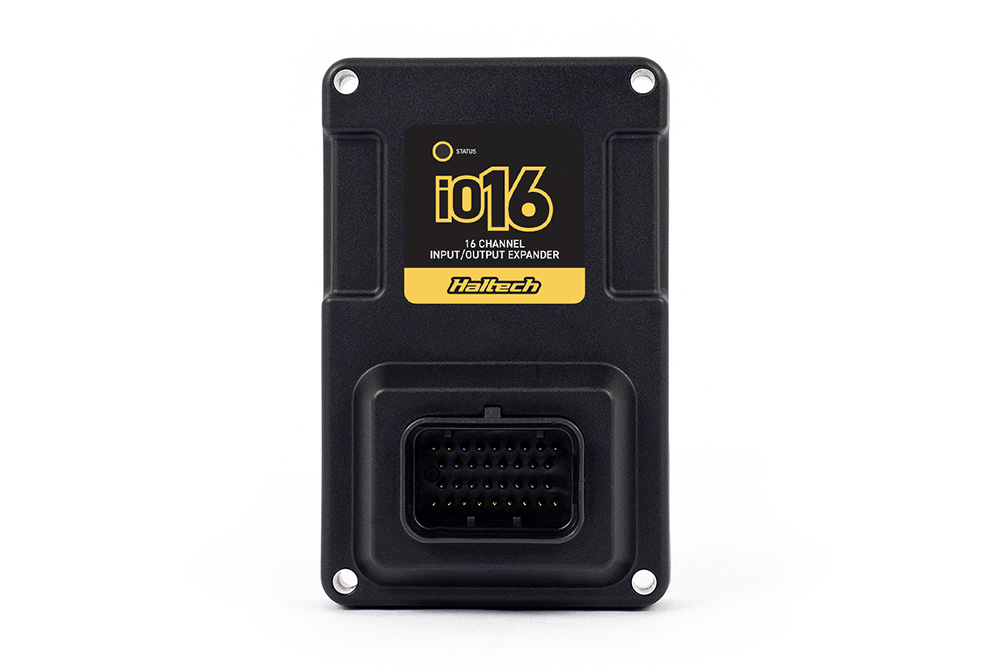

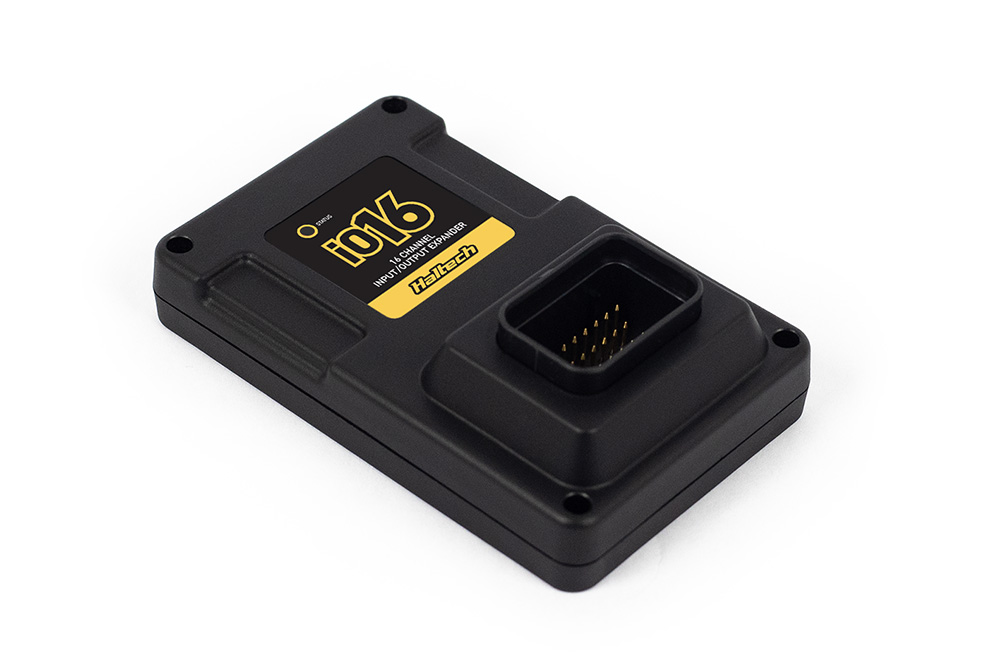

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.
Features
- INPUTS
- 6 x Analogue Voltage Inputs (AVI)
- 0-5V readable range
- Selectable 1k pull-up resistor to 5V
- 4 x Synchronised Pulsed Inputs (SPI)
- Reluctor/Digital
- 0-5V readable range
- Selectable 1k pull-up resistor to 5V
- OUTPUTS
- 6 x Half Bridge Outputs (HBO)
- 8A current (sink/source)
- Capable of 0-100% duty cycle
- 2.2khz switching speed
- NOT suitable for DBW throttle application
- WARNING – When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.
Note: Haltech products are intended for sanctioned off-road/competition use. Ask our team about compliant options for your application.
Shipped Australia-Wide
- Dispatched from within Australia with tracking.
- Same-day dispatch on in-stock orders placed before 11am AEST, Monday–Friday.
- Shipping is calculated at checkout based on size, weight and your delivery address.
- Estimated delivery 2–7 business days depending on your location.
Freight question? Call us on (07) 5619 7869.
– Overview – FeaturesThe Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.FeaturesINPUTS6 x Analogue Voltage Inputs (AVI)- 0-5V readable range – Selectable 1k pull-up resistor to 5V4 x Synchronised Pulsed Inputs (SPI)- Reluctor/Digital – 0-5V readable range – Selectable 1k pull-up resistor to 5VOUTPUTS6 x Half Bridge Outputs (HBO)- 8A current (sink/source) – Capable of 0-100% duty cycle – 2.2khz switching speed – NOT suitable for DBW throttle applicationWARNING – When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.OTHERS- 3 x 5V output (sensor power) – 4 x Sensor groundNote: Any 5V and sensor ground pins can be paired when wiring sensors.Suits: Nexus ECU's/VCU's/DashesElite ECU'sIncludes: IO16 Expander, Mounting Hardware, andQuick Start GuideNotes: Not Compatible with Platinum Series ECU's
