Description

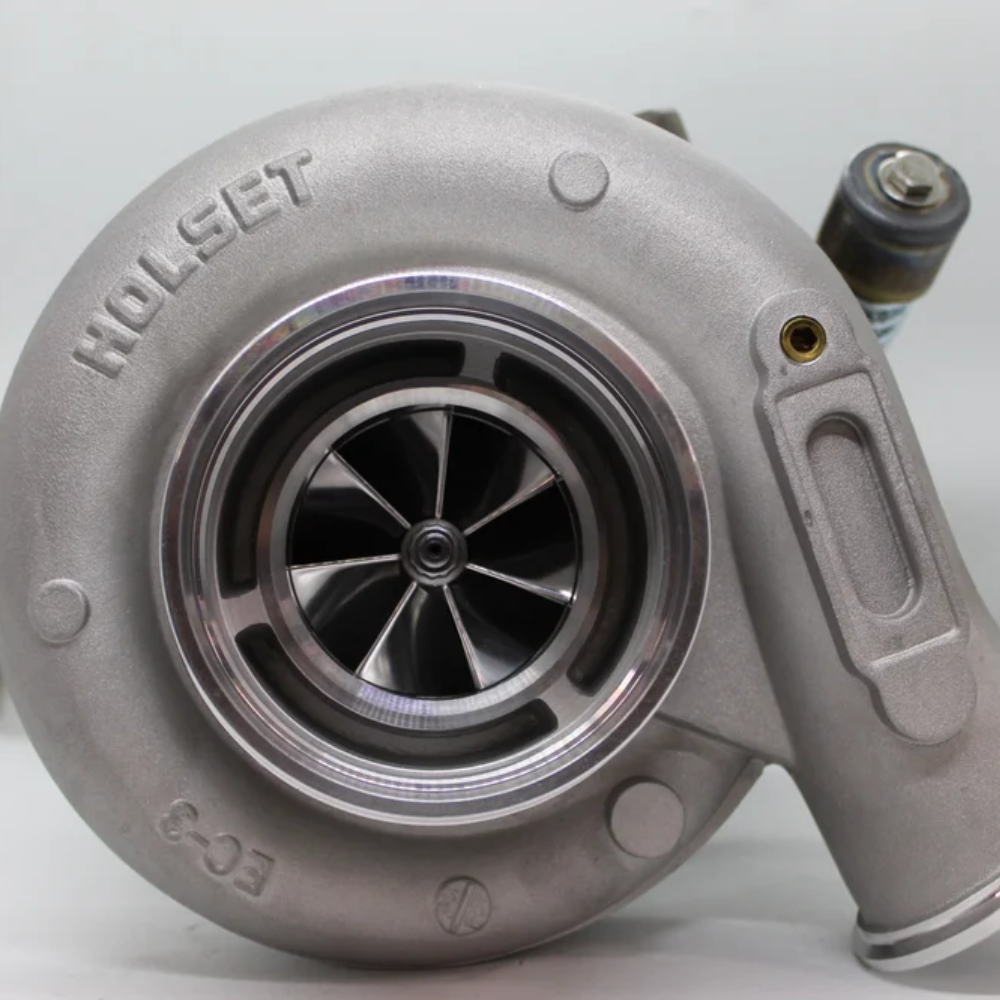

Drop In HX Super 9 HX35
This is a brand new idea brought to reality using the 9cm housing from a hy35 and machining then fabricating the housing to accept a Hx35 cartridge and comp cover.
We have been building the original hx super 9 since November of 2019 and did notice that there was a place to be had for a full drop in 9cm.
It is the only one of its kind just like the rest hx super hero series.
Hand built by me and or my brother. This charger has about a three week build time from point of order.
These chargers do take a tremendous amount of time but the end performance is amazing.
This drop in version of the hx super 9 has a 500 whp capacity and only comes in the 60mm compressor option due the the 60mm compressor being fully capable of 600 whp in the other non drop in super 9 housing.
After doing dyno testing we found that the hx super 9 creates more torque and hp from start of run to end of run then the borg Warner k27 turbo, with the perk of having a 100 hp bump in whp capacity which directly translates to egt control and smoke opacity from stop and go traffic, getting up to speed on a on ramp without creating exhaust smoke or excessive egt’s, or pulling a grade at higher boost levels and torque output values to safely maintain speed up the grade.
Side note, you can build your own k27 by putting a 18cm housing on your stock hx35.
With it being a full drop in unit, exhaust brake equipped trucks get to keep their brake.
And trucks at or below the 500 whp mark do not need to order a down pipe like what has to be done with the non drop in hx super 9 making this a amazing drop in charger.
