Description
When it comes to building a strong and capable TD42 GU Patrol there really is no better option than the HPD PRO top mount kit.
The massive 500x400x76mm core is capable of supporting 220kw+ at the wheels all day every day and will maintain a stable cool inlet temperature allowing peace of mind in even the most arid and rugged conditions.
We have equipped this kit with a HUGE 14” Davis Craig slim line thermo fan pulling over 1000cfm of air volume meaning you know that this intercooler is going to be efficient in maintaining a stable inlet temp, even when you have no natural air movement. We run this thermo fan from a surface mounted temp switch on the intercooler core so that your fan is only working when it needs to, this ensures the maximum performance and reliability you know and expect from a HPD product.

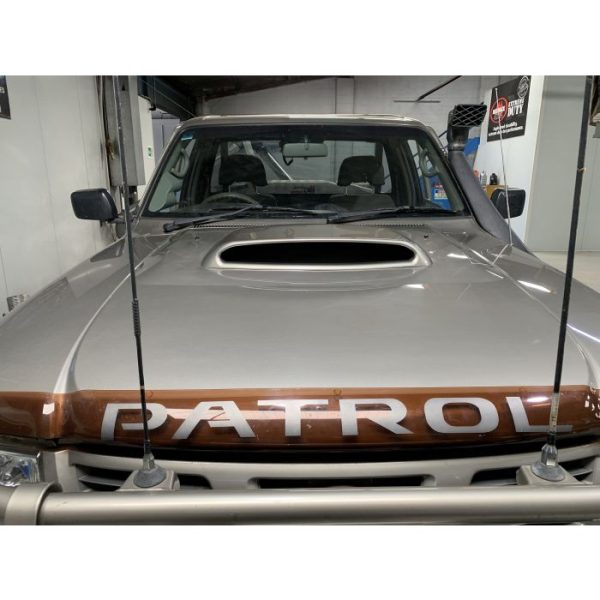

This kit comes with everything needed to do the installation, from all the nuts, bolts and washers right through to the HPD bonnet scoop and powder coated mounting frames meaning a strong and precise fit every time.
The factory TD42 intercooler core size is 230x220x70mm, giving a surface area of 506cm², and a volume of 3542cc.
This is our biggest intercooler, measuring 500x400x76mm, giving a HUGE surface area of 2000mm², and a crazy MASSIVE volume of 15200cc.
That’s almost 4 times more surface area cooling, and an INSANE 430% increase in cooling volume!
This kit is designed for the factory intercooled GU Patrol only and will perfectly cover the existing standard intercooler hole in your bonnet and has all the components to remove the EGR system all together.
This Kit fits the factory intercooled version with the NARROW RADIATOR ONLY!
HPD intercooler kits are designed to give amazing performance, reliability and consistent sustainable power.
By reducing inlet temperatures, you will also reduce engine running temperatures, this provides a safe operating environment and the performance you expect from your Diesel 4wd.

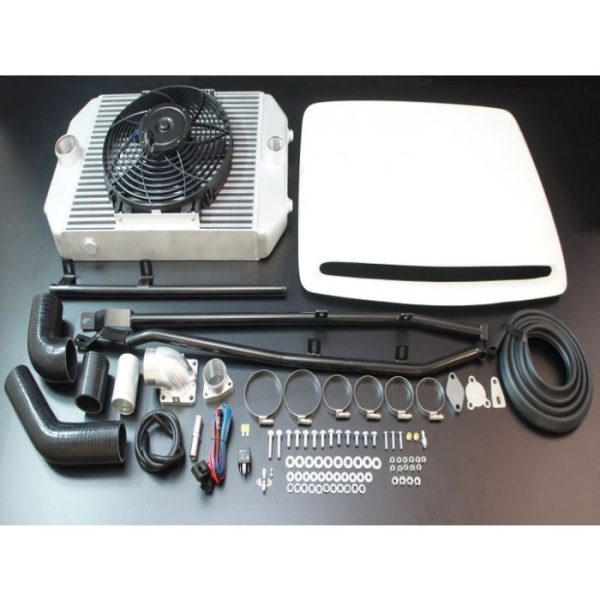

Kit features:

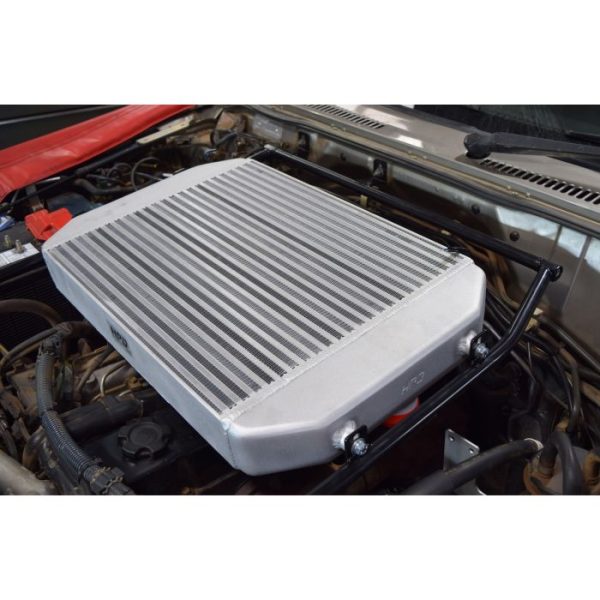

- Bar & Plate Core 500x400x76mm
- 14″ Thermo fan with thermo Switch
- CNC Machined inlet adaptor
- 3 x 1/8 BSP boost reference points
- Extra Large bonnet scoop – Urethane injection moulded

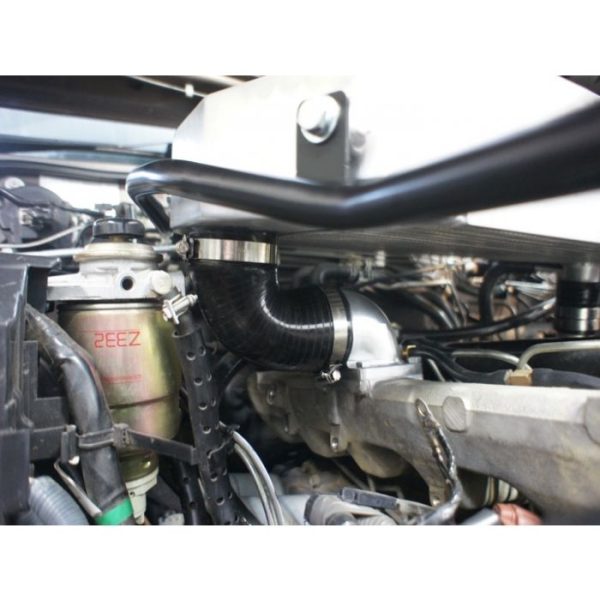

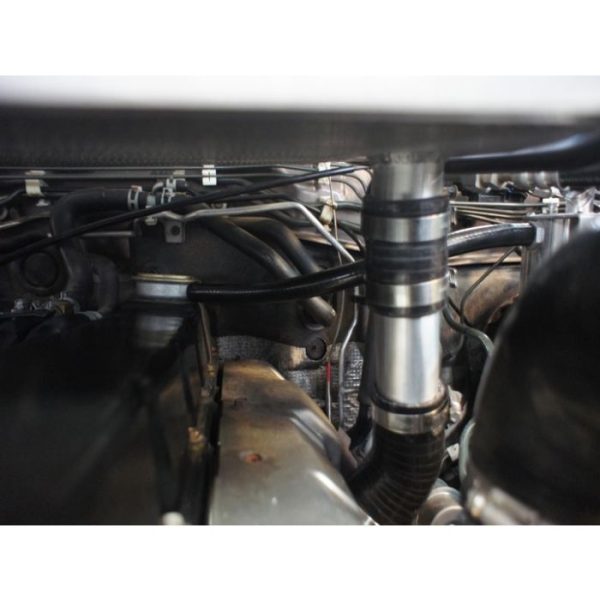

- Hot side piping 51mmø
- Cold side piping 63mmø
- EGR removal kit
- Alloy mandrel bent piping
- Powder coated mounting frames
- Quality silicone hoses
- German load rated hose clamps
- 1 year warranty
