Description
IF YOUR CAR IS AUTO, YOU WILL NEED TO SELECT THE AUTO OPTION – THE FACTORY TRANS COOLER WILL NOT FIT WITH THIS INTERCOOLER

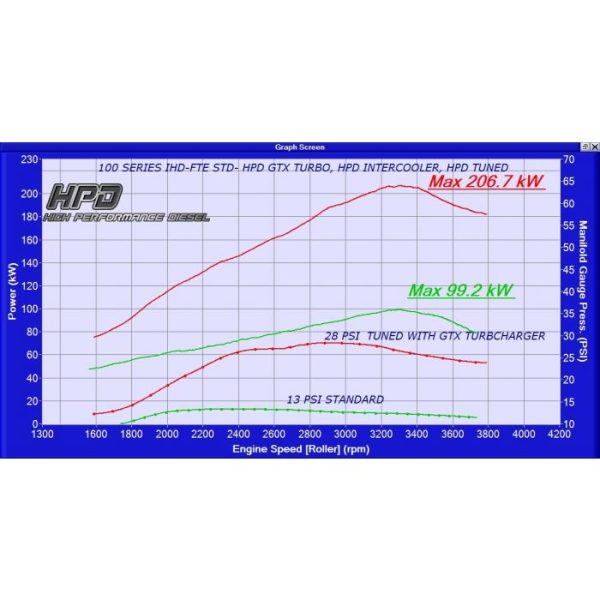

This comprehensive Series 2 1HD-FTE HPD intercooler kit has been designed with shorter pipe work which runs directly from the intercooler to the turbo charger and inlet, due to the direct path we provide a replacement TIG welded aluminium radiator overflow bottle. This intercooler kit can handle power well above 200kw’s at the wheels with HPD’s bolt on Garrett Turbocharger kit [TK-TL-100FTE-GTX2867R]() and supporting modifications. This kit also has improved ground clearance and excellent winch clearance.
The factory Toyota intercooler core size is 270x240x65mm, giving a surface area of 650cm², and a volume of 4212cc.
Our intercooler measures 600x280x76mm, giving a massive surface area of 1680cm², and a huge volume of 12768cc.
That’s over 2.5 times more surface area cooling, and over 3 times the volume of standard!
HPD 4WD intercooler kits are designed to give amazing performance, reliability, consistent and sustainable power. By reducing inlet temperatures, you will also reduce engine running temperatures.
Please note drop down boxes for kit specific to your vehicle.

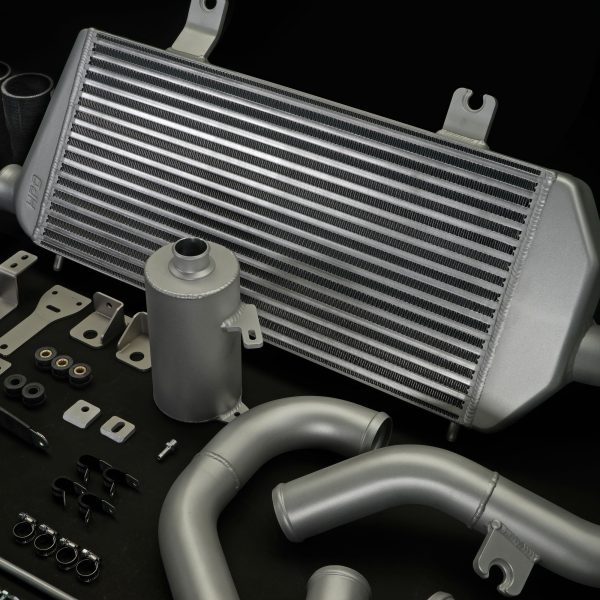

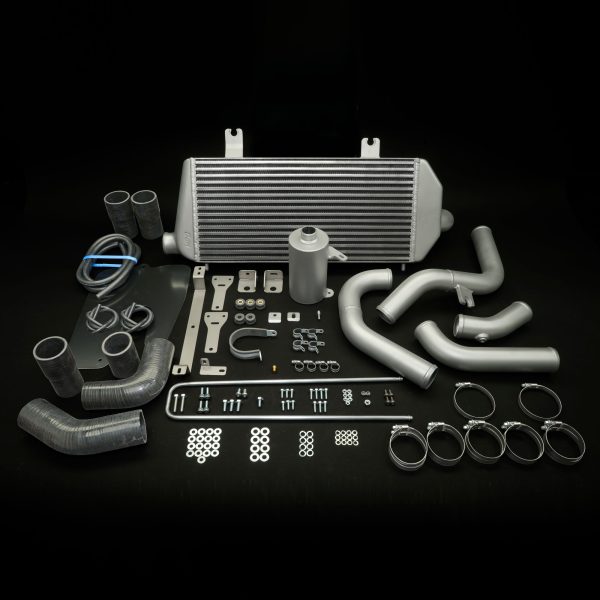

Kit features:
- Bar & Plate Core 600x280x76mm
- Alloy mandrel bent piping
- Laser cut mounting brackets
- Quality silicone hoses
- German load rated clamps

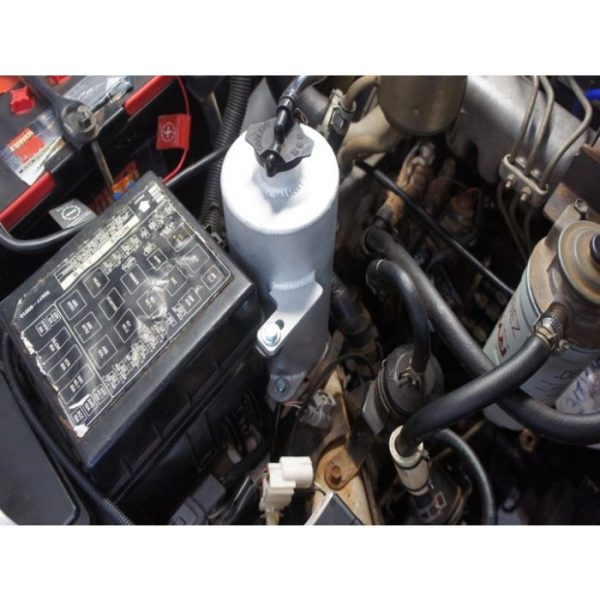

- Replacement radiator overflow tank
- 57mmø intercooler piping
- 63mmø intercooler inlet & outlet
- 1 year warranty
