Description

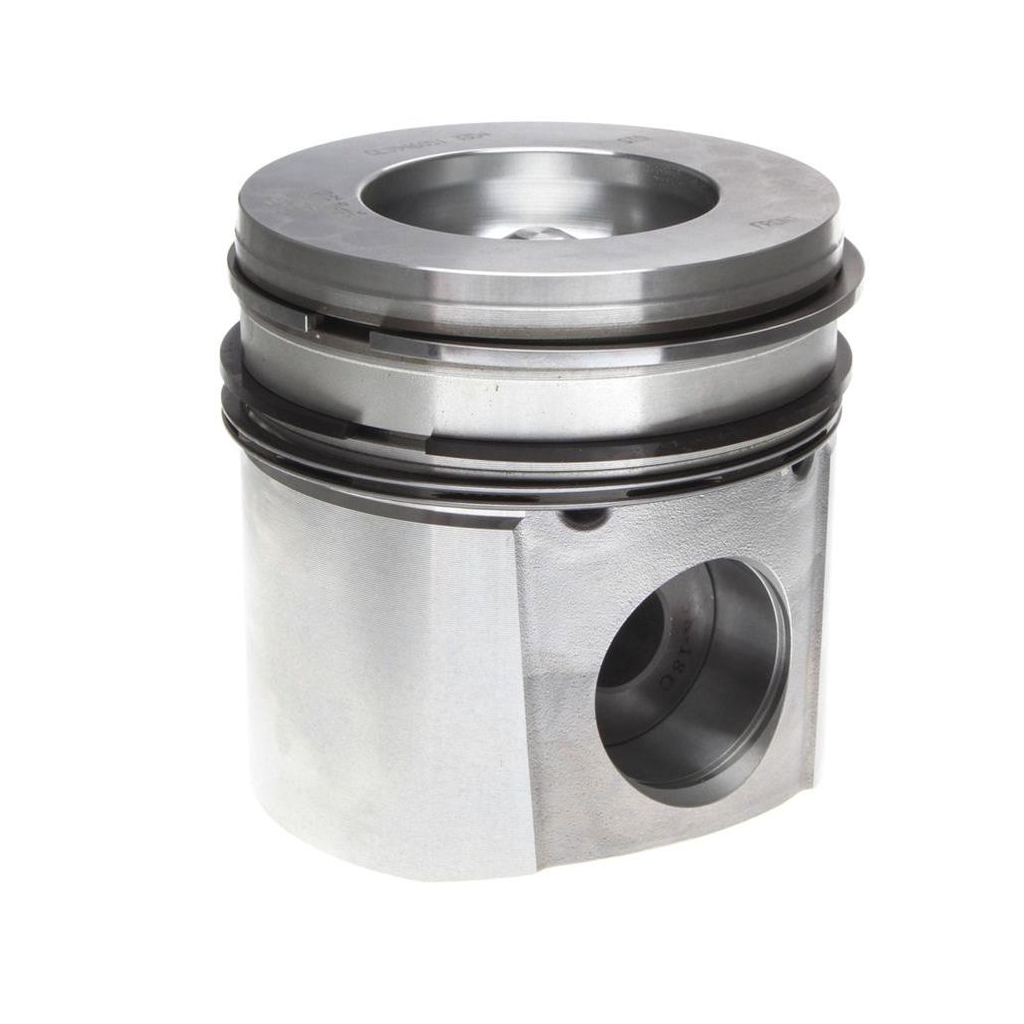

MAHLE | 98.5-02 Dodge 5.9L 24 Valve HO Cummins MAHLE High Output Piston Set (6)
Mahle piston for the 98.5-2002 Dodge 24 Valve VP44 Cummins
Piston Set (6) : Includes rings and piston pin
High Output Piston/Bowl/Compression ratio.
Other part numbers:
Mahle Piston Specifications:
| Bore |
4.017 in
4.016 in
102.0 mm |
| Pin O.D. |
1.575 in
40.0 mm |
| Compression height |
Standard mm |
| Material |
Aluminum |
| Additional Pin Comment |
Floating |
| Combustion Chamber Depth |
0.74 in
18.82 mm |
| Combustion Chamber Diameter |
2.521 in |
| Recess Volume |
48.03cc |
| Casting Number |
102L55A2 |
| Note |
Keystone top ring
Vin 6 non HO |
| Piston Skirt Clearance |
0.005 in |
| Compression Ring Groove |
2.4 mm
3.0 mm |
| Oil Ring Groove Width |
4.0 mm |
Double Duty Diesel is a dealer of MAHLE and is your online source for diesel stock replacement parts. Call us if you need any stock part for your Cummins Diesel.
Shipped Australia-Wide
- Dispatched from within Australia with tracking.
- Same-day dispatch on in-stock orders placed before 11am AEST, Monday–Friday.
- Shipping is calculated at checkout based on size, weight and your delivery address.
- Estimated delivery 2–7 business days depending on your location.
Freight question? Call us on (07) 5619 7869.
MAHLE | 98.5-02 Dodge 5.9L 24 Valve HO Cummins MAHLE High Output Piston Set (6) Mahle piston for the 98.5-2002 Dodge 24 Valve VP44 Cummins Piston Set (6) : Includes rings and piston pin High Output Piston/Bowl/Compression ratio.
